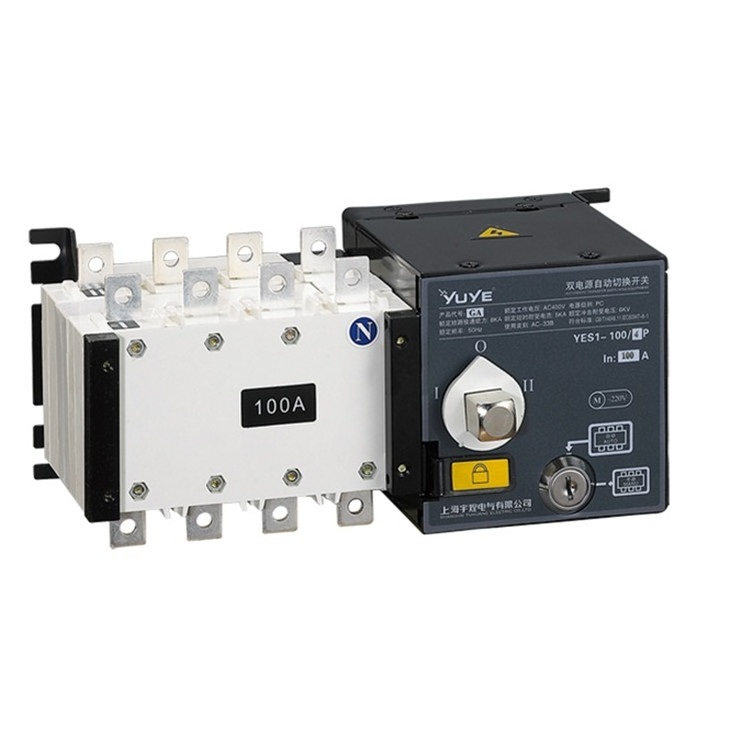

YUYE ATS 400 Amps automatic corridor double power transfer switch for generator

YUYE ATS 400 Amps automatic corridor double power transfer switch for generator

FOB Reference Price: Get Latest Price

≥1 Sets

US $137

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: YUYE

Model Number:: YES1-400GA

Rated Current:: 400A

Product name:: 400 Amp automatic corridor double power transfer switch for generator

Pole:: 3P,4P

contact:: Silver Contact

Color:: White

Function:: I-0-II

Rated voltage:: 220/ 380V

Reated current:: 63A-1250A

Warranty period:: 12-24 months

ODM&OEM:: Accepted

Whether the smart:: YES

Quick Details

Type:: PC

Number of Pole:: 4

Place of Origin:: Zhejiang, China

Brand Name:: YUYE

Model Number:: YES1-400GA

Rated Current:: 400A

Product name:: 400 Amp automatic corridor double power transfer switch for generator

Pole:: 3P,4P

contact:: Silver Contact

Color:: White

Function:: I-0-II

Rated voltage:: 220/ 380V

Reated current:: 63A-1250A

Warranty period:: 12-24 months

ODM&OEM:: Accepted

Whether the smart:: YES

Why Choose Us

Our advantage

One Two Three ELectric Co.,Ltd is the biggest ATS,LOAD BREAKER,CIRCUIT BREAKER manufacturer in China - more than 300 companys make
OEM,ODM order from us

Rich Experience

Our factory was founded in 2004, have a long history in manufacturing and We have export to all over the world till now, The total
Annual sales is about USD17,000,000.We firmly promise to top quality, competitive price, quick delivery and good before/after
sales services. OEM,ODM service is welcomed.

Quality warranty

We have our own factory, engi neer team and a set of equipment&n bsp;for the product test, Beside,we can control the production
(also mean we can control the lead -time) quality of the product very well. We have passed ISO9001:2008 Quality Management System
and CCC, CE

Products Description

YUYE ATS 400 Amps automatic corridor double power transfer switch for generator

YES1 series ATSE is made up of switch body and transfer controller. The switch is driven by electromagnetic coil, so the transfer speed is very fast. The power source of controller takes main power or emergency power AC220V as working voltage.

NA,SA,LA3 type ATSE is integral type. The controller is installed inside of switch body.User only need to connect the main circuit then ATSE could work. It's convenient for users to connect wires.Meanwhile SA type ATSE with generator sarting signal,input wihout power,feedback wihout power. The controller is separated with switch body. User should connect controller with switch body by wires.

N,C,M,Q,S,L is split type. The controller is separated with switch body. User should connect controller with switch body by wires and stop signal output function (when main power fault, the signal will be sent out after 3s time delay.When main power recover,the signal willbe stopped after 3s time delay.)

YUYE Brand ATS Type

NA Type（Integrated type） GA Type

C Type (Slipt Type Plug in) N Type (Wiring Type)

Technology Parameters

YUYE ATS 400 Amps automatic corridor double power transfer switch for generator

Safety protection, cut off quickly

When the voltage outgoing line fluctuates, the power can be cut off quickly (less than 2 seconds), and the overvoltage will not be burned.

Copper Material

All contacts are made of copper for better conductivity and safety.

Insulated terminal block

Insulated terminal block for safer and safer installation

Frame Class	100	250	1600	3200
Rated current(A)	16,20,25,32,40,50,63,80,100	125,160,250,400,630	800,1000,1250,1600	2000,2500,3200

ATS SWITCH FUNCTION

1. Self-input and self-restoring, Self-input without self-restoring, automatic or manual is all depends on you. 2. 2 Pole,3 Pole,4 Pole all you can choose 3. Running parameter could be adjusted 4. Rated voltage of 400V,rated current is from 10Amp to 400Amp 5. City power to City power City power to Generator

Application

YES1 series ATS are mainly used for the state of a load, widely applicable to the fire, postal communication, hospital, hotels, Urban rail transport and high-rise buildings, industrial assembly line, television stations need electricity for the important parts. Main power Emergency Power can be power grids, with Self-excitation generator sets, battery, and so on.

Structure and characteristic

YES1 series automatic transfer switch is composed of switch is composed of switch body and controller. Adopt the electromagnetic driver, the working power of controller transfer is based on the main power and the standby power. AC220V power supply, without additional source. Switch body have an electrical or mechanical switch instruction as an isolation indicator function. NOTE: For more detail information you wanan know, pls feel free contact with me. Thanks!
