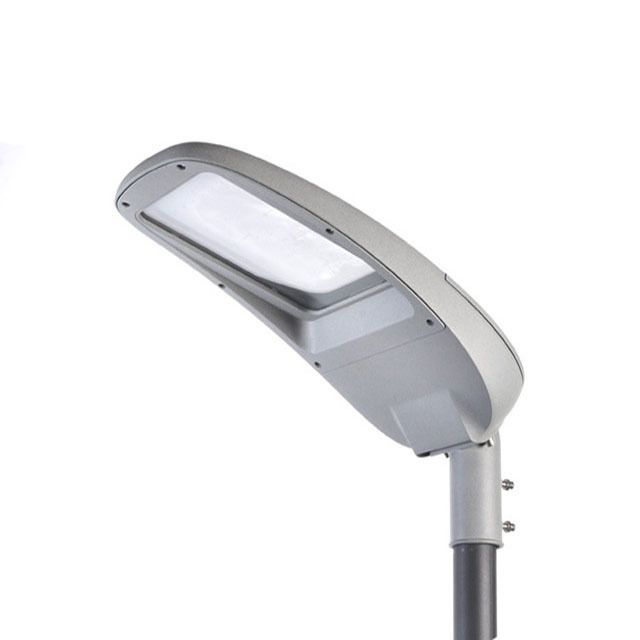

Die Casting Man IP66 smart city street lighting 30W 60W 120W 200W Integrated Led Street Lights street light housing
Die Casting Man IP66 smart city street lighting 30W 60W 120W 200W Integrated Led Street Lights street light housing
Die Casting Man IP66 smart city street lighting 30W 60W 120W 200W Integrated Led Street Lights street light housing
Die Casting Man IP66 smart city street lighting 30W 60W 120W 200W Integrated Led Street Lights street light housing
Die Casting Man IP66 smart city street lighting 30W 60W 120W 200W Integrated Led Street Lights street light housing
Die Casting Man IP66 smart city street lighting 30W 60W 120W 200W Integrated Led Street Lights street light housing
Die Casting Man IP66 smart city street lighting 30W 60W 120W 200W Integrated Led Street Lights street light housing
Die Casting Man IP66 smart city street lighting 30W 60W 120W 200W Integrated Led Street Lights street light housing

Die Casting Man IP66 smart city street lighting 30W 60W 120W 200W Integrated Led Street Lights street light housing

FOB Reference Price: Get Latest Price
≥100 Pieces
US $35.9
≥500 Pieces
US $25.9
≥1000 Pieces
US $15.9
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Zhejiang, China
Brand Name:
Die casting man
Model Number:
YASL-03-200
Beam Angle(°):
150
CRI (Ra>):
70
Input Voltage(V):
90-305
Lamp Luminous Flux(lm):
22000-25000
Working Temperature(℃):
-40-50
Product Weight（kg）:
11.8
Product name:
Led Street Lamp
Wattage:
200W
IP Grade:
IP66
Material:
Die-casting Aluminum Housing
Glass:
Ultra clear tempered glass and PC lens
Net weight:
11.8kg
Install height:
10-14m
Install Pipe Diameter:
60mm
Installing ways:
Horizontal and Vertical ways
Packing size:
915*415*185 mm

Quick Details

Color Temperature(CCT):
4100K (Neutral White)
Warranty(Year):
5-Year
Lighting solutions service:
Lighting and circuitry design
Place of Origin:
Zhejiang, China
Brand Name:
Die casting man
Model Number:
YASL-03-200
Beam Angle(°):
150
CRI (Ra>):
70
Input Voltage(V):
90-305
Lamp Luminous Flux(lm):
22000-25000
Working Temperature(℃):
-40-50
Product Weight（kg）:
11.8
Product name:
Led Street Lamp
Wattage:
200W
IP Grade:
IP66
Material:
Die-casting Aluminum Housing
Glass:
Ultra clear tempered glass and PC lens
Net weight:
11.8kg
Install height:
10-14m
Install Pipe Diameter:
60mm
Installing ways:
Horizontal and Vertical ways
Packing size:
915*415*185 mm
Quality Control
Qualified system and QC control process

We work under ISO 9001 quality system.
We have quality control for material in-coming inspection, on-line process inspection  and finished product quality inspection.

We well control every process to make sure that you products are qualified and under control.



Testing Equipment
Test Equipment in house
We have Photometric black house testing equipment in house
LED parameter in house to test colour tempreture, efficiency, wattage
IP rate testing machine
IK testing machine
salty spray testing machine

Products Description

SMD Street Light YASL-03-200W

lnstalling Ways:
Both Horizontal and Vertical available and adjustable angle 0°to+15°

This series is a high-performance street lighting available in three sizes.
The lunimaire is manufactured from high pressure die-casting aluminum.
It shall have a led efficiency up to 120 lm/w and will be capable of producing. Up to 24000 luminaire lumens at 4000K finished in Grey or black as standard.

IP66 CE ROHS
Product Specification
Product Code
ZHSL-03-200
Input Wattage
200W
Color Temperature
3000-6500K
Luminous Flux
22000-25000lm
Input Voltage
AC90-305V
Frequency Range
50/60Hz
Power Factor
PF≥0.95
color rendering index
Ra≥70
Temperature of Working Condition
-40--50℃
Humidity of Working Condition
20%-90%RH
LED Lifetime
50000h
Protectin Grade
IP66
Installation Pipe Diameter
φ60mm
Installation Height
10-14m
Net Weight
11.8kg
Gross Weight
12.5kg
Packing Size
915*415*185mm
Photometric
Product Size
Vertical -0-15 degree tilting angle
Horizontal - 0-15 degree tilting angle
Accessories you can select

Details Images
Recommend Products

Streetlight Requirements - 5 Years Warranty Product
S.No
Requirement
Requirement
Test Standard
Physical requirements
1
Housing type
Heavy-duty rugged pressure die-cast aluminium alloy
ISO 3522
2
Cover
Tempered Glass
3
Gasket
Silicon Rubber gasket
4
Housing wattage range
30W 40W 50W 60W 80W 100W 150W 200W 220W 240W
5
Socket Options
NEMA socket, Photocell, Smart controller, Shorting Cap
6
Stainless-steel components
Minimum 316L Grade 316L
7
IP Protection
IP66
IEC 60529
8
IK Protection
IK08
IEC 62262
9
Tool free opening
Tool-free access to gear compartment
10
Corrosion tests in artificial atmospheres - Salt spray tests
EN/ISO 9227 - Corrosion tests in artificial atmospheres - Salt spray tests for 1000 hours
EN/ISO 9227
11
Vibration test
ANSI C136.31 - Roadway and Area Lighting Equipment - Luminaire Vibration
ANSI C136.31
LED and Optics
1
LED Make
Osram/CREE
2
LED Type
>2W High power LED with ceramic base (3V - Single chip die) >2w
3
LED driving current
<750mA
4
LED life
>100,000 hours @L95
LM80 and TM21
5
Optics Material
UV PC
6
Lighting distributions
Type I, II, III, IV
Thermal Requirements
1
Product ambient temperature range
-40°C to 55°C
2
Product Storage temperature range
up to 85°C
3
LED Case temperature (Tc)
<75°C @50°C ambient temperature
UL1598
4
Driver Case temperature range
<85°C @50°C ambient temperature
UL1598
Performance
1
Input Voltage Range
110V 120V 220V 270 305VAC - 50/60Hz
IEC 60598-2-3
2
Power Factor
>0.90
IEC 60598-2-3
3
THD
<20%
IEC 60598-2-3
4
Surge Protection
10KV
5
Dimming
1-10V or 1-10V+DALI
6
Appliance class
Class I or Class II
IEC 60598-2-3
7
CCT
3000K/4000K/5700K
ANSI C78.377A
8
CRI
>70Ra
ANSI C78.377A
9
MacAdam
<3 Step Binning
ANSI C78.377A
10
Product life
>100,000 hours @L80
TM28
11
Lumen efficacy As per LM-79
≥ 160lm/W (25°C ambient temperature)
LM-79
12
Lumen efficacy As per LM-82
Not more than 5% difference form LM79 result
LM-82
13
LED module connector and wire joint connectors
UL approved
IEC 60598-2-3
14
Electrical wires between Driver and LED modules and NEMA socket and driver
Must be UL approved
IEC 60598-2-3
