maquina bloquera costo en china
maquina bloquera costo en china
maquina bloquera costo en china
maquina bloquera costo en china
maquina bloquera costo en china
maquina bloquera costo en china
maquina bloquera costo en china
maquina bloquera costo en china

maquina bloquera costo en china

FOB Reference Price: Get Latest Price
≥1 Sets
US $13000
≥3 Sets
US $9999
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brick size:
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm, Other, Customize any shapes and sizes
Place of Origin:
Shandong, China
Brand Name:
FULANG
Voltage:
LOCAL
Dimension(L*W*H):
3750X2300X2500
Weight (KG):
5000 kg
Pallet size:
850x550x20mm
Raw material:
hemp, concrete, cement, sand, slag, flyash, cinder, industrial dust
Model:
QT4-18 QT4-16
Power of host machine:
22.5kw
Product Name:
maquina bloquera costo en china
Worker:
3~5
Molding cycle:
15~20s
Mixer model:
JQ800
Color:
Optional
Area:
1000~2000m²

Quick Details

Type:
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine, Other, Habiterra block machine, concrete interlock block machine
Brick Raw Material:
CONCRETE
Production Capacity (Pieces/8 hours):
5000~20000pcs/8h
Brick size:
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm, Other, Customize any shapes and sizes
Place of Origin:
Shandong, China
Brand Name:
FULANG
Voltage:
LOCAL
Dimension(L*W*H):
3750X2300X2500
Weight (KG):
5000 kg
Pallet size:
850x550x20mm
Raw material:
hemp, concrete, cement, sand, slag, flyash, cinder, industrial dust
Model:
QT4-18 QT4-16
Power of host machine:
22.5kw
Product Name:
maquina bloquera costo en china
Worker:
3~5
Molding cycle:
15~20s
Mixer model:
JQ800
Color:
Optional
Area:
1000~2000m²
Product Overview

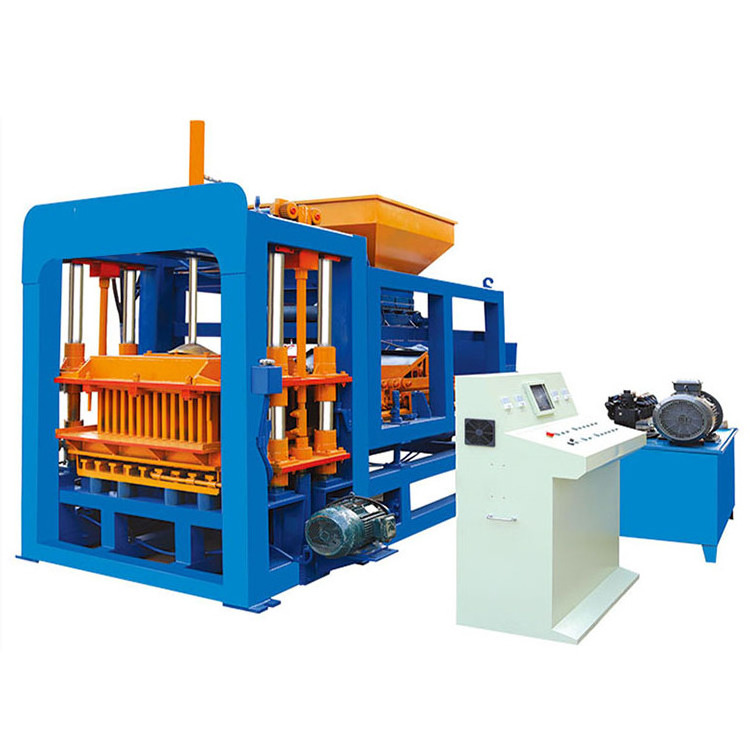

maquina bloquera costo en china

■ Main Features
1.The concrete interlock habiterra blocks making machine feeds material, feed material, produce automatically. It runs without man operating 2.Through synchronized vibration the finished product is consistent throughout. The frequency can be adjusted for different functions. Low frequency is for feeding material and high frequency vibration makes the different material mix properly to insure optimal performance characteristics. 3. Computer control diagnosis system has various warning signal indicators for the operator to insure that the machine is operating at optimal performance and safety. 4. The PLC intelligent control man to machine interface control system is equipped with complete logic control, production program, malfunction diagnosis system and remote control function.
5 . Raw Material: crushed stone, sand, cement, perlite, hemp, slag, gravel, industrial wastes.
■ Technical Parameters
Dimension 3750x2300x2500mm
Host Machine Power:22.5kw
Moulding Period:15-20s
Vibration Force:50-60kn
Weight of Host Machine:5000kg
Function: interlocking blocks, road curb bricks, hourdis blocks, hollow blocks, habiterra blocks
■ Block types
The machine can produce various hollow blocks, hourdis blocks, pavers, hemp blocks, ceiling blocks etc by exchanging molds.
Finished products
Host machine and stacker
Finished products
PRODUCT SPECIFICATIONS
No.
Item
Power (kw)
Automation level
Note
1
Mixer
1.1
Manual
Can be upgraded to automatic
2
Conveyor belt machine
2.2
Manual
Can be upgraded to automatic
3
Block machine
22.5
Automatic
/
4
Brick conveyor machine
0.75
Manual
Can be upgraded to automatic
5
Stacker
3
Automatic
/
6
PLC control cabinet
/
Automatic
/
7
Mold
/
/
/
8
Trolley
/
/
/
Production Capacity
1
Size(LxWxH)
Pcs/Mould
Pcs/Hr
Pcs/8Hr
2
40x10x20cm 8inch
7
1400
11200
3
40x15x20cm 6inch
5
1000
8000
4
40x20x20cm 4inch
4
800
6400
5
230x110x70mm Solid
20
4000
32000
6
S paver 22.5x11.25x6cm
12
2400
19200
7
H paver 20x10x6cm
14
2800
22400
PRODUCT CONFIGURATION
Siemens high quality motor
Japan Yuken solenoid valve
Siemens control system
SALES AND SERVICE NETWORK
Successful Project
Project in Kenya
Project in Uganda
Project in Kenya
SIMILAR PRODUCTS
Our Company
Professional brick making machinery manufacturer in China
FULANG Machinery Co. Ltd is a Chinese manufacturer of dedicated machinery for construction blocks and panels. Our company offers complete production lines for premium building components such as the autoclaved sand -lime brick, autoclaved aerated concrete brick, and autoclaved aerated concern autoclaved lightweight concrete panel. Additional, we provide various types of pressure vessels and block-making machines. By choosing FULANG,c ustomers can enjoy professional benefits with our dedicated services for design, install, layout planning, technology transfer,and production guidance.
Welcome to visit our factory.
Welcome to visit our factory before place order, and you will have a better understanding for our factory, service and strength. With 20 years development , our products have been sold to more than 100 countries. Many clients come to our factory every year .Till now, about 1200 customers have visited our factory. In addition, we have engineers stay abroad to help you install machines, maintain machines and train your workers at your side.
