* Material: Polyolefin
* Shrink ratio: 2:1, 3:1
* Operating range : -55℃--+125℃
* Flammability : VW-1
* Excellent electrical, physical and chemical properties.
* UL, RoHS and REACH compliant.
- Product Details
- {{item.text}}
Quick Details
-
Rated Voltage:
-
300V 600V
-
Tensile Strength:
-
≥10.4MPa
-
Product Name:
-

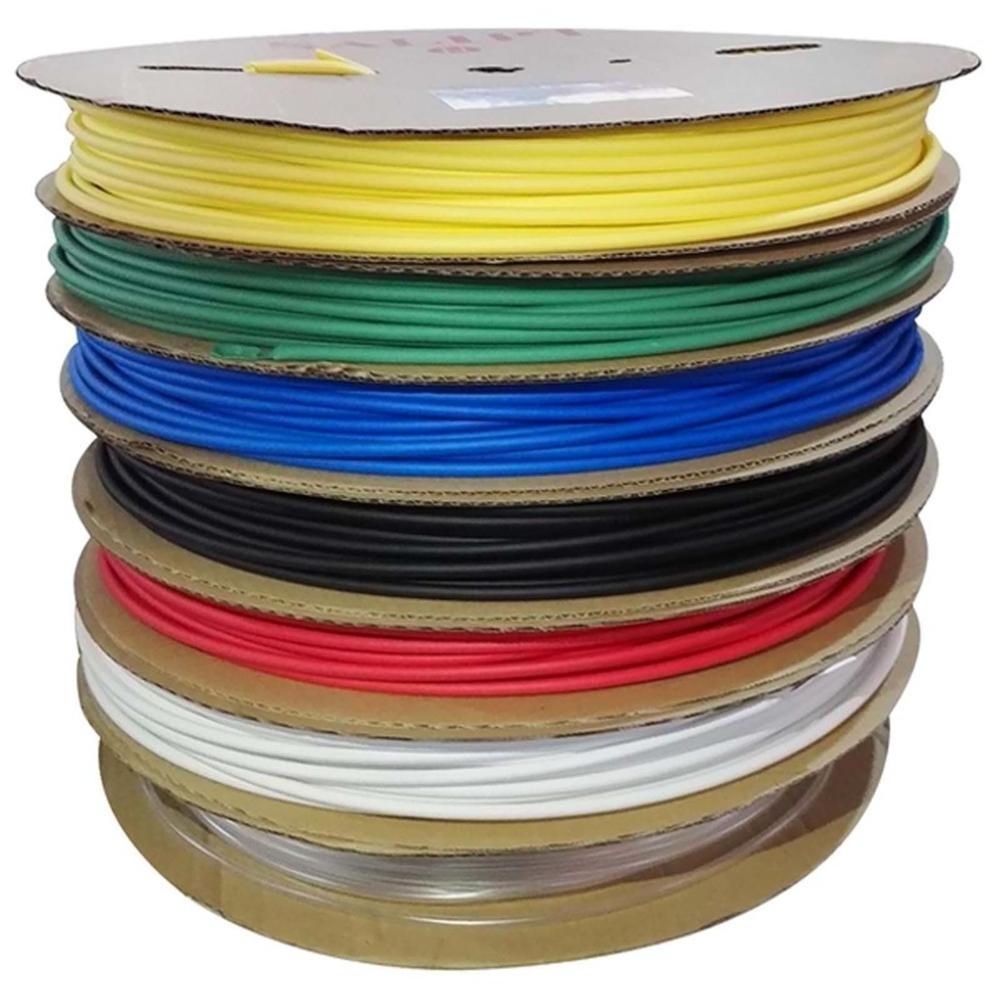

Heat Shrink Tube
-
Color:
-
Red, Blue, Yellow, White, Black
-
Shrink Ratio:
-
2:1 3:1
-
Usage:
-
Insulation Protection
-
Certification:
-
ISO
-
Feature:
-
Durable
-
Package:
-
Plastic Bag
Quick Details
-
Place of Origin:
-
Shanghai, China, Shanghai, China(mainland)
-
Brand Name:
-
Hampoolgroup
-
Model Number:
-
HP-HST, HP-HST
-
Rated Voltage:
-
300V 600V
-
Tensile Strength:
-
≥10.4MPa
-
Product Name:
-
Heat Shrink Tube
-
Color:
-
Red, Blue, Yellow, White, Black
-
Shrink Ratio:
-
2:1 3:1
-
Usage:
-
Insulation Protection
-
Certification:
-
ISO
-
Feature:
-
Durable
-
Package:
-
Plastic Bag
Product Description
Specification
|
Property
|
Requirement
|
Test method
|
Typical data
|
|
Longitudinal shrinkage
|
≤10%
|
ASTM D 2671
|
≤5%
|
|
Tensile strength
|
10.4 MPa min.
|
ASTM D 638
|
≥12 MPa
|
|
Elongation at break
|
200% min
|
ASTM D 638
|
≥400%
|
|
Tensile strength after ageing (175℃，168hrs)
|
7.28 MPa min.
|
ASTM D 638
|
≥10.4 MPa
|
|
Elongation after ageing (175℃，168hrs)
|
100% min.
|
ASTM D 638
|
≥300%
|
|
Heat shock(250℃，4hrs)
|
No crack
|
ASTM D 2671
|
No crack
|
|
Low-temperature flexibility(-55℃，4hrs)
|
No crack
|
ASTM D 2671
|
No crack
|
|
Dielectric voltage withstand
|
2500V,60sec, no breakdown
|
ASTM D 2671
|
No breakdown
|
|
Dielectric strength
|
19.7 KV/mm min.
|
ASTM D 2671
|
≥25 KV/mm
|
Product Details
* Material: Polyolefin
* Shrink ratio: 2:1, 3:1
* Operating range : -55℃--+125℃
* Flammability : VW-1
* Excellent electrical, physical and chemical properties.
* UL, RoHS and REACH compliant.
Application
HP-HST is flexible, flame-retardant polyolefin heat shrinkable tubing. It is low smoke generating, abrasion resistant and in
case of burning products no dioxin. HP-HST has excellent electrical and physical properties, including excellent acid
fastness and corrosion resistance. HP-HST is suitable for insulation use in automotive electronics, terminal lugs, small
electrical parts, lead wires of toy motors and transformers etc. This product is UL listed under file number E361230.
case of burning products no dioxin. HP-HST has excellent electrical and physical properties, including excellent acid
fastness and corrosion resistance. HP-HST is suitable for insulation use in automotive electronics, terminal lugs, small
electrical parts, lead wires of toy motors and transformers etc. This product is UL listed under file number E361230.
