Quick Details
-
Knitting Method:
-
Single
-
Computerized:
-
Yes
-
Gauge:
-
12 GG, 14 GG, 16 GG, 18GG
-
Knitting width:
-
80inch
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HAOYUE TEXTILE INDUSTRY
-
Power:
-
1000 W
-
Weight:
-
800 KG
-
Dimension(L*W*H):
-
3800*900*1700mm
-
Product Name:
-
Collar&Sweater knitting machine
-
Knitting function:
-
Fully jacquard
-
Knitting System:
-
Single carriage/single system
-
knitting speed:
-
1.6M/S Max
-
Certificate:
-
CE Certificate
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Free spare parts
Quick Details
-
Type:
-
jacquard
-
Production Capacity:
-
Max1.6m/S; 400-600pcs/day/carriage
-
Knitting Style:
-
Weft
-
Knitting Method:
-
Single
-
Computerized:
-
Yes
-
Gauge:
-
12 GG, 14 GG, 16 GG, 18GG
-
Knitting width:
-
80inch
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HAOYUE TEXTILE INDUSTRY
-
Power:
-
1000 W
-
Weight:
-
800 KG
-
Dimension(L*W*H):
-
3800*900*1700mm
-
Product Name:
-
Collar&Sweater knitting machine
-
Knitting function:
-
Fully jacquard
-
Knitting System:
-
Single carriage/single system
-
knitting speed:
-
1.6M/S Max
-
Certificate:
-
CE Certificate
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Free spare parts

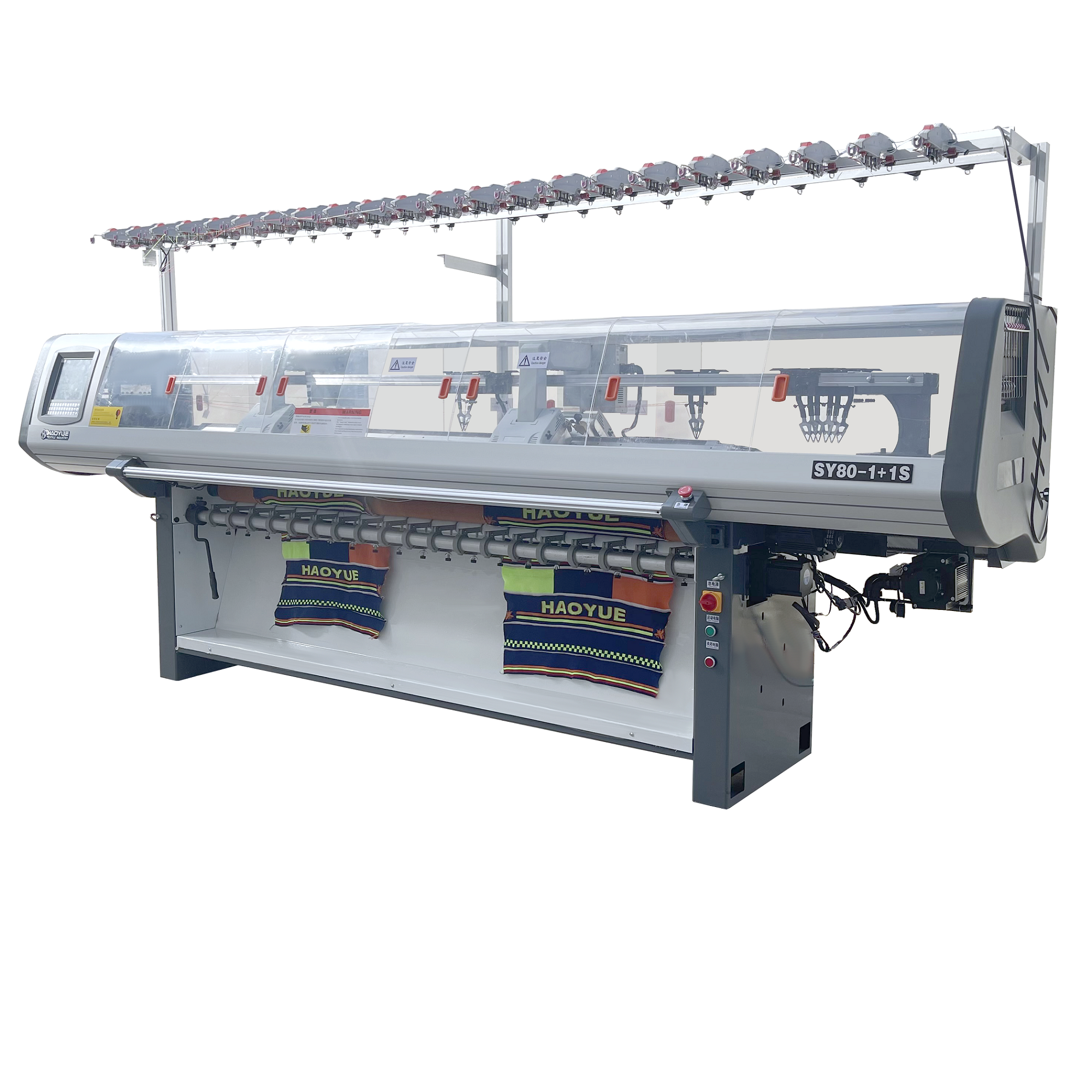

Fully jacquard Collar flat knitting machine with 80inch double carriages 14gauge
NINGBO HAOYUE Collar&Sweater knitting machine:
1. Multifunctional, Can produce Collar and Sweater.
2. Factory Price,High cost-effectiveness .
3. head separation efficiency doubled, head combination can produce long woven fabric .
4. Suitable for collar ,rib ,cuff, sweater.
5. Fully jacquard machine knitting collars photo:
|
PRODUCT SHOW |
|
DETAIL SHOW |
|
|
|
|
Collar&Sweater Show |
| PRODUCT FEATURES |
| PRODUCT SPECIFICATION, GAUGE AND TECHNICAL PARAMETER | ||
| Model | SY52-1S, SY60-1S | SY80-1+1S, SY100-1+1S |
| Gauge |
12G,14G,16G,18G |
12G,14G,16G,18G |
| Knitting width |
52inch, 60inch |
80inch, 100inch |
| Knitting function |
Full jacquard with transfer , can produce collar and sweater |
|
| Knitting system |
Single carriage/ Single system 8 needle jack full jacquard selection cams |
Double carriage/ 1+1 system 8 needle jack full jacquard selection cams |
|
Knitting speed |
Controlled by servo-motor with 32 sections optional, max speed reach 1.6m/s |
|
|
Needle-bed |
S egment knife needle bed or common needle bed option available when buying, with 8 sets of solenoid needle selection structure |
|
|
Racking |
Controlled by servo motor racking within 2 inches and with fine adjusting function |
|
|
Stitch density |
Controlled by stepping motor, 32 section stitch select-able adjustable scope supported by subdivision technology: 0-650, the stitch of the knitwear can be accurately controlled. |
|
|
Take-down system |
Programmed instruction controlled by stepping motor, 32levels selection adjustable range:0-100. Machine with High roller and Sub roller. |
|
|
Color-changing system |
1 sets of 6 feeders on both side of the 3 feeders rail(single carriage).
2 sets of 6 feeders on both side of the 3 feeders rail.(double carriage) |
|
|
Protection system |
The machine will automatically alarm if yarn-breaking, knots, floating yarn, rewind, end of knitting, fail of racking, needle breakage, error programming occur, also set up the safety auto-lock protect device. | |
|
Control system |
1. LCD industrial display, Can display various parameters, which can be adjustable during operation.
2. USB memory interface,System memory 2G. 3. Free design system is visual and easy to understand and software upgrade free of charge. 4. Support multi-language operation as Chinese and English, Spanish, Russian etc. |
|
|
Network function |
Has network interface,enable remote-monitoring via network,and connecting with ERP system. | |
| Power | Single-phase 220V/three-phase 380V,adopt advanced CMOS technology, having memorizing function at power shock stop. | |
| N.W. | 600-950KGS | |
