- Polyethylene material
- Good anti-corrosion ability, strong and durable
- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
150 KG
-
Dimension(L*W*H):
-
1850*800*780mm
-
Marketing Type:
-
New Product
-
Core Components:
-
Other
-
Product name:
-
High Precison Corn Fertilizer Seeder
-
Working depth:
-
6-8cm
-
Capacity:
-
86L
-
Matched power:
-
10-100
-
Seeding depth:
-
30-50mm
-
Working rows:
-
2-6
-
Color:
-
Customer Request
-
MOQ:
-
1set
-
Advantage:
-
Easy Operation High Efficiency
-
Suitable for:
-
Small Farms
Quick Details
-
Number of Rows:
-
2, 3, 4, 5, 6
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Lermda
-
Weight:
-
150 KG
-
Dimension(L*W*H):
-
1850*800*780mm
-
Marketing Type:
-
New Product
-
Core Components:
-
Other
-
Product name:
-
High Precison Corn Fertilizer Seeder
-
Working depth:
-
6-8cm
-
Capacity:
-
86L
-
Matched power:
-
10-100
-
Seeding depth:
-
30-50mm
-
Working rows:
-
2-6
-
Color:
-
Customer Request
-
MOQ:
-
1set
-
Advantage:
-
Easy Operation High Efficiency
-
Suitable for:
-
Small Farms

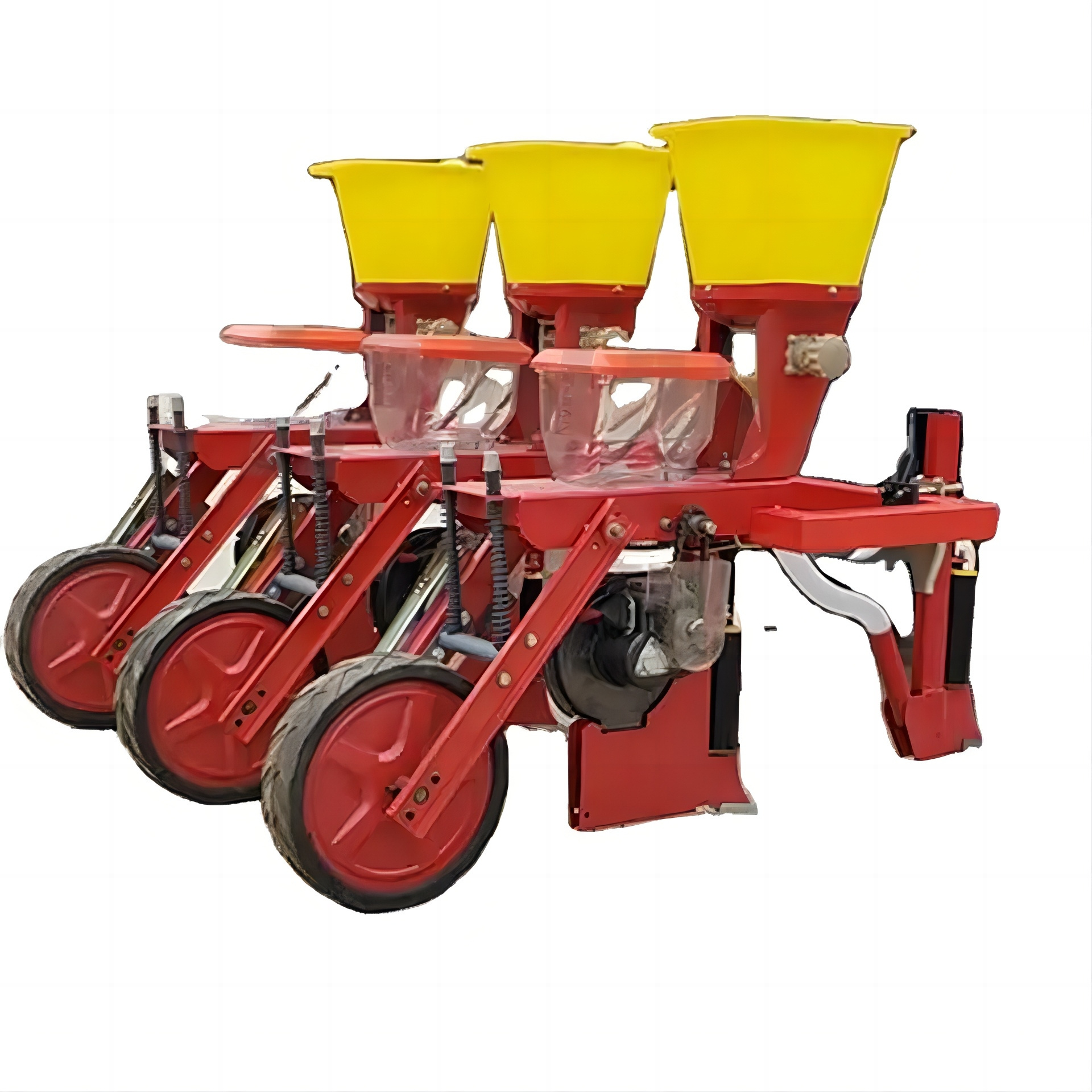

Corn Precision Fertilizer Planter Seeder
This series of corn fertilization seeder can be mounted with 15-100 hp tractors.It is applicable to the plains and hilly areas of corn and soybeans seed and fertilizer.It has advantages of favorable universality,wide range of applying,even seeding and so on.
- Sowing by weight, no damage to seeds.
- High precise seeds clearance, evenly sowing stable, seeds saving and less thin out seeding, Adopts "zero speed", equal potential energy, low position feeding sturdy, seeding spacing is even, Mainly for sowing corn, can also sowing soybeans, - - It has multifunction, the machine can spread the basis fertilizer during planting, and can complete the suppression at the same time.
Main Feature
1) Feed outlet is driven by gear, There is an anti-reverse mechanism at the inside of driving gear to avoid troubles arising from machine reverse turning.
2) May adjust rows spacing by adjusting different driven gears.
3) Can pick out the whole disc cover when clear the seeds.
4) Seeds clearance is convenient and thoroughly
5) The machine have the characteristics of narrow trenching\moisture, and the fertilizers front side spreading is suitable the machine can match a wide range of tractors.
----------Product Introduction---------
1.Fertilizer Box
2.
Opener a
nd stubble wheel
- Achieve no-tillage sowing
- Eliminate weeds and prevent entanglement
3.Spinner
Evenly mix seeds and fertilizer
Plant spacing regulator
- Chain drive
- Total of 6 levels to satisfy different needs,
easy to use
4.Wheel
5. Spring suspension
- Automatic adjustment, the seeding can be kept even when the ground is uneven
6. Seed Box
- Resilient seed box, not easy to break, longer service life
|
MODEL
|
2BYSF-3
|
2BYSF-4
|
2BYSF-5
|
2BYSF-6
|
|||
|
Overall dimension(mm)
|
1440*1750*980
|
1440*2150*980
|
1440*2750*980
|
1440*3300*980
|
|||
|
Rows
|
3
|
4
|
5
|
6
|
|||
|
Row Spacing(mm)
|
428-600
|
428-570
|
428-540
|
428-510
|
|||
|
Plant spacing(mm)
|
140/173/226/280
|
|
|
|
|||
|
Ditching Depth(mm)
|
60-80
|
|
|
|
|||
|
Fertilization Depth(mm)
|
60-80
|
|
|
|
|||
|
Sowing Depth(mm)
|
30-50
|
|
|
|
|||
|
Capacity of Fertilization Tank(L)
|
68
|
86
|
86
|
86
|
|||
|
Capacity of seed box(L)
|
8.5*3
|
8.5*4
|
8.5*5
|
8.5*6
|
|||
|
Weight(KG)
|
200
|
295
|
360
|
430
|
|||
|
Linkage
|
3 point mounted
|
|
|
|
|||
|
Matched Power(HP)
|
15-25
|
25-40
|
40-50
|
Above 50
|
|||
---------Customized Color &ODM/OEM--------
We absolutely accept ODM/OEM order because we are factory you can require paint color for the machinery.
