Quick Details
-
Brand Name:
-
dongjie
-
Dimension(L*W*H):
-
325x325x1000
-
Weight:
-
0.7
-
Warranty:
-
3 months
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Type:
-
Dust filter cartridge
-
Colour:
-
As picture
-
Size:
-
Standard
-
Sample:
-
Available
-
Payment Term:
-
L/C,T/T , Western Union
-
Package:
-
wrapped by waterproof paper in panels,in pallets ,in pieces:in carton
-
Certification:
-
9001
Quick Details
-
Efficiency:
-
99%, High efficiency
-
Porosity:
-
5um
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
dongjie
-
Dimension(L*W*H):
-
325x325x1000
-
Weight:
-
0.7
-
Warranty:
-
3 months
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Type:
-
Dust filter cartridge
-
Colour:
-
As picture
-
Size:
-
Standard
-
Sample:
-
Available
-
Payment Term:
-
L/C,T/T , Western Union
-
Package:
-
wrapped by waterproof paper in panels,in pallets ,in pieces:in carton
-
Certification:
-
9001

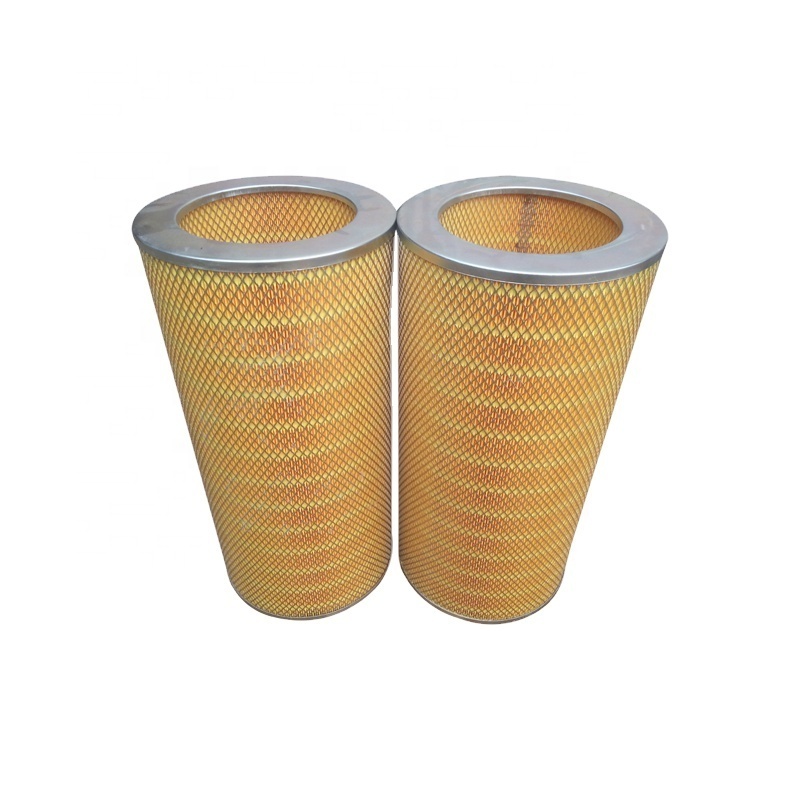

hepa filter cellulose air filter cartridge for air filters
Specification
|
MODEL |
OD ( mm ) |
ID ( mm ) |
Height ( mm ) |
Filter area (m2 ) |
Flow ( m³/h ) |
Operating Temperature (℃) |
Filt Efficiency ( 2µm ) |
|
DJ-3260 |
320 |
220 |
660 |
10~25 |
600~1250 |
-30~105 |
99.99% |
|
DJ-3265 |
320 |
220 |
650 |
||||
|
DJ-3266 |
320 |
220 |
660 |
||||
|
DJ-3290 |
320 |
220 |
900 |
||||
|
DJ-3560 |
350 |
240 |
600 |
||||
|
DJ-3565 |
350 |
240 |
650 |
||||
|
DJ-3566 |
350 |
240 |
660 |
||||
|
DJ-3590 |
350 |
240 |
900 |
||||
|
DJ-4088 |
408 |
292 |
880 |
18~35 |
1050~2120 |
-30~105 |
99.99% |
|
DJ-4467 |
440 |
360 |
675 |
Feature
1. The dongjie cartridge filter material imported from the hyperfine wood pulp paper .
2. 1-5 um filtration precision.
3. The filtration efficiency is 99.9%.
4. Electro-galvanized end caps, not rust.5. Rubber seal.
5. Electro-galvanized diamond mesh central skeleton, high opening rate.
7. Professional sealing obturator elastic neoprene.
8. Easy installation and maintenance, long service life.
|
Model |
O.D |
I.D |
Length |
Filtration surface(m2) |
|
SFF/P3266 |
Φ324mm |
Φ213mm |
660mm |
9.4m2 |
|
SFF/P3566 |
Φ352mm |
Φ241mm |
660mm |
9.4m2 |
|
SFF/P3275 |
Φ324mm |
Φ213mm |
750mm |
10.7m2 |
|
SFF/P3288 |
Φ324mm |
Φ213mm |
880mm |
12.5m2 |
|
SFF/P3290 |
Φ324mm |
Φ213mm |
915mm |
13.0m2 |
Application
Widely used in gas turbine,compressors,sand blasting tobacco,ash,dust and other industries of the filter.
