Quick Details
-
Max speed:
-
6000rpm
-
Max RCF:
-
5600g
-
Certificate:
-
CE ISO
-
Max capacity:
-
4*500ml
-
Weight:
-
52kg
-
Dimension(L*W*H):
-
602*502*412mm
-
Display:
-
LCD
-
Capacity:
-
15ml 50ml 100ml 500ml
-
Warranty:
-
2 Years
-
Material:
-
Stainless Steel
Quick Details
-
Brand Name:
-
Xiangxin
-
Model Number:
-
TD6
-
Place of Origin:
-
Hunan, China
-
Max speed:
-
6000rpm
-
Max RCF:
-
5600g
-
Certificate:
-
CE ISO
-
Max capacity:
-
4*500ml
-
Weight:
-
52kg
-
Dimension(L*W*H):
-
602*502*412mm
-
Display:
-
LCD
-
Capacity:
-
15ml 50ml 100ml 500ml
-
Warranty:
-
2 Years
-
Material:
-
Stainless Steel

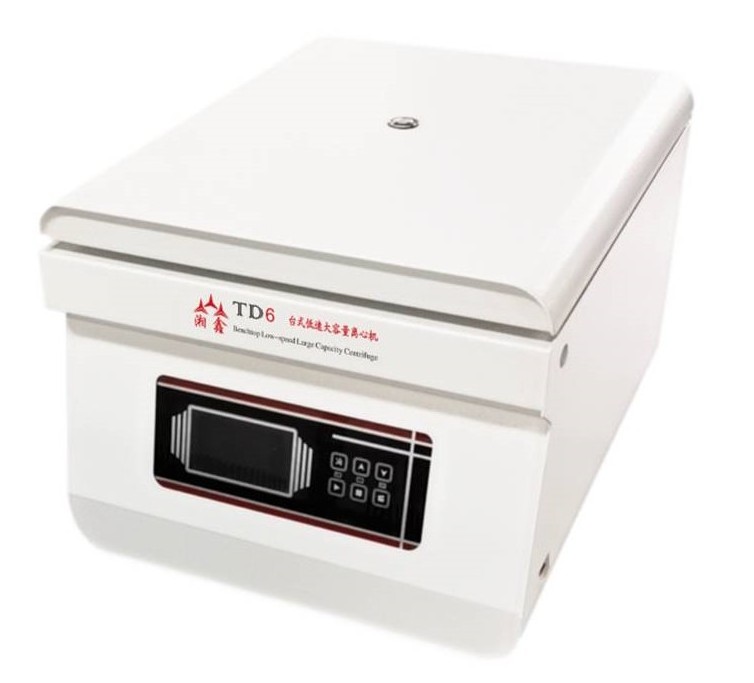

6000rpm Swing rotor low speed centrifuge
TD6 Low speed centrifuge
Instrument characteristics
1. The shell is made of all steel, with built-in protective steel sleeve. It is simple and compact with low noise.
2. With advanced CPU control system, microcontroller can control speed, time and relative centrifugal force more accurately.
3. Maintenance-free DC brushless/variable frequency motor, speed range 100-6000rpm
4. Equipped with door cover protection to ensure safe operation of the instrument
5. It is suitable for the separation of radioimmunology, biochemistry and blood products.
Technical parameter
|
Model |
TD6 |
||
|
Max speed |
6000r/min |
||
|
Speed accuracy |
± 10rpm |
||
|
Max RCF |
5600*g |
||
|
No.1 angle rotor |
12*10/15ml |
6000r/min |
5600*g |
|
No.2 swing rotor |
24*10/15ml |
4200r/min |
3120*g |
|
No.3 swing rotor |
108*5ml |
4000r/min |
4200*g |
|
No.4 swing rotor |
16*10/15ml |
5000r/min |
4100*g |
|
No.5 swing rotor |
8*50ml |
4000r/min |
3120*g |
|
No.6 swing rotor |
8*100ml |
4000r/min |
3120*g |
|
No.7 swing rotor |
4*500ml |
4000r/min |
3600*g |
|
No.8 microplate |
2*2*96hole |
4000r/min |
2300*g |
|
Timing range |
0~99min |
||
|
Noise |
≤ 60dB(A) |
||
|
Power supply |
AC220V&110V 50Hz 10A |
||
|
Dimensions |
630*500*425mm |
||
|
Weight |
52kg |
||
