Quick Details
-
EINECS No.:
-
other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
PONY RESIN
-
Type:
-
Two Component Liquid Coating
-
MOQ:
-
1 KG
-
MSDS/SDS:
-
VOC Free
-
Private Labels:
-
OEM&ODM
-
Super Gloss:
-
UV Resistance,Scratches,Satin,heat resistance
-
Mix Ratio:
-
A:B=5:1
-
Bartop Coating:
-
Kitechen Top Coat Coating
-
100% Solid:
-
No odor
Quick Details
-
CAS No.:
-
61788-97-4
-
Other Names:
-
Epoxy Resin and Hardener
-
MF:
-
(C11H12O3)n
-
EINECS No.:
-
other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
PONY RESIN
-
Type:
-
Two Component Liquid Coating
-
MOQ:
-
1 KG
-
MSDS/SDS:
-
VOC Free
-
Private Labels:
-
OEM&ODM
-
Super Gloss:
-
UV Resistance,Scratches,Satin,heat resistance
-
Mix Ratio:
-
A:B=5:1
-
Bartop Coating:
-
Kitechen Top Coat Coating
-
100% Solid:
-
No odor
Related Products
Products Description
|
Name
|
Electronic Components Epoxy Resin
|
|
Material
|
Epoxy Resin and Hardener
|
|
Epoxy Resin and Hardener
|
Effective Resin Chemistries for the Protection of Electronic Components
|
|
Color
|
Transparent/White/Black
|
|
Advantage
|
Great bonding capability, fast wet out, good flexibility, low odor
|
|
Delivery Time
|
10-20 Days
|
Xiaoma

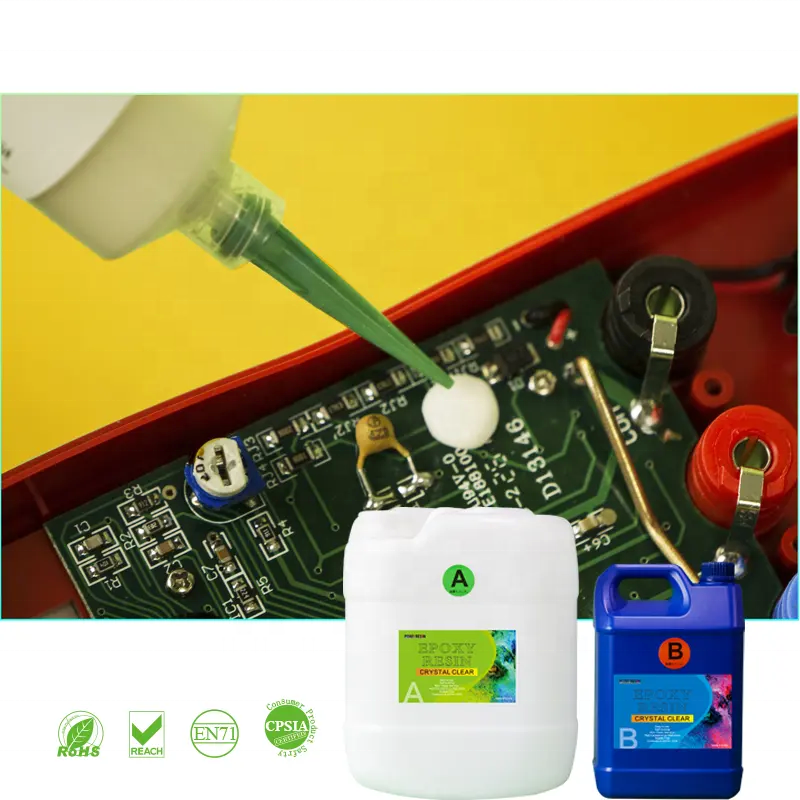

Electronic potting
AB resinis two-component solvent-free type flame retardant room temperature curing epoxy potting adhesive with high thermal conductivity, cured at room or heat temperature.
It’s designed for pouring and protecting Auto mobile parts and supply physical strength to the elements, where excellent properties and exceptional thermal shock at elevated temperatures are required.
Electronic potting compound is a kind of two components(5:1 mixing ratio) addition cure Epoxy with the characteristics of heat-conducting , low viscosity , inherent flame resistance ,waterproofing ,etc.
It can cure both at room temperature and heated temperature and the curing time can be accelerated by higher temperature.
It’s designed for pouring and protecting Auto mobile parts and supply physical strength to the elements, where excellent properties and exceptional thermal shock at elevated temperatures are required.
Electronic potting compound is a kind of two components(5:1 mixing ratio) addition cure Epoxy with the characteristics of heat-conducting , low viscosity , inherent flame resistance ,waterproofing ,etc.
It can cure both at room temperature and heated temperature and the curing time can be accelerated by higher temperature.
Feature
|
PERPORTY
|
Part A
|
Part B
|
|
|
Colour (Appearance)
|
Black Viscous Liquid
|
Brown liquid
|
|
|
Viscosity, cps , 25℃
|
30000~40000
|
100~200
|
|
|
Density (g/cm³) (GB/T 15223-1994)
|
1.60~1.70
|
1.05~1.15
|
|
|
Mixture ratio (Weight Ratio)
|
A:B = 5:1
|
|
|
|
Viscosity of mixture,4#rotor,cps , 25℃
|
2000~4000
|
|
|
|
Operation time,mins , 25℃
|
30-50
|
|
|
|
Cure condition
|
25℃/4~6Hrs
|
|
|
|
Cured appearance
|
Black Elastomer
|
|
|
|
Hardness, Shore D
|
>80
|
|
|
|
Thermal conductivity,W/K.T
|
0.5
|
|
|
|
Shear strength, Fe-Fe, MPa
|
>10
|
|
|
|
dielectric loss angle
tangent,1.2MHz |
<0.01
|
|
|
|
Volume resistance,DC 500V, Ω·CM
|
1.1×1014
|
|
|
|
Breakdown voltage,kV/mm,25℃
|
>18
|
|
|
|
Cure shrinkage,%
|
<2
|
|
|
|
Dielectric constant(1 MHz)
|
3.3±0.1
|
|
|
|
Application temperature, ℃
|
- 40 - 120
|
|
|
|
Flame resistance ( UL-94)
|
V-0
|
|
|
Direction for use
1. Mix the glue: the glue component in the original packaging after the full mixing (no filler can not stir),
the A and B components according to the provisions of the quality ratio of mixing (see the table above
the mixing ratio), stir even after potting, The time available after mixing is shown in the table above.
More than the available time, glue viscosity will be high, no longer suitable for perfusion. So each time
with the amount of plastic should not be too much, otherwise it will cause a waste.
2. Curing: Cure conditions See table above. Curing speed and temperature-related, high temperature
fast curing, winter temperature is low, curing time will be extended, a variety of plastic can be used
curing curing method, at 80 ℃ under the conditions of curing 2 to 3 hours. After the hardening of the
glue can be assembled, the test generally need to cure 24 to 48 hours after the curing.
OPERATION PRECAUTION
1. Before using the A component of the compound must be in the original packaging to stir evenly (because the long-term placement may be precipitation, stirring even after use, does not affect performance).
2. Different seasons due to temperature changes in curing speed is different is normal, the winter temperature is low curing will be slower. Above all kinds of plastic can be used heating curing method.
3. Some of the A, B components of the colloid in the low temperature conditions may occur crystallization, agglomeration, which is normal; before use it can be placed in the oven at 80 ℃ to melt, and then put to room temperature after use Does not affect its performance.
4. In the mixing process, pay attention to the inner wall of the container must be folded back to the mixing, to ensure the uniformity of plastic. Curing time is affected by temperature, winter can choose to use winter formula
* Keep away from Children
* Avoid contact with eyes and skin. If contact with your skin, scrub first with soap water or alcohol, then rinse with water. If
contact with your eyes, rinse with plenty of water, and seek medical treatment immediately.
* It is forbidden to build on the surface of the wet substrate.
1. Mix the glue: the glue component in the original packaging after the full mixing (no filler can not stir),
the A and B components according to the provisions of the quality ratio of mixing (see the table above
the mixing ratio), stir even after potting, The time available after mixing is shown in the table above.
More than the available time, glue viscosity will be high, no longer suitable for perfusion. So each time
with the amount of plastic should not be too much, otherwise it will cause a waste.
2. Curing: Cure conditions See table above. Curing speed and temperature-related, high temperature
fast curing, winter temperature is low, curing time will be extended, a variety of plastic can be used
curing curing method, at 80 ℃ under the conditions of curing 2 to 3 hours. After the hardening of the
glue can be assembled, the test generally need to cure 24 to 48 hours after the curing.
OPERATION PRECAUTION
1. Before using the A component of the compound must be in the original packaging to stir evenly (because the long-term placement may be precipitation, stirring even after use, does not affect performance).
2. Different seasons due to temperature changes in curing speed is different is normal, the winter temperature is low curing will be slower. Above all kinds of plastic can be used heating curing method.
3. Some of the A, B components of the colloid in the low temperature conditions may occur crystallization, agglomeration, which is normal; before use it can be placed in the oven at 80 ℃ to melt, and then put to room temperature after use Does not affect its performance.
4. In the mixing process, pay attention to the inner wall of the container must be folded back to the mixing, to ensure the uniformity of plastic. Curing time is affected by temperature, winter can choose to use winter formula
* Keep away from Children
* Avoid contact with eyes and skin. If contact with your skin, scrub first with soap water or alcohol, then rinse with water. If
contact with your eyes, rinse with plenty of water, and seek medical treatment immediately.
* It is forbidden to build on the surface of the wet substrate.
