Quick Details
-
Voltage:
-
220/380V
-
Dimension(L*W*H):
-
400*400*2
-
Weight:
-
5000kg
-
Warranty:
-
One Year
-
Certification:
-
CE/ISO9001
-
Power:
-
2200W
-
Configuration:
-
Column Frame
-
Type:
-
XLB-D(Y)400*400*2/0.5
-
Nominal molding power:
-
0.5
-
Working layer number:
-
2
-
Piston stroke:
-
250
-
Plate Pressure:
-
3.13
-
Main motor power:
-
2.2KW
-
Plate clearance:
-
125-200
-
Calefaction manner:
-
Steam ecectricity
-
Electric pipe heating power:
-
2.7
Quick Details
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
XLB-D(Y)400*400*2/0.5
-
Brand Name:
-
HUICAI
-
Voltage:
-
220/380V
-
Dimension(L*W*H):
-
400*400*2
-
Weight:
-
5000kg
-
Warranty:
-
One Year
-
Certification:
-
CE/ISO9001
-
Power:
-
2200W
-
Configuration:
-
Column Frame
-
Type:
-
XLB-D(Y)400*400*2/0.5
-
Nominal molding power:
-
0.5
-
Working layer number:
-
2
-
Piston stroke:
-
250
-
Plate Pressure:
-
3.13
-
Main motor power:
-
2.2KW
-
Plate clearance:
-
125-200
-
Calefaction manner:
-
Steam ecectricity
-
Electric pipe heating power:
-
2.7
♥ Qingdao HUICAI Cooperate Sincerely With You ♥
◊Features:
This machine is of small plate series vulcanizing machine, mainly used for rubber vulcanization, generally USES the pillar ,
compact structure, nice appearance, mould clamping force is big, each station on the template can heat 180 high temperature
(adjustable), lower plate can be temperature control in room temperature condition, form effective temperature difference; This machine with its unique double temperature station structure and high pressure characteristic adapted to all kinds of reflective material products such as trademark, pressing qualitative, etc.
◊Technical Data:
|
Type |
XLB-D(Y)450*450*2/1.00 XLB-D(Y)600*600*2/1.00 |
XLB-D(Y)500*1000*1/1.00 XLB-D(Y)600*800*1/1.00 |
XLB-D(Y)750*850*1/1.60 XLB-D(Y)800*800*1/1.60
|
|
Nominal molding power(MN) |
100 |
1.00 |
1.60 |
|
Working layer number |
2 |
2/4 |
2 |
|
Piston stroke(mm) |
300-500 |
300-500 |
300-500 |
|
Plate Pressure (Mpa) |
4.94/2.78 |
2.00/2.08 |
2.51/2.50 |
|
Main motor power(KW) |
2.2 |
2.2 |
2.2 |
|
Plate clearance(mm) |
125-250 |
125-250 |
125-250 |
|
Calefaction manner |
Steam ecectricity |
Steam ecectricity |
Steam ecectricity |
|
Configuration |
Column Frame |
Column Frame |
Column Frame |
|
Electric pipe heating power |
2.7/3.6 |
5.4/4.8 |
4.8/4.8 |

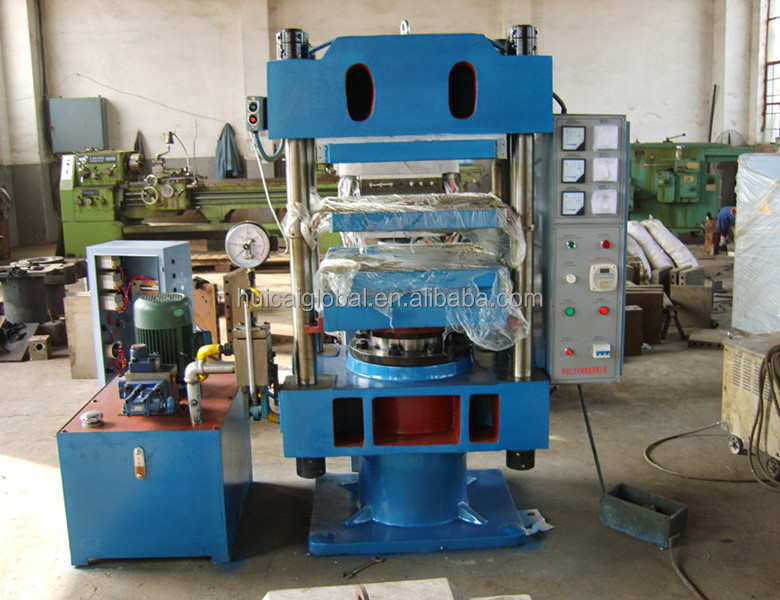

◊Machine Pictures:
◊Main Components:
(1) Hydraulic Station:
(2) Electric control cabinet:
(3) The Piston:
(4) The Hot Plate:
◊
