- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Yidao
-
Voltage:
-
custom made
-
Dimension(L*W*H):
-
1800x1300x1200mm
-
Weight:
-
320 kg
-
Package:
-
Export Wooden Case
-
HS code:
-
84515000
-
After Warranty Service:
-
Online support
-
Certification:
-
CE
Quick Details
-
Type:
-
Paper Cutting Machine
-
Production Capacity:
-
80cuts/min
-
Max. workable width:
-
1000mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Yidao
-
Voltage:
-
custom made
-
Dimension(L*W*H):
-
1800x1300x1200mm
-
Weight:
-
320 kg
-
Package:
-
Export Wooden Case
-
HS code:
-
84515000
-
After Warranty Service:
-
Online support
-
Certification:
-
CE
Please Attention
"with us your MONEY in safe ; your BUSINESS in safe"
YIDAO FACTORY OFFER YOU :
Product Description
Technical parameters:
|
Item Number
|
YD-600Q
|
YD-1000Q
|
|
Web Width
|
0-600mm
|
0-1000mm
|
|
Cutting length
|
0-9999.99mm
|
0-9999.99mm
|
|
Cutting speed
|
125 cut/min
|
100 cut/min
|
|
Cutting precision
|
±0.05mm
|
±0.05mm
|
|
Voltage
|
220V/380V
|
220V/380V
|
|
Size
|
1800x1300x1200mm
|
1800*1750*1200mm
|
|
Weight
|
320kg
|
510kg
|
|
Total Power
|
1.5KW
|
1.5KW
|
*
t
he voltage can customize according to your country standards.
Taiwan brand servo motor & Japan brand mitsubishi PLC;
Touch screen control panel,easy to operate;
Can preset and adjust the cutting length ,total cutting quantity and speed;
Afer the machine shutting down,it still can remember the amount automatically;
Cutting tolerance can be reach ±0.1mm based on material;
Optional function:
Kiss cut (half-cut)
Hot cutting
Static electricity eliminator
Cutting with position sensor
Application:
Sizing cutting for paper(sandwich paper,wax paper,greaseproof paper,release paper,kraft paper),film,labels,stickers ,aluminum foil, copper foil, PET, PC, PVC, PCB, FPC, Lithium battery film,
flannelette, metal foil,non woven fabric ,wire mesh,plastic bag and all kinds of material in roll form
Machine Display

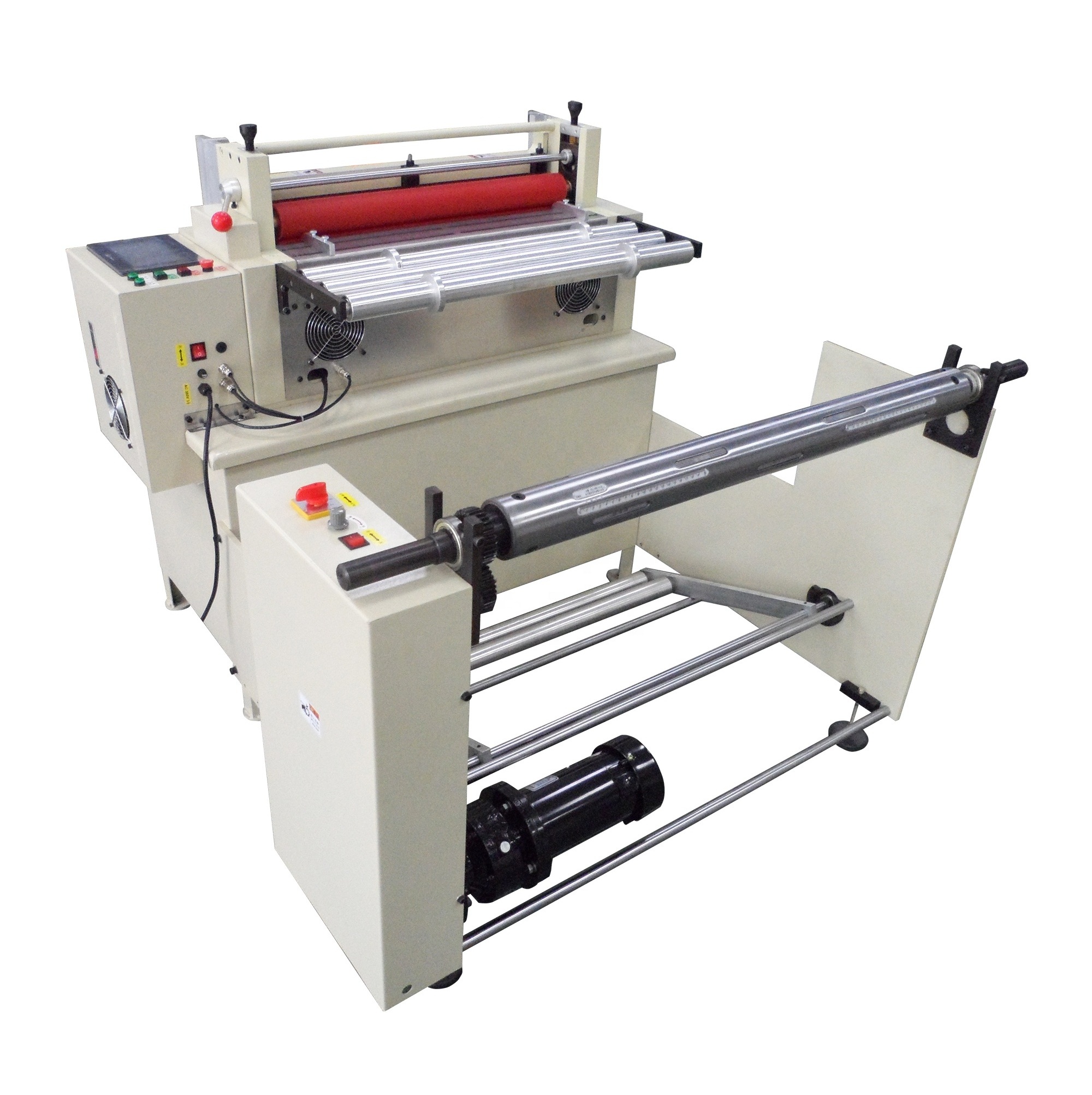

YD-600Q/1000Q cutting machine with automatic unloading device
Machine Details
Touch Screen
You can set all parameter in touch screen,such as the length,batch quantity,total quantity,cutting speed,etc.
It's convenient for workers to operate the machine
.
Cutting Blade
Material:SKH-51
Original:Japan
Lifetime:About 20 million times cuts.
Scissor-type cutting blade,durable with highest hardness 65HRC.Easy to adjust,sharp,maintain and change.
Rubber Feeding Roller
The rubber roll is connected with the servo motor,which can feed material with high precision that reach ± 0.1mm.
After-service
1. Training Service
We can train your staffs how to run the machine efficiently and safely.
1.1 Free training in our factory available before delivering machines.
1.2 We also can arrange engineer to customer's plants for installation and training.
2. After Sales Service
We offer not only the products, but also the solutions.We have plenty of cooperated professional supplier which make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.
For all of our machines, we provide:
1. Operation Manual, Operation and repair Video.
2.1 year guarantee, whole life technical support .we also offer some spare parts packing together with the machine.
3.24hours Email technical support, we will do our best to help the clients solve problems.
4.Available to send our engineer to clients factory, to install the machines, train the workers, repair the machines.
Application
Packing & Delivery
PACKAGE:
we use plywood case for packing the machine to make sure wooden case safe and strong, up to International trade standard. It does not need Fumigation .It's easy for forklift to upload and download .Safety transportation .we will use PE film for packing first before plywood case or pack it according to customers special .
SHIPPING :
Usually we suggest customers choose ocean shipping to ship machinery , or air transport for small machine and urgent order . We also supply shipping sevice with our cooperation shipping forwarder to help customers to deliver the machinery in first time .
