Quick Details
-
Weight (KG):
-
1500 KG
-
Type:
-
UV Roller Coating Production Line
-
Product Type:
-
Wood Furniture UV Paint Coating Machine Line
-
Effective Working Length:
-
300~3000 mm
-
Effective Working Width:
-
150~1300 mm
-
Effective Working Thickness:
-
2~80 mm
-
Paint Drive:
-
Diaphragm Pump
-
Conveying method:
-
Belt/roller
-
Type of Paint:
-
PU, UV, NC, AC, Waterborne Paint
Quick Details
-
Brand Name:
-
JXY
-
Place of Origin:
-
Anhui, China
-
Machine Type:
-
Coating Production Line
-
Weight (KG):
-
1500 KG
-
Type:
-
UV Roller Coating Production Line
-
Product Type:
-
Wood Furniture UV Paint Coating Machine Line
-
Effective Working Length:
-
300~3000 mm
-
Effective Working Width:
-
150~1300 mm
-
Effective Working Thickness:
-
2~80 mm
-
Paint Drive:
-
Diaphragm Pump
-
Conveying method:
-
Belt/roller
-
Type of Paint:
-
PU, UV, NC, AC, Waterborne Paint
Product Description
|

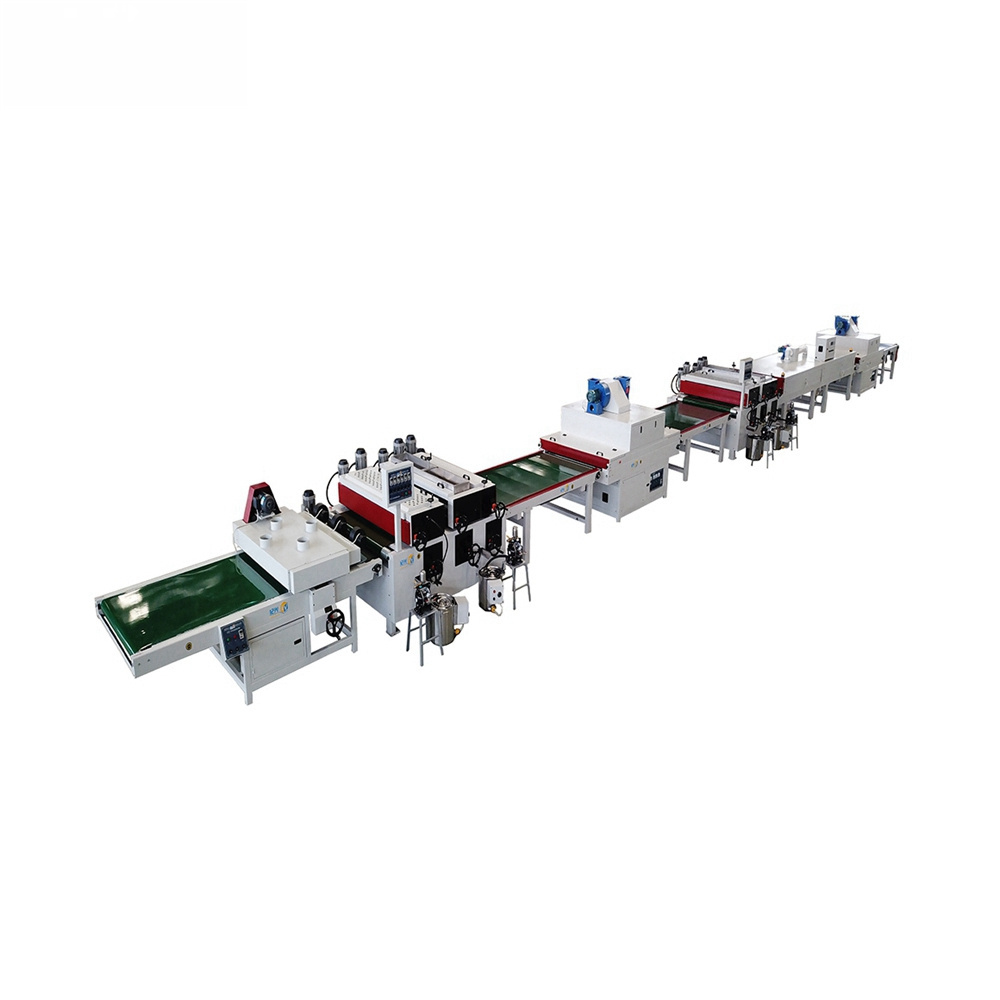

MDF/ Plywood/ Laminated Board UV Roller Coating Production Line
|
|
|
|
|||
①Lengthening Deduster → ②Putty Filling Machine → ③Conveyor → ④Double Lamps UV Curing → ⑤Conveyor → ⑥Posltive and Inverse Rolling → ⑦Heating Leveling → ⑧Three Lamps UV curing → ⑨Conveyor
|
① Lengthening Deduster JXDC-C-1300
|
|
|
|
Working Width
|
1300mm
|
|
|
Convey Speed
|
5~15 m/min
|
|
|
Brush Roll Type
|
Nylon and Sisal Brush
|
|
|
Brush Roll Size
|
Length 1340 * 180mm
|
|
|
Fan Power
|
0.2 kw * 3 pcs
|
|
|
Vacuuming Tuyere
|
φ 150 mm * 4 pcs
|
|
|
Machine Size
|
3000×2000×1400 mm
|
|
|
② Putty Filling Machine
|
|
|
|
Working Width
|
1300 mm
|
|
|
Convey Speed
|
5~15 m/min
|
|
|
Coating Roll (PU)
|
1450 * φ 240 mm (1.5kw * 2 pcs)
|
|
|
Putty Roll (chromeplate)
|
1450 * φ 240 mm (1.5kw)
|
|
|
Doctor Roll
|
1450 * φ 150 mm (0.75kw * 2 pcs)
|
|
|
Machine Size
|
2100×2370×1730 mm
|
|
|
④ Double Lamps UV Curing
⑧ Three Lamps UV Curing
|
|
|
|
Working Width
|
1300 mm
|
|
|
Convey Speed
|
5~15 m/min (frequency control )
|
|
|
Convey Type
|
Roller type chain transmission
|
|
|
UV Lamp
|
Osram Lamp ( over 800H working)
|
|
|
Fan
|
POPULA Fan
|
|
|
Transducer
|
Delta
|
|
|
⑥ Posltive and Inverse Rolling
|
|
|
|
Working Width
|
1300 mm
|
|
|
Convey Speed
|
5~15 m/min
|
|
|
Coating Roll (PU)
|
1450 * φ 240 mm (1.5kw * 2 pcs)
|
|
|
Doctor Roll
|
1450 * φ 150 mm (0.75kw * 2 pcs)
|
|
|
Machine Size
|
1800*2370*1730 mm
|
|
|
⑦ Heating Leveling JXIR-1300
|
|
|
|
Working Width
|
1300 mm
|
|
|
Convey Speed
|
5~15 m/min
|
|
|
Heat Tube Power
|
12 kw
|
|
|
Feeding Height
|
100 mm
|
|
|
Machine Size
|
5000×1570×1070 mm
|
|
|
③/⑤/⑨ Conveyor
|
|
|
|
Working Width
|
1300 mm
|
|
|
Convey Speed
|
5~15 m/min
|
|
|
Convey Power
|
0.4 kw
|
|
|
Machine Size
|
2500×1550×875 mm
|
|
This PU / UV Roller Coating Machine is suitable for plate-type furniture, solid wood doors, cabinet doors, handicrafts, decorative plates and other plate-type workpieces. Suitable for large-volume continuous roll coating products. UV coating can be online drying, processing speed. The coating effect is stable.
Effect of Coating
Application
Related Products
Our Company
Certifications
Our Service
Payment Term
* 30% Deposit before production
* 70% Balance before shipping
Warranty
* 1 year warranty for the machine
Packing & Delivery
Packaging
The normal package is wooden box.
If you have any request, please let us know in advance.
Professional logistics. Fast and reliable. Accept customer's shipping agency.
