- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
KCD2-22N
-
Max. Current:
-
16A
-
Mechanical Life:
-
100,000 cycles
-
Products name:
-

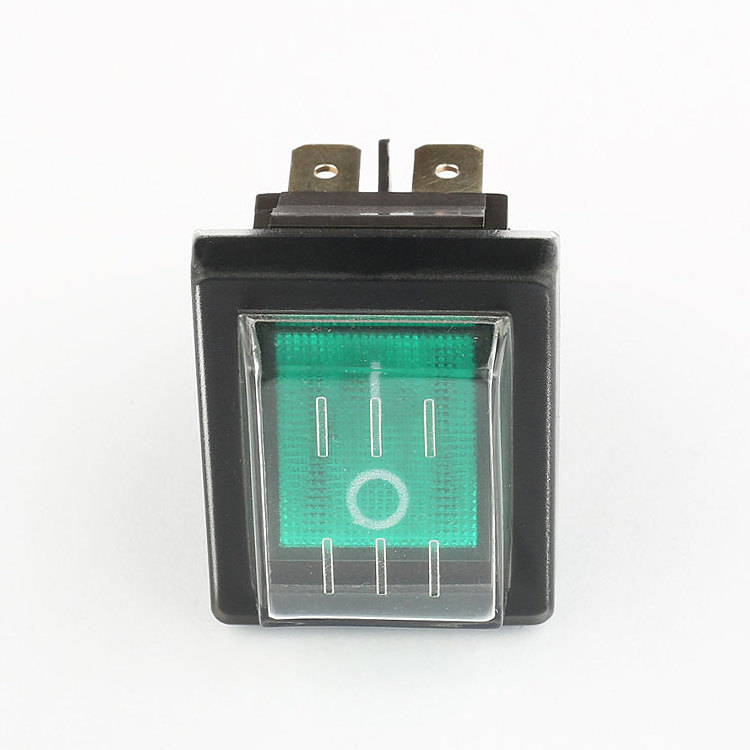

KCD2 DPDT Green Illuminated Waterproof Cover Rocker Switch
-
Function:
-
DPDT
-
Insulation Resistance:
-
1000M
-
Contact Resistance:
-
50m Max
-
Dielectric Strength:
-
1500VAC 1 Min
-
Electrical Life:
-
10000 cycles
-
Protection level:
-
IP65
-
Type:
-
Lamp Illuminated Rocker Switch
-
Certification:
-
CE,UL,CB,ENEC,ROHS
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
China
-
Brand Name:
-
Shangkai(SK)
-
Model Number:
-
KCD2-22N
-
Max. Current:
-
16A
-
Mechanical Life:
-
100,000 cycles
-
Products name:
-
KCD2 DPDT Green Illuminated Waterproof Cover Rocker Switch
-
Function:
-
DPDT
-
Insulation Resistance:
-
1000M
-
Contact Resistance:
-
50m Max
-
Dielectric Strength:
-
1500VAC 1 Min
-
Electrical Life:
-
10000 cycles
-
Protection level:
-
IP65
-
Type:
-
Lamp Illuminated Rocker Switch
-
Certification:
-
CE,UL,CB,ENEC,ROHS
Product Description
Specification
|
Certification
|
CE,UL,CB,ENEC,ROHS
|
|
Whether the smart
|
NO
|
|
Place of Origin
|
China
|
|
Brand Name
|
Shangkai(SK)
|
|
Model Number
|
KCD2-22N
|
|
Max. Current
|
16A
|
|
Max. Voltage
|
250V
|
|
Mechanical Life
|
100,000 cycles
|
|
Products name
|
KCD2 DPDT Green Illuminated Waterproof Cover Rocker Switch
|
|
Function
|
DPDT
|
|
Insulation Resistance
|
1000M
|
|
Contact Resistance
|
50m Max
|
|
Dielectric Strength
|
1500VAC 1 Min
|
|
Electrical Life
|
10000 cycles
|
|
Protection level
|
IP65
|
|
Type
|
Lamp Illuminated Rocker Switch
|
Packing & Delivery
KCD2 DPDT green illuminated waterproof cover rocker switch the packing is 100 pcs in one poly bag and then put into master carton
