Quick Details
-
Product name:
-
HD Encoder
-
Application:
-
Digital TV Head-end System
-
Input:
-
HDMI
-
Encoding:
-
HEVC/ H.265, MPEG 4 AVC/H.264
-
Stream output:
-
IP out over UDP
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XSMART/OEM
-
Model Number:
-
XS-3228M-N-16
-
Product name:
-
HD Encoder
-
Application:
-
Digital TV Head-end System
-
Input:
-
HDMI
-
Encoding:
-
HEVC/ H.265, MPEG 4 AVC/H.264
-
Stream output:
-
IP out over UDP

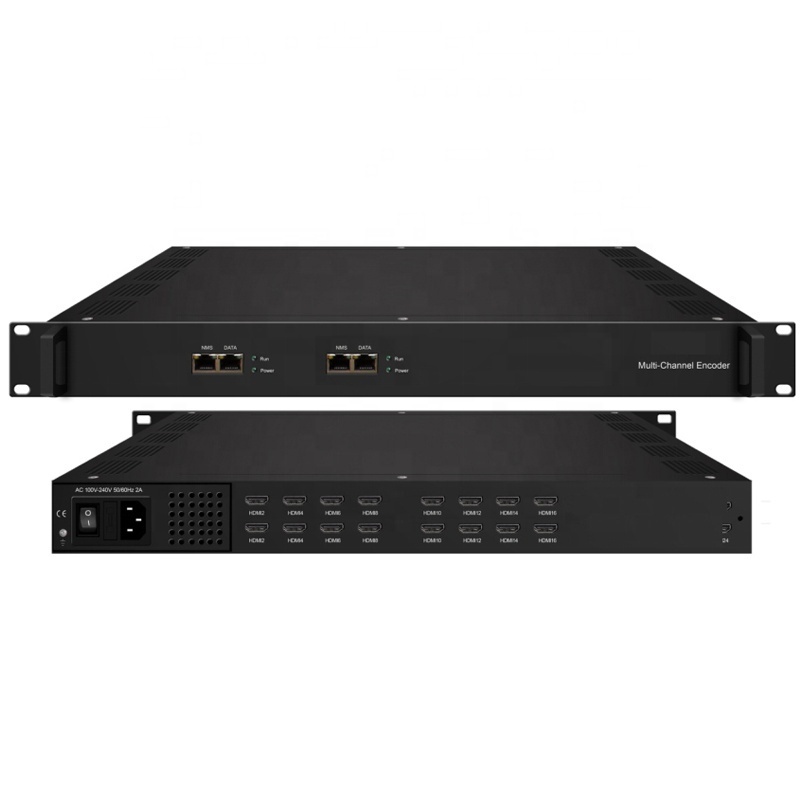

16 channel HDMI input support H264+H265 encoder ( DUP/RTP/RTSP/RTMP/HLS/M3U8/SRT/etc )
Key Features
l Support 2/ 4 / 8//16/24 HDMI inputs, with 2/4/ 8/16/24 SPTS output (each encoder module, only support STPS, NO MPTS), max 24 HDMI inputs
l MPEG4 AVC/H.264 /H265 video encoding format
l MPEG1 Layer II, LC-AAC, HE-AAC audio encoding format and AC3 Pass Through, and audio gain adjustment
l Support IP Output over UDP (Unicast/Multicast), SRT, RTSP, RTP, RTMP, HTTP, HLS, M3U8
l Support QR code, LOGO, caption insertion (Language Supported: Chinese , English,Arabic ,Thai, Hindi,Russian , Urdu for more languages please consult us…)
l Support “Null PKT Filter” function
l Control via web management, and easy updates via web
|
HDMI Encoding Section |
||
|
Video |
Encoding |
HEVC/ H.265 , MPEG 4 AVC/H.264 |
|
Interface |
2/4/8/16/24 HDMI input |
|
|
Resolution |
1920*1080_60P, 1920*1080_50P; 1920*1080_59.94P, 1280*720_60p, 1280*720_59.94 1280*720_50P |
|
|
Chroma |
4:2:0 |
|
|
Bitrate |
1Mbps~15Mbps |
|
|
Rate Control |
CBR/VBR |
|
|
GOP Structure |
IP |
|
|
Audio |
Encoding Format |
MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2; AC3 Pass-through |
|
Sample rate |
32KHz,44.1KHz,48KHz |
|
|
Bit-rate |
48~384Kbps |
|
|
Stream output |
IP out over UDP (Unicast/Multicast) , RTP/M3U8/ SRT, RTP,RTSP, RTMP, HTTP, HLS (RJ45, 1000M ) (8 HDMI inputs with 8 SPTS for each encoder board) |
|
|
System function |
Network management(WEB) |
|
|
Chinese and English language |
||
|
Ethernet software upgrade |
||
|
Miscellaneous |
Dimension (W×L×H) |
482mm×328mm×44mm |
|
Environment |
0~45℃(work); -20~80℃ ( Storage ) |
|
|
Power requirements |
AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz |
|
