The main types of shredder and crusher are listed in the following.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
XS300
-
Power:
-
20
-
Weight (KG):
-
2000 kg
-
Application:
-
shred plastic, metal, rubber, leather shoe, cloth, film, wood etc
-
Features:
-
big capacity, shred various material
-
Blades material:
-
H13/ 9CrSi/ 55SiCr or by Custom
-
Output granular size:
-
depend on requirement
-
input open size:
-
depend on requirement
-
Motor:
-
single / double
-
Raw material:
-
Carbon Steel
-
Material:
-
Standard
-
After Warranty Service:
-
Service
-
Capacity:
-
20kg-500kg/batch
Quick Details
-
Production Capacity:
-
3000kg/H
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
xinmechan
-
Model Number:
-
XS300
-
Power:
-
20
-
Weight (KG):
-
2000 kg
-
Application:
-
shred plastic, metal, rubber, leather shoe, cloth, film, wood etc
-
Features:
-
big capacity, shred various material
-
Blades material:
-
H13/ 9CrSi/ 55SiCr or by Custom
-
Output granular size:
-
depend on requirement
-
input open size:
-
depend on requirement
-
Motor:
-
single / double
-
Raw material:
-
Carbon Steel
-
Material:
-
Standard
-
After Warranty Service:
-
Service
-
Capacity:
-
20kg-500kg/batch
Product Description
Brief introduction
The shredder also known as the shredder crusher, reduces the size of the shredded material by cutting, tearing, and squeezing.
Generally, the shredder consists of single, double, and four shafts with single, double four motors.

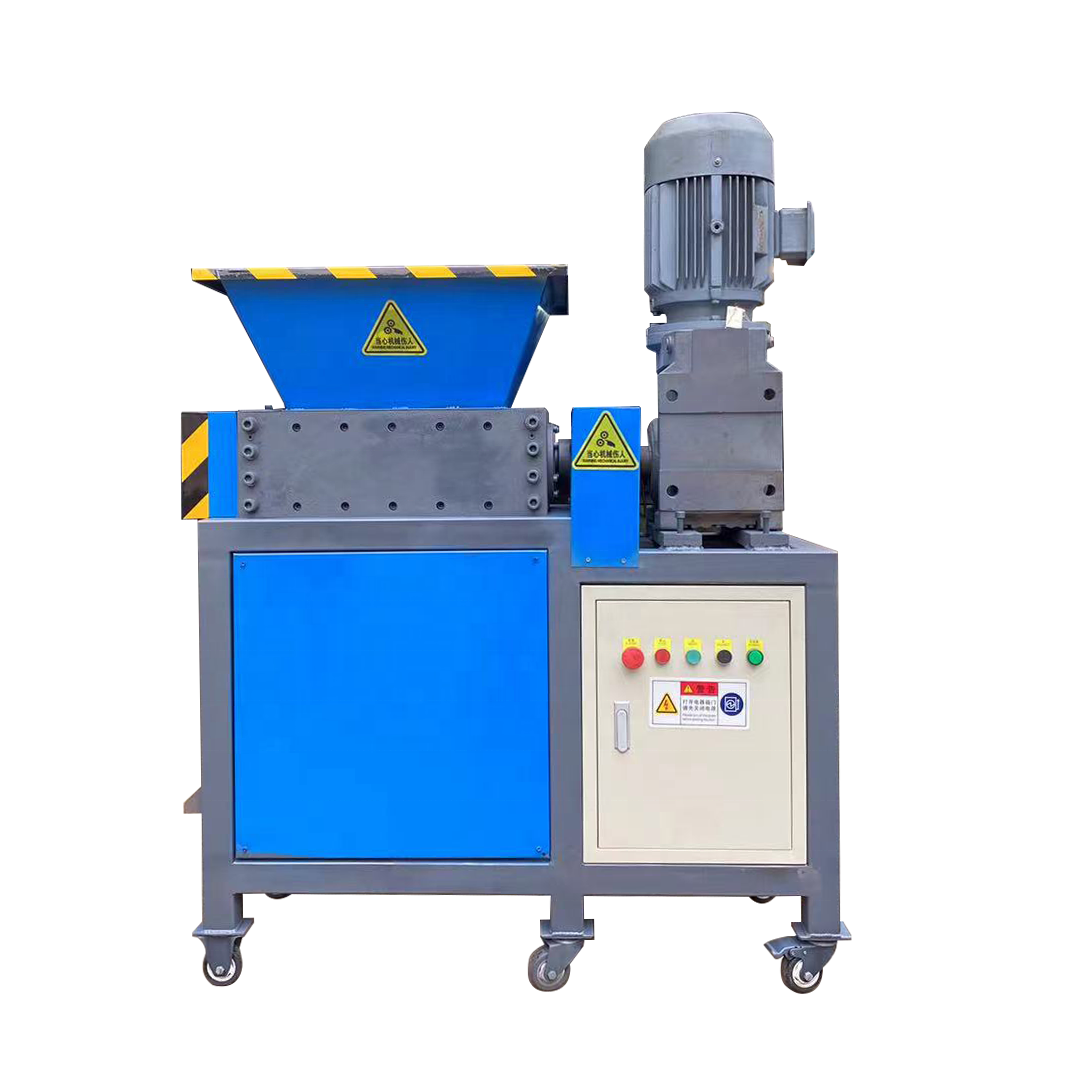

Small Double Shafts Single Motor Shredder
Middle Double Shafts Double Motors Shredder
Middle Four Shafts Double Motors Shredder
1. Body
The main body of the equipment is produced in the whole one, using high-quality steel plate welding to eliminate the stress and to ensure the stability of the equipment in the long heavy load.
2. Movable knife / fixed knife
The tool material is made of alloy tool steel forging blanks, precision machining through multiple heat treatment and low
temperature frozen heat treatment technology, and the overall toughness hardness is consistent, and can be repaired repeatedly to ensure the performance and service life. The fixed knife is mounted with hooks to optimize the tool replacement function and make tool maintenance replacement more efficient.
3. Bearings/seals
The housing is flattened and disassembled, can quickly remove the movable knife, fixed knife, bearing, and other components, easy to maintain and replace tools. The unique sealing structure effectively blocks the contact between broken materials and grease. Even if shredding liquid materials, the bearings and gears can also be protected.
4. Knife shaft
The knife shaft is made of high-strength heavy-duty steel material, more reasonably match with tools for cutting to provide strong power.
The main body of the equipment is produced in the whole one, using high-quality steel plate welding to eliminate the stress and to ensure the stability of the equipment in the long heavy load.
2. Movable knife / fixed knife
The tool material is made of alloy tool steel forging blanks, precision machining through multiple heat treatment and low
temperature frozen heat treatment technology, and the overall toughness hardness is consistent, and can be repaired repeatedly to ensure the performance and service life. The fixed knife is mounted with hooks to optimize the tool replacement function and make tool maintenance replacement more efficient.
3. Bearings/seals
The housing is flattened and disassembled, can quickly remove the movable knife, fixed knife, bearing, and other components, easy to maintain and replace tools. The unique sealing structure effectively blocks the contact between broken materials and grease. Even if shredding liquid materials, the bearings and gears can also be protected.
4. Knife shaft
The knife shaft is made of high-strength heavy-duty steel material, more reasonably match with tools for cutting to provide strong power.
Product Parameter
|
Model
|
Blade spec.
|
Power
|
Blade Qty
|
Transmission
|
Rotary speed
|
Overall size
|
|
XS300
|
Φ100*20
|
3kw
|
12
|
250
|
13-20
|
1.2*0.45*1.2
|
|
XS400
|
Φ200*20
|
4kw
|
18
|
250
|
13-20
|
1.3*0.5*1.25
|
|
XS450
|
Φ160*20
|
5.5kw
|
20
|
250
|
13-20
|
1.35*0.57*1.3
|
|
XS500
|
Φ200*20
|
7.5kw
|
25
|
300
|
13-20
|
1.7*0.55*1.35
|
|
XS650
|
Φ220*20
|
11kw*2
|
30
|
300
|
13-20
|
2.4*0.85*1.45
|
|
XS600
|
Φ200*10
|
15kw
|
48
|
400
|
18-25
|
1.45*0.87*2.2
|
|
XS800
|
Φ200*20
|
15kw*2
|
32
|
400*2
|
18-25
|
2.15*0.87*2.2
|
|
XS1000
|
Φ300*25
|
30kw*2
|
32
|
650*2
|
18-25
|
3.4*1.25*2.2
|
|
XS1200
|
Φ400*30
|
55kw*2
|
38
|
650*2
|
18-25
|
4.15*1.25*2.2
|
|
XS1500
|
Φ400*30
|
75kw*2
|
48
|
750*2
|
18-25
|
4.15*1.25*2.2
|
|
XS2000
|
Φ530*50
|
90kw*2
|
38
|
850*2
|
18-30
|
5.25*1.78*2.2
|
The above parameter sheet is just for your reference.
The final specification will be adjusted according to the buyer's actual requirement, such as
the dimension of the material to shred, the size of the particles, the capacity, etc, which affect the selection of the model, the number of shafts, motors, transmissions, knife specifications, and so on.
Application
The shredding machine is used for shearing urban household waste, solid hazardous waste, and industrial solid waste, etc.
1. This product can shred large blocks of material, basket material, pipe, sheets, wood, tires, scrap metal barrels, large roll the film which a shaft shredder is difficult to break.
2. The outer frame is of thick plate precision processing of the combination of the structure, with large angle hexagonal column of the powerful rotating shaft, large caliber solid input hopper. So you can rest to throw large-scale raw materials into the machine.
3. The rotary knife is designed and processed under consideration of the thickness, shape, order, and other aspects, ensuring high strength, and sharp blade with excellent work performance.
4. The machine is operated with low noise and less dust.
5. The tool blades are made of special alloy steel, durable.
2. The outer frame is of thick plate precision processing of the combination of the structure, with large angle hexagonal column of the powerful rotating shaft, large caliber solid input hopper. So you can rest to throw large-scale raw materials into the machine.
3. The rotary knife is designed and processed under consideration of the thickness, shape, order, and other aspects, ensuring high strength, and sharp blade with excellent work performance.
4. The machine is operated with low noise and less dust.
5. The tool blades are made of special alloy steel, durable.
