- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380V/50HZ/3P
-
Disc Dia.:
-
None
-
No Load Speed:
-
various
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
OKEAH
-
Model Number:
-
D2355
-
Warranty:
-
12month
-
Product name:
-

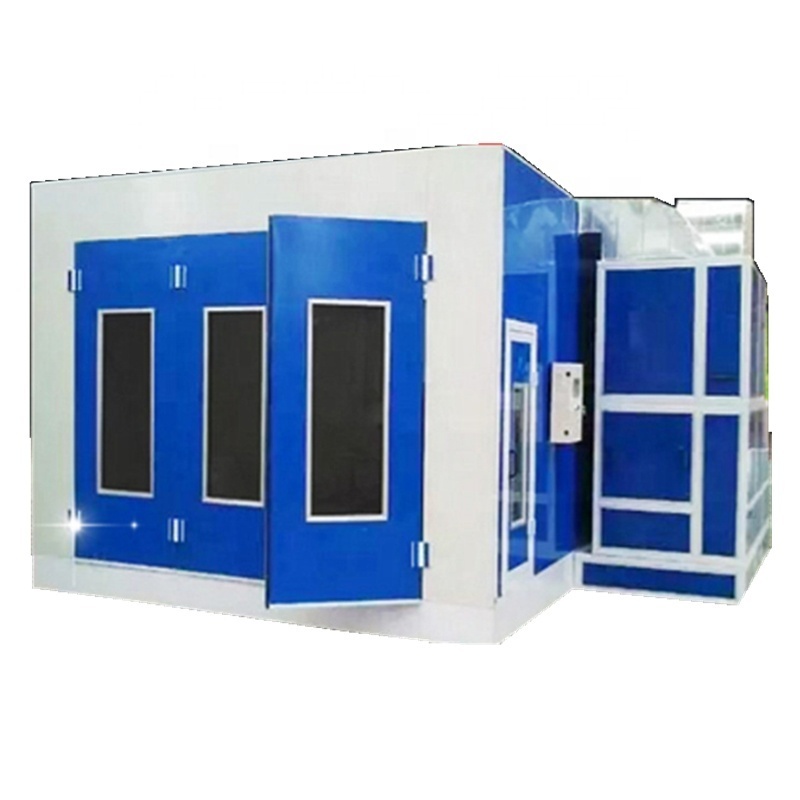

Environmental Protection Water Curtain Paint Spray Booth
-
Heating System:
-
GAS heating
-
Wall Panel:
-
Rock-wool panel
-
Function:
-
Baking and paint cars
-
Intake Fan:
-
2*3kw
-
Exhaust Fan:
-
1*5.5kw
-
Ceiling lights:
-
8units*3pcs=24pcs
-
Wall lights:
-
8units*2pcs=16pcs
Quick Details
-
Power:
-
17KW
-
External Size:
-
7000*4000*3300mm
-
Internal Size:
-
6900*3900*2650mm
-
Voltage:
-
380V/50HZ/3P
-
Disc Dia.:
-
None
-
No Load Speed:
-
various
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
OKEAH
-
Model Number:
-
D2355
-
Warranty:
-
12month
-
Product name:
-
Environmental Protection Water Curtain Paint Spray Booth
-
Heating System:
-
GAS heating
-
Wall Panel:
-
Rock-wool panel
-
Function:
-
Baking and paint cars
-
Intake Fan:
-
2*3kw
-
Exhaust Fan:
-
1*5.5kw
-
Ceiling lights:
-
8units*3pcs=24pcs
-
Wall lights:
-
8units*2pcs=16pcs
Factory Direct Sale Environmental Water Curtain Paint Spray Booth
Here is a
inst
allation video of spray booth to show:
The size sketch of our standard spray booth, i
f customers has special requirement, we can also customize it, just tell us.
Product Paramenters
|
Room outside size:
|
7000*4000*3300mm
|
|
|
|
Room inside size:
|
6900*3900*2650mm
|
|
|
|
Panels:
|
Wall panels: 50mm thick rock-wool panel, with 0.4mm thick steel skin.with tongue & groove style, anti-flame and heat-insulation
Roof panel: galvanized steel panels. |
|
|
|
Main door:
|
3-fold main doors,total 3000*2500mm(W*H),with safety glass,
with handles and high-pressure safety lock, rubber strips. |
|
|
|
Side door:
|
1 unit 700*1800mm(W*H), with safety glass windows,
aluminum alloy frame, with handle,safety lock and rubber strips. |
|
|
|
Basement:
|
Total height is 300mm with grills,embossed plates, and bottom supports;
Grills: 2 rows, material: 30*4mm thick; Embossed plate:2mm thick plate with supports, 3 rows on floor; Ramp:Two sets of hard strength ramps, size:1600*650*260mm; |
|
|
|
Air fans:
|
Intake Fan:
|
2*3kw;double-inlet centrifugal fans;22000m³/h;
|
|
|
|
Exhaust Fan:
|
1*5.5kw; double-inlet centrifugal fan;17000m³/h;
|
|
|
Cabinets:
|
Bottom cabinet for the fans, size:2700*1100*1290mm;
Upper cabinet for heating exchanger, size:1700*1100*1290mm; |
|
|
|
Electric damper:
|
TF20-230, 20N.m;
Install on the cabinet to control the inner air door. |
|
|
|
Air ducts:
|
Exhaust air ducts:
Trapezoidal duct: 1pc; Elbow 90°duct:1pc; Straight ducts:2pcs, size:700*700*900mm; Inlet air duct: upper bend air duct*1pc; All the material thickness is 0.8mm. |
|
|
|
Filtering system: |
Pre-filter, filtering rate>83%,can capture granules larger than 10μm;
Ceiling filter,filtering rate>97%, can capture granules bigger than 4μm; Fiberglass floor filter, filtering rate>70%. |
|
|
|
Heating System: |
Gas heating, natural gas burner FS10
Heating productivity: 200000 Kcal/h, stainless steel heat exchanger, with anti-explosion hole for protection, max working temperature is 80ºC. |
|
|
|
Lighting system:
|
Ceiling lights: 8units*3pcs=24pcs, powder-coated light box.
Wall lights:8units*2pcs=16pcs,vertically set,powder-coated light box. |
|
|
|
Controlling system:
|
Intelligent control,power switch,spray/baking switch,light switch,emergency stop,breakdown alarm.
|
|
|
|
Power total:
|
About 15kw, voltage: 380V/50HZ/3P
|
|
|
Details Images
Some detailed images of the main parts of our car paint booth:
Wall panels, EPS, 50mm thick.↑
Galvanized roof panel.↑
Digital touchscreen controller.↑
Gas burner FS20.↑
Front doors, metallic type
Side door↑
Front door, aluminium type
Cabinets↑
Air fans in the cabinets.↑
Ramps in front of doors.
Floor thick grills.
Pattern plate.
Installation accessories.
Customer Photos
Customers will show us after they install the spray booth, they also give us good feedback for the booth. So if you need it, just contact us.
Product packaging
Dismounted parts put into container in order. Generally one 20ft container can put in one set booth, and a 40HC container can put 3 sets booth.
To better ensure the safety of your goods, professional, environmentally friendly,convenient and efficient packaging services will be provided.
