Quick Details
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
3500/4100/5000k or 5000k
-
Color Rendering Index(Ra):
-
>80
-
Design Style:
-
Minimalist Style
-
Lifespan (hours):
-
>50000
-
Working Time (hours):
-
>50000
-
Input Voltage(V):
-
110-277V
-
Lamp Luminous Flux(lm):
-
4680
-
Working Temperature(℃):
-
-25 - 45
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Alite
-
Model Number:
-
LF-0606
-
Product name:
-

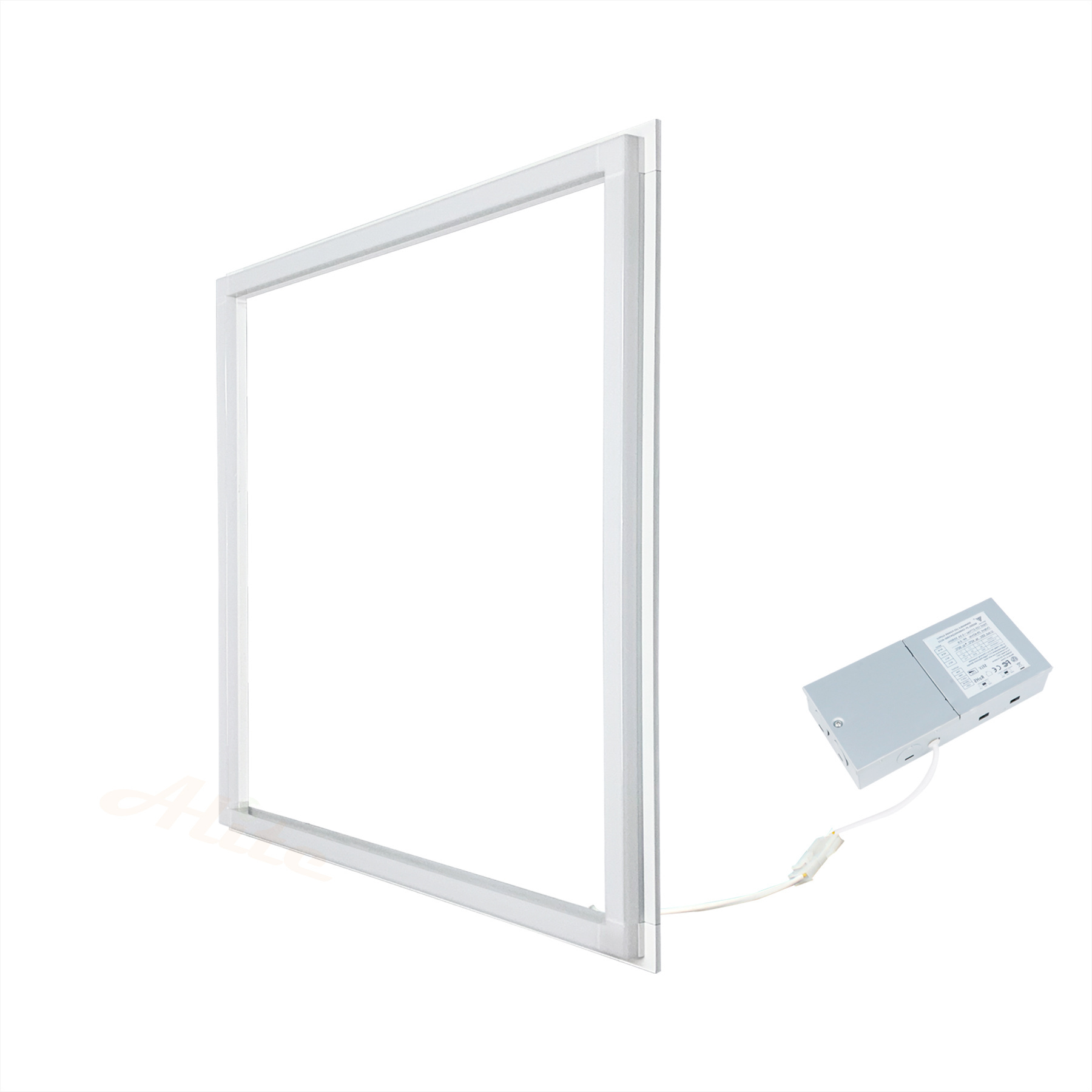

2x2 0-10V Dimmable 130LM/W Led frame panel light
-
Size:
-
603X603mm
-
THD:
-
<18%
-
Power Factor:
-
>0.9
-
Frequency:
-
60Hz
-
Beam angle:
-
180 Degree
-
Keyword:
-
2x2 Led frame panel light
-
Installation Way:
-
Bulit-in/suspended
-
Certification:
-
ETL/DLC
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
130
-
Application:
-
Offices and municipal buildings/ceiling pendant
-
Lamp Body Material:
-
Aluminum+plastic
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
3500/4100/5000k or 5000k
-
Color Rendering Index(Ra):
-
>80
-
Design Style:
-
Minimalist Style
-
Lifespan (hours):
-
>50000
-
Working Time (hours):
-
>50000
-
Input Voltage(V):
-
110-277V
-
Lamp Luminous Flux(lm):
-
4680
-
Working Temperature(℃):
-
-25 - 45
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Alite
-
Model Number:
-
LF-0606
-
Product name:
-
2x2 0-10V Dimmable 130LM/W Led frame panel light
-
Size:
-
603X603mm
-
THD:
-
<18%
-
Power Factor:
-
>0.9
-
Frequency:
-
60Hz
-
Beam angle:
-
180 Degree
-
Keyword:
-
2x2 Led frame panel light
-
Installation Way:
-
Bulit-in/suspended
-
Certification:
-
ETL/DLC
Product Description
Specification
|
Product Information:
|
|
|
|
|
||||
|
Panel type:
|
2x2 130LM/W LED frame panel light
|
|
|
|
||||
|
Rated voltage:
|
110-277V
|
|
|
|
||||
|
Size:
|
2x2FT(603x603mm)
|
|
|
|
||||
|
Wattage:
|
18W-27W-36W
|
|
|
|
||||
|
Color temperature:
|
3500K/4100K/5000K
|
|
|
|
||||
|
Function optional:
|
0-10V dimmable, Adjustable CCT, Adjustable power
|
|
|
|
||||
|
Installation:
|
Bulit-in/suspended
|
|
|
|
||||
|
Warranty:
|
5 years
|
|
|
|
||||
Details Images
Product Feature
Installation Instructions
Application
