Quick Details
-
Dimensions(L*W*H):
-
4200m*1600*2400mm
-
Weight:
-
4500 KG
-
Print Dimension:
-
760*1000mm
-
Print Speed:
-
70-80m/min
-
PLC Control System:
-
yes, included
-
Max. Printing Colors:
-
4 Colors
-
Printing Precision:
-
0.15mm
-
Max. Printing Width:
-
760mm
-
Ink Motor:
-
4 sets
-
Touch Screen:
-
yes, 7''
-
Tension Control:
-
automatic, 2 sets
-
Anilox Roller:
-
ceramic anilox roller, 4 sets
-
Doctor Blades:
-
yes, included
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JINGDIANRUIHUA
-
Voltage:
-
380V/220V 50Hz 3Phase
-
Dimensions(L*W*H):
-
4200m*1600*2400mm
-
Weight:
-
4500 KG
-
Print Dimension:
-
760*1000mm
-
Print Speed:
-
70-80m/min
-
PLC Control System:
-
yes, included
-
Max. Printing Colors:
-
4 Colors
-
Printing Precision:
-
0.15mm
-
Max. Printing Width:
-
760mm
-
Ink Motor:
-
4 sets
-
Touch Screen:
-
yes, 7''
-
Tension Control:
-
automatic, 2 sets
-
Anilox Roller:
-
ceramic anilox roller, 4 sets
-
Doctor Blades:
-
yes, included
Main

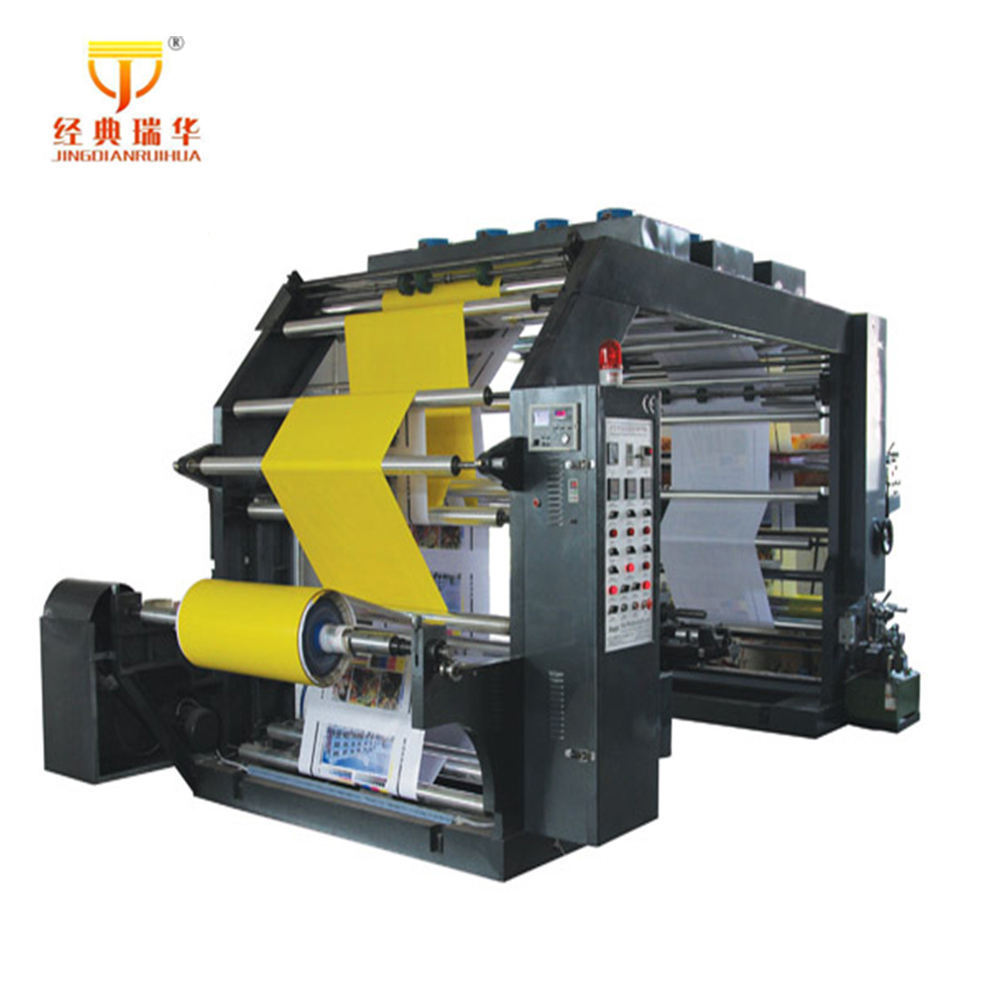

1. CE Multicolor One Color Flexo Printing Machine is with Delta PLC control and HMI, all the parameters are displayed on the monitor.
2. CE Multicolor One Color Flexo Printing Machine is with double frequency inverter motors for control.
3. Machine is with 2 sets Delta brand frequency inverter for the motor control.
4. CE Multicolor One Color Flexo Printing Machine is with magnetic brake for the unwind tension control
5. 2 sets automatic tension controller for unwinding and rewinding, to provide constant tension control for unwinding and
rewinding. Easy operation.
6. All transmission rollers have been dynamic/static balance treated.
7. Machine is with emergency switch for urgent stop.
8. Machine is with automatic meter counter. When reached the preset length, machine stop and alarm.
9. All the electric appliances has been gained the CE certificate.
10. Reversible printing 4 colors press for 4+0, 3+1 and 2+2.
11. Printing rolls should keep moving while machine halted
12. High dots presentation rate with high speed; clear and vivid stratification of printing; more stereoscopic and accurate
registering precision
2. CE Multicolor One Color Flexo Printing Machine is with double frequency inverter motors for control.
3. Machine is with 2 sets Delta brand frequency inverter for the motor control.
4. CE Multicolor One Color Flexo Printing Machine is with magnetic brake for the unwind tension control
5. 2 sets automatic tension controller for unwinding and rewinding, to provide constant tension control for unwinding and
rewinding. Easy operation.
6. All transmission rollers have been dynamic/static balance treated.
7. Machine is with emergency switch for urgent stop.
8. Machine is with automatic meter counter. When reached the preset length, machine stop and alarm.
9. All the electric appliances has been gained the CE certificate.
10. Reversible printing 4 colors press for 4+0, 3+1 and 2+2.
11. Printing rolls should keep moving while machine halted
12. High dots presentation rate with high speed; clear and vivid stratification of printing; more stereoscopic and accurate
registering precision
|
Main Technical Parameter
|
|
|
|
Max. Roll Width
|
800mm
|
|
|
Max. Printing Width
|
760mm
|
|
|
Printing Length
|
191-1000mm
|
|
|
Printing Colors
|
4colors
|
|
|
Printing Plate Lifting System
|
Hydraulic press control
|
|
|
Max. Mechanical Speed
|
100m/min
|
|
|
Max. Printing Speed
|
70-90m/min
|
|
|
Anilox Roller
|
Ceramic Roller
|
|
|
Dimension
|
5000m×1600×2400mm
|
|
Application Materials
CE Multicolor One Color Flexo Printing Machine is suitable for various materials roll to roll printing, like paper,
film(BOPP,PET,PE,OPP), Non woven fabric, woven bags, paper cups, adhesive labels, etc. Machine is widely used for shopping bag, paper bag, vest bag, garment bag printing.
film(BOPP,PET,PE,OPP), Non woven fabric, woven bags, paper cups, adhesive labels, etc. Machine is widely used for shopping bag, paper bag, vest bag, garment bag printing.
About Us
Production Process
Sample Room
Certificate
Packaging & Shipping
FAQ
Q:
: Are you a factory or trading company?
A: We are manufacturer, have our
own factory with
over 18 years
experiences
.We not only sell machine for you, but offer the best solutions.
Q: Where is your factory located? How can l visit?
A: Our factory is located in Rui'an City, Zhejiang Province, China, About one hour by air from Shanghai.All our clients, from home or abroad, are warmly welcome to visit us!
Q: What kind of quality certificate do you have?
A: We have CE certificate, SGS, ISO, etc.
Q: How does your factory do regarding quality control?
A:
Quality is the our focus
. From the begining till the end of machine manufacture, we will inspect every components before using. And machine will be tested after finished.
Q: What's the payment terms?
A: We usually do TT with 30% deposit, and 70% balance paid before machine delivery. Other ways like L/C, western union,etc are also acceptable.
Q: How about the delivery time?
A: Usually, our machines can be delivered within 30 working days.
