Quick Details
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
2310*1130*2.5mm
-
Panel Efficiency:
-
23%
-
Solar cell:
-
Monocrystalline Silicon Cells
-
Max. Power:
-
500W
-
Vmp:
-
40.0V
-
Imp:
-
12.5A
-
Voc:
-
50.0V
-
Isc:
-
13.3A
-
Maximum System Voltage:
-
600V
-
Weight:
-
8.4kg
-
Application:
-
RV Yacht Campervan Home Solar System
-
OEM Order:
-
Customer's LOGO and Label Print
Quick Details
-
Cell size:
-
182mmx91mm
-
Brand Name:
-
JINXYSOLAR
-
Model Number:
-
JXY-E500M
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
2310*1130*2.5mm
-
Panel Efficiency:
-
23%
-
Solar cell:
-
Monocrystalline Silicon Cells
-
Max. Power:
-
500W
-
Vmp:
-
40.0V
-
Imp:
-
12.5A
-
Voc:
-
50.0V
-
Isc:
-
13.3A
-
Maximum System Voltage:
-
600V
-
Weight:
-
8.4kg
-
Application:
-
RV Yacht Campervan Home Solar System
-
OEM Order:
-
Customer's LOGO and Label Print

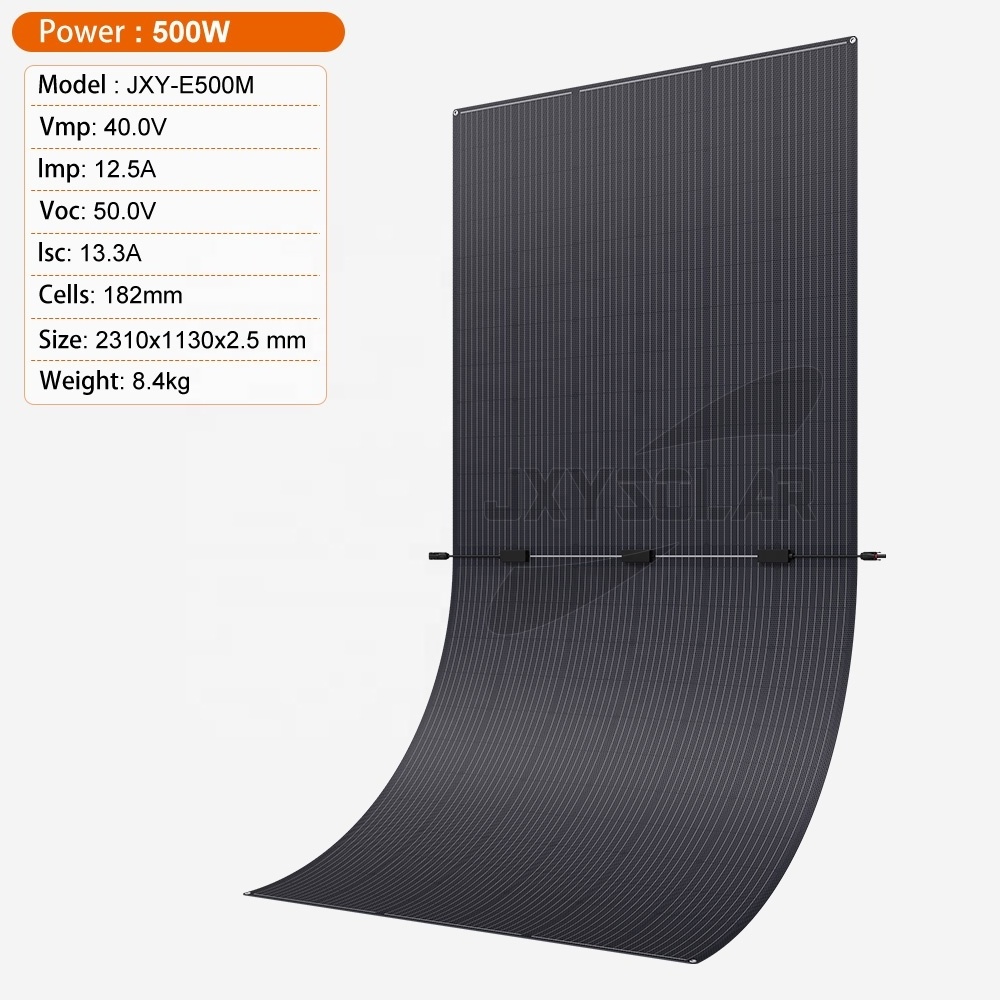

500 Watt 40 Volt Reliable Performance Flexible Solar Panels Maximum Power Yield Panel for Continuous Power Off-Grid Applications
Product Description
| ELECTRICAL CHARACTERISTICS | |
| Model | JXY-E500M |
| Maximum Power (Pmax) | 500W |
| Maximum Power Voltage (Vmp) | 40.0V |
| Open-circuit Voltage (Voc) | 50.0V |
| Maximum Power Current (Imp) | 12.5A |
| Short-circuit Current (Isc) | 13.3A |
| Cells Efficiency (%) | >23% |
| Operating Temperature | -40℃~85℃ |
| Maximum System Voltage | 600V DC (IEC) |
| Maximum Series Fuse Rating | 20A |
| Nominal Module Operating Temperature(NOMT) | 41±2℃ |
| Temperature Coefficient of Pmax | -0.35%/℃ |
| Temperature Coefficient of Voc | -0.27%/℃ |
| Temperature Coefficient of Isc | +0.048%/℃ |
|
STC: Irradiance 1000W/m2 , Cell temperature 25C, AM=1.5.
Tolerances of Pmax , Voc and lsc are within ±5% |
|
| MECHANICAL CHARACTERISTICS | |
| Solar Cell | Monocrystalline Silicon Cells (182mm*91mm ) |
| Number of Cells | 144(6*24) |
| Module Dimensions | 2310x1130x2.5 mm |
| Weight | 8.40kg |
| Backsheet | Black/White/Transparent |
| Frame | Frameless |
| Junction Box | IP 68 rated |
| Output Cables | 0.3M, 4.0mm² Photovoltaic cable |
| Connector | MC4 compatible |
