Quick Details
-
Brand Name:
-
OLYCOM
-
Product name:
-

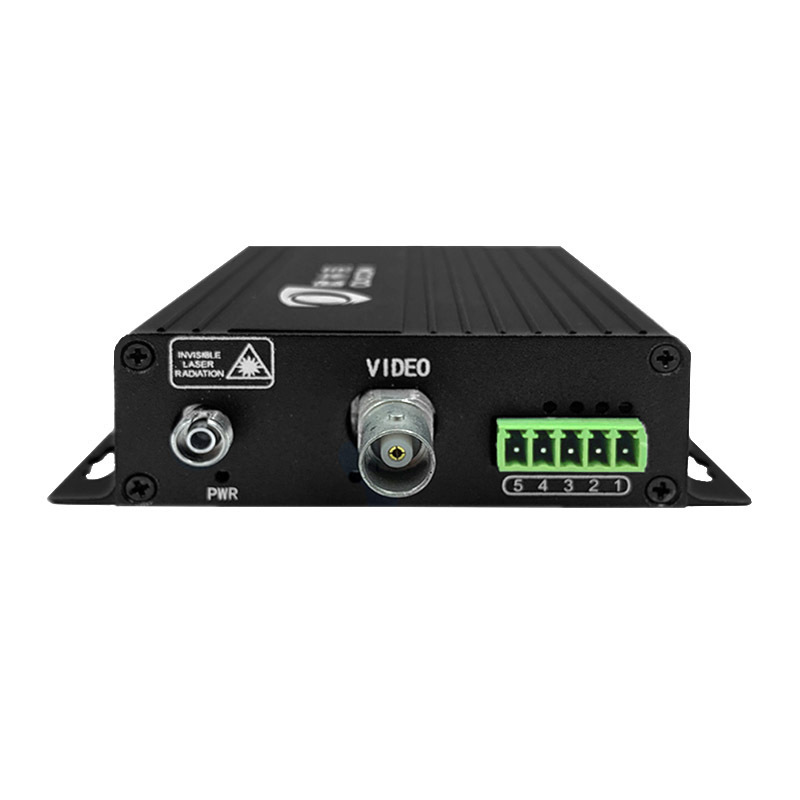

TVI/CVI/AHD fiber video receiver with RS485
-
Fiber Type:
-
FC port, SC ST optional
-
Certification:
-
ISO9001, FCC, CE
-
Dimensions:
-
120mm *105mm *28mm
-
Power supply:
-
DC 5V1A
-
Warranty:
-
1 Year
-
Distance:
-
20km, 1km/40km/60km optional
-
Weight:
-
0.30kg/piece (Net Weight)
-
OEM/Customization:
-
Available
-
Application:
-
Monitoring, IP and CCTV cameras
Quick Details
-
Type:
-
Fiber optic media converter
-
Model Number:
-
OM615-1V1DW-R
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OLYCOM
-
Product name:
-
TVI/CVI/AHD fiber video receiver with RS485
-
Fiber Type:
-
FC port, SC ST optional
-
Certification:
-
ISO9001, FCC, CE
-
Dimensions:
-
120mm *105mm *28mm
-
Power supply:
-
DC 5V1A
-
Warranty:
-
1 Year
-
Distance:
-
20km, 1km/40km/60km optional
-
Weight:
-
0.30kg/piece (Net Weight)
-
OEM/Customization:
-
Available
-
Application:
-
Monitoring, IP and CCTV cameras
Product Description
DC
5V 20km 1080P 1Ch TVI/CVI/AHD video optical converter with 1ch RS485 Data
Introduction
Key Features
* Low optical link loss–max 30dB
* Without EMI, RFI and ground loop
* Bi-di transmission on 1 fiber with WDM
* Available in standalone and 3U rack systems
* Without EMI, RFI and ground loop
* Bi-di transmission on 1 fiber with WDM
* Available in standalone and 3U rack systems
Product Details
Transmit AHD/HDTVI/HDCVI high-definition composite video for long-distance
720P, 960P, 1080P and other video signals are adaptive
Data, contact closure, audio and other signals are optional.
Specification
|
Optical
|
|
|
|
Wavelength
|
1310nm/1550nm
|
|
|
Output Power
|
-8~3dBm
|
|
|
Optic fiber
|
Single mode:20Km/40km, multimode:550m
|
|
|
Receiving sensitivity
|
-30dBm
|
|
|
Interface
|
FC standard, ST/SC optional
|
|
|
Video
|
|
|
|
Channel Quantity
|
1ch, from camera to control center
|
|
|
Video Input /Output Amplitude
|
typical 1Vpp (peak-to-peak), peak 1.2Vpp
|
|
|
Video Input Impedance
|
BNC 75Ω (unbalanced)
|
|
|
Digital Sampling
|
64MHZ
|
|
|
Digital Bandwidth
|
512MHZ
|
|
|
Differential Gain Phase
|
10%-90% APL DG<1% (typical)
|
|
|
Video Bit Width
|
8 bit
|
|
|
S/N ratio
|
>70dB
|
|
|
Interface
|
BNC
|
|
|
Electrical. Environmental. Mechanical
|
|
|
|
Operating voltage
|
DC 5V1A
|
|
|
Operating temperature
|
-20℃～+70℃
|
|
|
Storage temperature
|
-45℃～+85℃
|
|
|
Humidity
|
0~95%non-condensing
|
|
|
Dimension-standalone
|
120mm ×105mm ×28mm
|
|
|
Weight
|
0.30kg/piece (Net Weight), 1.00 kg/pair (Gross Weight)
|
|
Hot-selling Products
Application
Single fiber FC port fiber optic video converter ahd 1080p with 1ch RS485 data reverse
