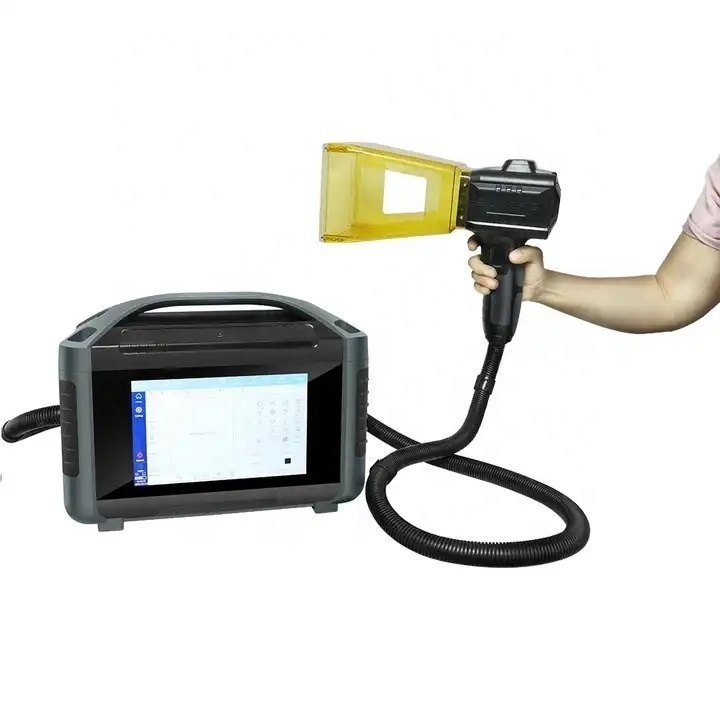

30W Plug in lithium batteries Handheld Fiber Laser marking Machine for metal plastic animal ear tag plastic bull's ear mark

30W Plug in lithium batteries Handheld Fiber Laser marking Machine for metal plastic animal ear tag plastic bull's ear mark

FOB Reference Price: Get Latest Price

≥1 Sets

US $1315

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Cooling Mode:: Air Cooling

Control Software:: holylaser

Place of Origin:: Zhejiang, China

Brand Name:: Holy Laser

Marking Head Brand:: customize

Weight (KG):: 13 KG

Marking Area:: optinal

Core Components:: Laser Source

Laser Power:: 20W/30W/50W/100W

Laser source:: IPG Raycus Max JPT

Laser wavelength:: 1064nm

Marking Speed:: 7000mm/s-20000mm/s

Marking Depth:: 0.01-2mm

Power supply:: AC220V +10% / 50HZ

Support Format:: DXF PLT JPG BMP PNG

Laser mode:: Fiber Laser Souce

power:: MORNSUN

battery:: SAMSUNG

Quick Details

Working Accuracy:: 0.01mm

Graphic Format Supported:: AI, PLT, DXF, BMP

Laser Type:: Fiber Laser

Cooling Mode:: Air Cooling

Control Software:: holylaser

Place of Origin:: Zhejiang, China

Brand Name:: Holy Laser

Marking Head Brand:: customize

Weight (KG):: 13 KG

Marking Area:: optinal

Core Components:: Laser Source

Laser Power:: 20W/30W/50W/100W

Laser source:: IPG Raycus Max JPT

Laser wavelength:: 1064nm

Marking Speed:: 7000mm/s-20000mm/s

Marking Depth:: 0.01-2mm

Power supply:: AC220V +10% / 50HZ

Support Format:: DXF PLT JPG BMP PNG

Laser mode:: Fiber Laser Souce

power:: MORNSUN

battery:: SAMSUNG

Product Overview

HSGQ S eries 2022 Summer Upgraded Fiber Laser Marking Machine

Fiber laser means a laser that uses a rare-earth-doped glass fiber as a gain medium. A fiber laser can be developed on the basis of an optical fiber amplifier: Under the action of pump light, high power density can be easily formed in the fiber, resulting in a laser of the laser working substance. The energy level "particle number reversal" can form a laser oscillation output when a positive feedback loop (constituting a resonant cavity) is appropriately added. Fiber laser marking machines use laser beams to mark permanent surfaces of various substances. The effect of marking is to reveal the deep material through the evaporation of the surface material, or to “burn” the trace by the light energy to cause the chemical physical change of the surface material, or burn off some of the material through the light energy, showing the required etching. Patterns, text, bar codes, and other types of graphics.

FEATURES AT A GLANCE

*Permanently mark, etch smooth, uneven metals including firearms, tools, parts, jewelry, PVC & Acrylics.

* Compact Scan head with lower maintenance.

* High reliability: laser lifetime is more than 100,000 working hours.

* Foot petal included for production job runs

* Chuck rotary size options for cylindrical objects (optional)

*Operation easily.
