2MP 72x Ultra Long Range Motion Detection Network Zoom Camera Module

2MP 72x Ultra Long Range Motion Detection Network Zoom Camera Module

FOB Reference Price: Get Latest Price

≥1 Pieces

US $2000

≥2 Pieces

US $1900

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Image Sensor:: 1/1.8" Progressive Scan CMOS

Shutter Time:: 1/25 to 1/100,000s

Focal Length:: 6.1-440mm;72x optical zoom;

Aperture Range:: F1.4-F4.7

Working Distance:: 500mm-4000mm (wide-tele)

Zoom Speed:: Approx. 5s (optical lens, wide-tele)

Video Compression:: H.265 / H.264 / MJPEG

Day &Night:: Auto(ICR) / Color / B/W

Working Environment:: -40°C to +60°C , Operating Humidity≤95%

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: SOAR VISION

Model Number:: SOAR- CB2272

Image Sensor:: 1/1.8" Progressive Scan CMOS

Shutter Time:: 1/25 to 1/100,000s

Focal Length:: 6.1-440mm;72x optical zoom;

Aperture Range:: F1.4-F4.7

Working Distance:: 500mm-4000mm (wide-tele)

Zoom Speed:: Approx. 5s (optical lens, wide-tele)

Video Compression:: H.265 / H.264 / MJPEG

Day &Night:: Auto(ICR) / Color / B/W

Working Environment:: -40°C to +60°C , Operating Humidity≤95%

Products Description

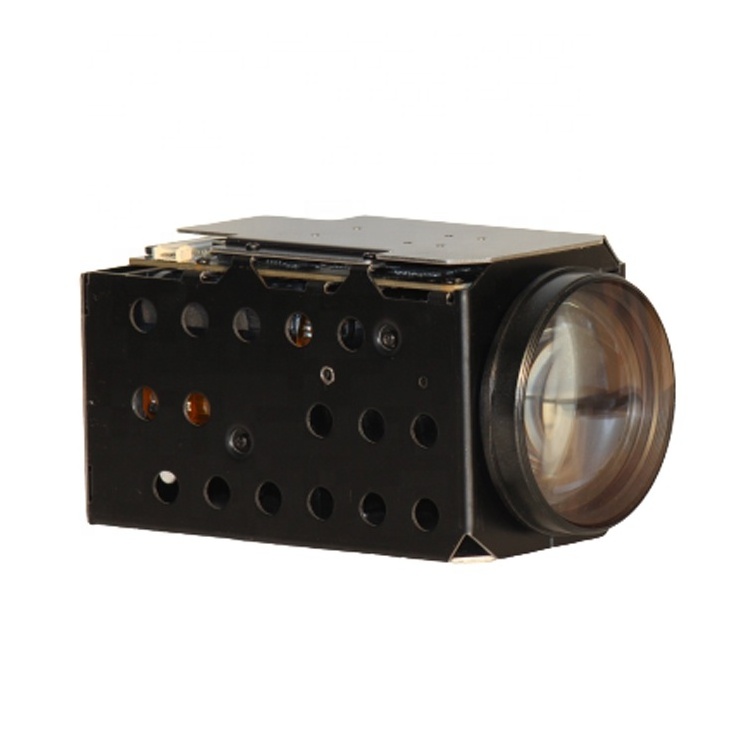

72X 2MP Starlight Network Camera Module

Model No.: SOAR-CB2272

Excellent Compatibility for PT Unit Integration

Soar 2MP Opitcal zoom camera module is a series of products, including multiple models. Different products are distinguished mainly according to CMOS, lens and application environment. From the lens, there are 04x, 06x, 26x, 33x, 37x, 46x, 52x, 72x, 86x, 90x, 92x; COMS has two types: 1/1.8” and 1/2.8”; different focal lengths and sensors also determine their respective usage scenarios. Please contact us for more information.

Key Features:

> Resolution : 2MP, 1920×1080;
> 1/1.9" Sony CMOS Sensor; IMX 385 CMOS;

> 72x optical zoom (6.1-440mm) > Comply with various VMS

> Support EIS and optical Defog
> Support customized OSD overlay.

> Comply with ONVIF protocol、 GB/T28181

> Customized function, like target Auto tracking, logo design;

Dimension:

Specifications

Model No.	SOAR- CB2272
Camera
Image Sensor	1/1.8” Progressive Scan CMOS
Min. Illumination	Color:0.0005 Lux @(F1.4,AGC ON);
	Black:0.0001Lux @(F1.4,AGC ON);
Shutter Time	1/25 to 1/100,000s
Day & Night	IR Cut Filter
Lens
Focal Length	6.1-440mm;72x optical zoom;
Digital zoom	16x digital zoom
Aperture Range	F1.4-F4.7
Field of View	H: 65.5-1.8° (wide-tele)
Working Distance	500mm-4000mm (wide-tele)
Zoom Speed	Approx. 5s (optical lens, wide-tele)
Compression
Video Compression	H.265 / H.264 / MJPEG
Audio Compression	G.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCM
Resolution	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Image Setting	Corridor mode, saturation, brightness, contrast and sharpness can be adjusted by client or browser
BLC	Support
Exposure Mode	Automatic exposure/aperture priority/shutter priority/manual exposure
Focus Control	Auto focus/one-time focus/manual focus
Area Exposure/Focus	Support
Defog	Support
EIS	Support
Day &Night	Auto(ICR) / Color / B/W
3D Noise Reduction	Support
Image overlay	Support BMP 24 bit image overlay, optional region
ROI	ROI supports one fixed region for each three-bit stream
Network
Network Storage	Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 128 GB; NAS (NFS, SMB/ CIFS)
Protocol	ONVIF(PROFILE S,PROFILE G) ,GB28181-2016
Smart Function
Behavior analysis	Transboundary detection, area intrusion detection, entry/exit area detection, loitering detection,
Interface
External interface	36pin FFC (Ethernet,RS485,RS232,CVBS,SDHC,Alarm In/Out)
General
Working Environment	-40°C to +60°C , Operating Humidity≤95%
Power supply	DC12V±25%
Consumption	2.5W MAX (ICR,4.5W MAX)
Dimensions	175.57578mm
Weight	950 g
