Concrete Flow Table Slump Cone Tamper rod

Model :  C192 KIT

Product Name : Manual Flow Table

1. Description:

Application :

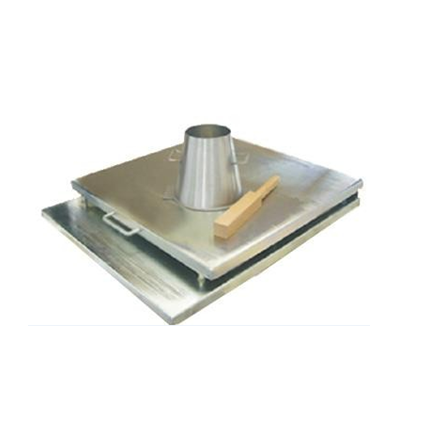

This apparatus consists of a double wooden table, steel cone and wooden tamping rod, the table, measuring 700×700mm, is hinged at one side and the upper part is covered with an engraved metal plate 2mm thick , the steel cone has a top diameter of 130mm , a base diameter of 200mm, and is 200mm high ,

All the meal parts are protected against corrosion

Usage : laboratory in civil engineer project

2. Standards: EN 12350-5  .

3. Specification

A double wooden table measuring 700x700 mm and hinged at one side.
The galvanized steel cone has a top 130 mm dia., base 200 mm dia., and is 200 mm high.

4. Apparatus structure

4.1  wooden table

4.2  metal cone

4.3  wooden tamper

5. packing details :

Overall dimension:  100*100*45cm   Weight Appx:  54kg  Packing material : plywood case outside,

6.Packing list
