- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
JJY240050
-
Product Name:
-
Power Adapter
-
Certificate:
-
CE FCC ROHS
-
Output voltage:
-
24VDC
-
Warranty:
-
1 Year
-
Protection:
-
OVP OCP OTP SCP
-
Application:
-
Electrical Appliance
-
Efficiency:
-
85%min
-
AC plug:
-
USA EURO UK AUS Plugs
-
Material:
-
ABS
-
DC Jack (plug):
-
5.5*2.1*10/5.5*2.5*10mm / Customerized
Quick Details
-
Output Type:
-
DC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JiaJiayuan
-
Model Number:
-
JJY240050
-
Product Name:
-
Power Adapter
-
Certificate:
-
CE FCC ROHS
-
Output voltage:
-
24VDC
-
Warranty:
-
1 Year
-
Protection:
-
OVP OCP OTP SCP
-
Application:
-
Electrical Appliance
-
Efficiency:
-
85%min
-
AC plug:
-
USA EURO UK AUS Plugs
-
Material:
-
ABS
-
DC Jack (plug):
-
5.5*2.1*10/5.5*2.5*10mm / Customerized

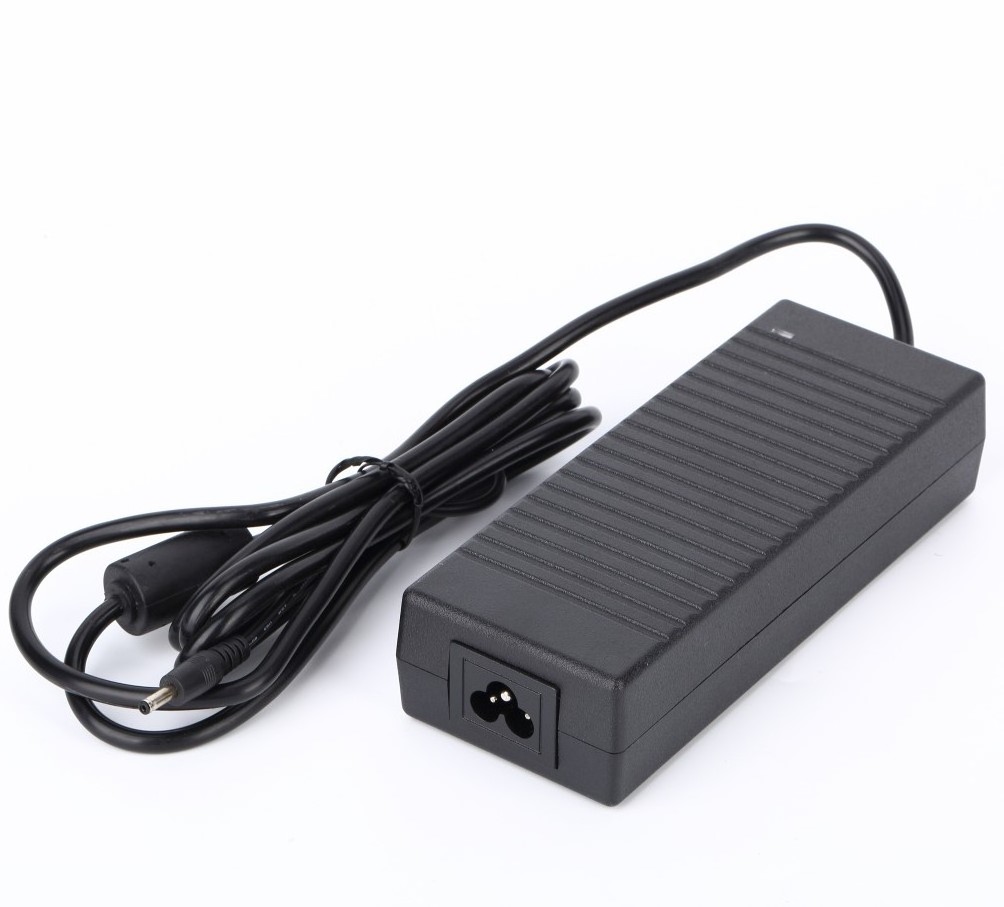

110V - 220V AC to DC Adapter 24V 5amp Switching Converter 5.5x2.1mm Plug
| Input | Voltage Range | 90~264Vac(Normal Reated Input Voltage is 100~240Vac) |
| Frequency Range | 47/63Hz | |
| Efficiency | 85%min | |
| Output | DC Voltage | 24V |
| Rated Current | 5A | |
| Rated Power | 120W | |
| Ripple&Noise | <240Mvp | |
| Voltage Tolerance | ±5% | |
| Line Regulation | ±1% | |
| Load Regulation | ±5% | |
| Protection | Over Load | Yes |
| Over Voltage | Yes | |
| OverTemperature | Yes | |
| Short Circuit | Yes | |
| Environment | Working Temp. | -10~+65℃ |
| Working Humidity | 20~90% RH non-condensing | |
| Storange Temp., Humidity | -20~+85℃, 10~95%RH | |
| OTHERS | Certificates | CE-EMC CE-LVD ROHS FCC etc. |
| MTBF | 40 K hrs min. MIL-HDBK-217F (25℃) | |
| PACKING | Brown box |
Product show:
DETAILS:
FAQ:
1. What DC connector you have?
2. Do you also have other AC plugs for other country?
3. What certificates do you have?
