Explosion-proof manual chain blocks play a crucial role in places with limited environments, operating where large equipment cannot. These ex proof hoists do not require electricity for operation, feature a simple internal structure, and are easy to assemble and disassemble, facilitating maintenance. They are portable and easy to operate with minimal effort.
- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
2000 kg
-
Product name:
-

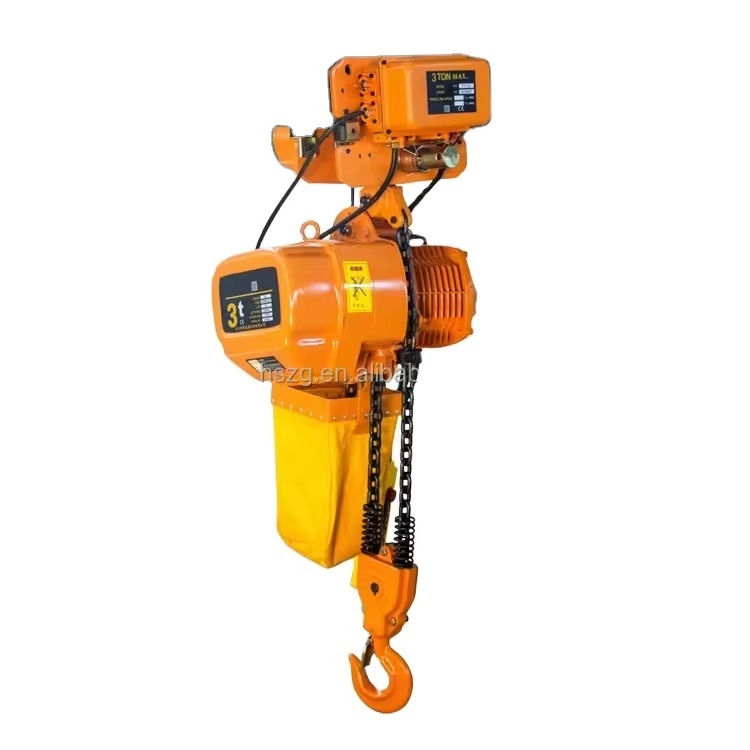

2Ton 3Ton 5Ton Single/Double speed Mini Electric Chain Hoist
-
Work duty:
-
M3
-
Brand:
-
Kuangyuan
-
Model:
-
Chain Electric Hoist
-
Control Method:
-
Pendant +Remote(Customized)
-
Material:
-
Q235B
-
Main electrical parts:
-
Schneider
-
Protection class:
-
IP54
-
Traveling speed:
-
20/min
-
Package:
-
Wooden Packing
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Huasui
-
Weight (KG):
-
2000 kg
-
Product name:
-
2Ton 3Ton 5Ton Single/Double speed Mini Electric Chain Hoist
-
Work duty:
-
M3
-
Brand:
-
Kuangyuan
-
Model:
-
Chain Electric Hoist
-
Control Method:
-
Pendant +Remote(Customized)
-
Material:
-
Q235B
-
Main electrical parts:
-
Schneider
-
Protection class:
-
IP54
-
Traveling speed:
-
20/min
-
Package:
-
Wooden Packing
Products Description
Explosion Proof Manual Chain Hoist
* Lifting weight: 0.5-35t;
* Lifting height: 3m (standard);
* Protection level: IP54
* Lifting speed: 0.7-8.9 m/min, or double speed
* Operating speed: 11, 21m/min, or double speed
* Working temperature: -20℃ to +40℃
* Control method: Handle control, remote control control
* Industrial voltage: 380v 50hz 3ph or customized
* Lifting height: 3m (standard);
* Protection level: IP54
* Lifting speed: 0.7-8.9 m/min, or double speed
* Operating speed: 11, 21m/min, or double speed
* Working temperature: -20℃ to +40℃
* Control method: Handle control, remote control control
* Industrial voltage: 380v 50hz 3ph or customized
These hoists are domestic mature product, simple structure, strong stability, high safety factor, long mechanical life, easy maintenance, and high cost performance.
Compared with the wire rope hoist, the electric chain hoist is smaller in size and lighter in weight, but the speed is slightly lower. If the lifting height is pretty high, the wire rope hoist is recommended.
Product Advantages
* Thickened casting shell： Thickened integral casting shell, impact-resistant, safe, and sturdy.
* Safety explosion-proof motor： Motor protection grade IP66/IP65, all motors have overheating protection, equipped with Class Finsulation and Class B temperature rise.
* Explosion-proof handle operation： Ergonomic design, explosion-proof level handle operation, safe and reliable.
* Compact and exquisite structure： Small size, light weight, low noise, aesthetically pleasing appearance, strong universality,the overall structure is convenient for disassembly and assembly, easy for maintenance.
* Customized: Provides customized cost-effective solutions.
* Safety explosion-proof motor： Motor protection grade IP66/IP65, all motors have overheating protection, equipped with Class Finsulation and Class B temperature rise.
* Explosion-proof handle operation： Ergonomic design, explosion-proof level handle operation, safe and reliable.
* Compact and exquisite structure： Small size, light weight, low noise, aesthetically pleasing appearance, strong universality,the overall structure is convenient for disassembly and assembly, easy for maintenance.
* Customized: Provides customized cost-effective solutions.
Parameter List
|
Type
|
Lifting Capacity( Ton)
|
Lifting Speed
(m/min)
|
Lifting Motor
|
|
Lifting Motor
|
Chain Specifications
|
Weight (kg)
|
||
|
|
|
|
Power(kw）
|
Phase
|
Voltage（V)
|
|
|
||
|
HHBB 0.5-01
|
0.5
|
7.2
|
1.1
|
3
|
380
|
6.3
|
32/46
|
||
|
HHBB 01-01
|
1
|
6.8
|
1.5
|
3
|
380
|
7.1
|
59/64
|
||
|
HHBB 01-02
|
1
|
3.6
|
1.1
|
3
|
380
|
6.3
|
49/53
|
||
|
HHBB 02-01
|
2
|
6.6
|
3.0
|
3
|
380
|
10.0
|
109/121
|
||
|
HHBB 02-02
|
2
|
3.4
|
1.5
|
3
|
380
|
7.1
|
68/73
|
||
|
HHBB 03-01
|
3
|
5.6
|
3.0
|
3
|
380
|
11.2
|
113//125
|
||
|
HHBB 03-02
|
3
|
4.4
|
3.0
|
3
|
380
|
10.0
|
127/139
|
||
|
HHBB 05-02
|
5
|
2.8
|
3.0
|
3
|
380
|
11.2
|
138/150
|
||
|
HHBB 7.5-03
|
7.5
|
1.8
|
3.0
|
3
|
380
|
11.2
|
192/208
|
||
Main Parts
Lifting Motor
ZD Conical Rotor Motor/ ZDS Conical Rotor Motor. The ZD 0.8～13KW hoisting motor is a cone-rotor three-phase asynchronous brake motor. The standard motor insulation class is Class B(can reach Class F and H based on the working requirements). The protection grade is IP44/IP54. It has the characteristics of good heat dissipation, long service life, safety and reliability, and can be
suitable for long-time work in high-intensity work situations.
suitable for long-time work in high-intensity work situations.
Lifting Reducer
It is the core component of the electric hoist. It adopts a three-stage helical gear transmission mechanism. The gears and gear shafts are made of heat-treated alloy steel, and the bearings are all rolling bearings. The box body and lid are made of high-quality cast iron (grey iron HT200 with good vibration resistance), tightly assembled and well sealed.
Drum Device
It is mainly composed of shell, drum, intermediate shaft device, rope guide device and limit guide rod device. The shell is rolled by steel plate, and the sleeve is made of high-quality cast iron or steel pipe. In addition, the left and right movement of the rope guide card plate pushes the guide rod device to move, so as to realize the limit stop protection of the electric hoist ascending and descending.
Hook Group
It conforms to the GB/T1005.1～5-98 standard. Forged with high-strength and high-quality carbon steel, such as DG20, with a safety factor > 5. 0.5-5t uses a single pulley hook device, 10t and larger tonnage adopts double pulley type hook device. The hook
surface is smooth and no defects such as cracks, folds, and overburn; there are no internal defects such as cracks, white spots,and other inclusions that affect the safety of use.
surface is smooth and no defects such as cracks, folds, and overburn; there are no internal defects such as cracks, white spots,and other inclusions that affect the safety of use.
Electric Traversing Trolley
The hoist trolley is composed of a traversing motor, reducer, wall plate, driven an driving wheels, flat nuts, bolts, and adjustment pads. If the lifting height exceeds 9m, 2 trolleys (one active and one driven) are required; for 10t and above, two
active trolleys are required. The motor adopts ZDY series cone rotor brake motor or soft start motor.
active trolleys are required. The motor adopts ZDY series cone rotor brake motor or soft start motor.
Protectiv Device
Fire off limit switch, heavy hammer limit switch, overload limiter, pressure loss and phase error protection, etc.
Making Process
A Standard Electric Hoist Will Be Produced In 15 Days.
Company information
FAQ
A: What is the best crane for my need?
B: We can customize all kinds of crane according to your requirements, so don't worry about your needs, just tell us your demands,and we can design and manufacture your own crane based on your needs.
A:Which industries do you service?
A:Which industries do you service?
B: We service many industries including machinery, metallurgy, electric power, railway, water conservancy, port, aviation,
military, auto, shipbuliding, petroleum, chemical, tabulation, coal, steel fabricators, pre-cast concrete.steel warehouse, marble and stone and other fields.
A:Which areas do you service?
military, auto, shipbuliding, petroleum, chemical, tabulation, coal, steel fabricators, pre-cast concrete.steel warehouse, marble and stone and other fields.
A:Which areas do you service?
B: We have very big market in China local market, at the same time, we have exported our cranes to all over the world, including European, Africa, Middle-East, Asia, North American, South America and so on. Totally more than 95 countries all over the world.
A: What types of overhead cranes do you supply?
B: We are a leading suppiler of overhead cranes and we can offer different types including the single girder top running crane, the single girder underslung crane and the double girders top ruuning crane.
A:Which cranes are most suitable for outdoors?
B: The gantry crane range is most suitable for outdoor type work. There are different types, including the single girder gantry crane and double girder gantry crane.
A:What international certifications has your company passed?
A: What types of overhead cranes do you supply?
B: We are a leading suppiler of overhead cranes and we can offer different types including the single girder top running crane, the single girder underslung crane and the double girders top ruuning crane.
A:Which cranes are most suitable for outdoors?
B: The gantry crane range is most suitable for outdoor type work. There are different types, including the single girder gantry crane and double girder gantry crane.
A:What international certifications has your company passed?
B: Our crane has passed CE, lSO, GOST, SGS, TUV, BV, and so on.
