Quick Details
-
Ink Type:
-
Dye Sublimation Textile Ink
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KONGKIM
-
Voltage:
-
AC 220V 50/60HZ (110V Optional)
-
Dimensions(L*W*H):
-
2950mmx740mmx710mm
-
Weight:
-
210 KG
-
Marketing Type:
-
New Product 2021
-
Machine Brand:
-
KONGKIM KK-1800 series
-
Print Head:
-
i3200 /4720 /DX5 Optional
-
Head Number:
-
1~4 heads optional
-
Print Resolution:
-
3.5pl / 3200dpi
-
Print Speed:
-
71 sqm/h (Double i3200 heads)
-
Ink Colors:
-
Cyan , Magenta , Yellow , Black
-
Application:
-
Sublimation paper , T-shirt , cloths ,tower , home textile... etc
-
Operating System:
-
Windows 7/ 8 / 10
-
RIP Software:
-
MainTop RIP
-
Data Interface:
-
Network / USB
Quick Details
-
Print Dimension:
-
1300mm, 1600mm, 1800mm, 1850mm, 1900mm, A3, A4
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Ink Type:
-
Dye Sublimation Textile Ink
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KONGKIM
-
Voltage:
-
AC 220V 50/60HZ (110V Optional)
-
Dimensions(L*W*H):
-
2950mmx740mmx710mm
-
Weight:
-
210 KG
-
Marketing Type:
-
New Product 2021
-
Machine Brand:
-
KONGKIM KK-1800 series
-
Print Head:
-
i3200 /4720 /DX5 Optional
-
Head Number:
-
1~4 heads optional
-
Print Resolution:
-
3.5pl / 3200dpi
-
Print Speed:
-
71 sqm/h (Double i3200 heads)
-
Ink Colors:
-
Cyan , Magenta , Yellow , Black
-
Application:
-
Sublimation paper , T-shirt , cloths ,tower , home textile... etc
-
Operating System:
-
Windows 7/ 8 / 10
-
RIP Software:
-
MainTop RIP
-
Data Interface:
-
Network / USB

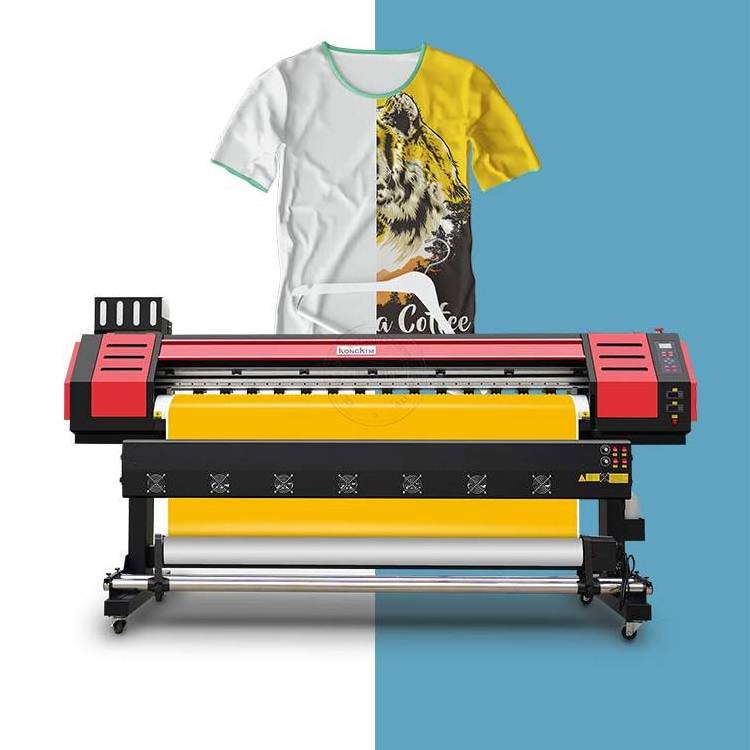

Digital Inkjet Printer For Sublimation Textile Fabric Sublimation Printing Machine With Best Quality
Digital Inkjet Printer For Sublimation Textile Fabric Sublimation Printing Machine With Best Quality
|
Technical Parameter
|
|
|
|
|
||||
|
Machine Model
|
|
KONGKIM KK-1800
|
|
|
||||
|
Max Print Width
|
|
1900mm
|
DX5 1pc
|
i3200 1pc
|
||||
|
Print Head
|
|
i3200/4720
|
i3200/4720
|
DX5
|
||||
|
Print Speed
(sqm/h)
|
Head Number
|
*2PCS
|
*1PC
|
*1PC
|
||||
|
|
Production Mode
|
2 pass 71
|
2 pass 37
|
4 pass 14
|
||||
|
|
Standar Mode
|
3 pass 47
|
3 pass 24
|
6 pass 10.5
|
||||
|
|
Quality Mode
|
4 pass 35
|
4 pass 18
|
8 pass 7.5
|
||||
|
Ink
|
|
Sublimation textile ink ( Cayn , Magenta , Yellow , Black )
|
|
|
||||
|
Aapplication
|
|
T-shirts, cloths ,towers, home textile, pants, shoes, hats, scarves, curtains, umbrellas, cups, skateboards ...
|
|
|
||||
|
Ink Supply
|
|
Auto Ink Supply system
|
|
|
||||
|
Maintenance Of The Print Head
|
|
One button cleaning printhead by solvent
|
|
|
||||
|
Rip-Software
|
|
MainTop RIP
|
|
|
||||
|
Data Interface
|
|
Network / USB
|
|
|
||||
|
Max carrying material weight
|
|
40KG
|
|
|
||||
|
Assistant Option
|
Feeding&Take up
|
Auto Feeding And Take Up System
|
|
|
||||
|
|
Heating System
|
Stage heating system include back, front heating
|
|
|
||||
|
|
Carriage Height
|
1.5 - 5 mm Distance to the printing platform , adjustable
|
|
|
||||
|
|
Othere Functions
|
Light for carriage position
|
|
|
||||
|
Printer Info
|
Operating voltage
|
AC 220V 50Hz/60Hz ( 110V Optional )
|
|
|
||||
|
|
Power
|
Idle power: 0.32KW ; Maximum power: 1.5KW
|
|
|
||||
|
|
Working Enviroment
|
Temperature: 18 - 28 ; Humi dity:40% - 70%
|
|
|
||||
|
|
Shipping Dimension
|
2950mm(L) x740mm(w) ×710mm(H) 210kg
|
|
|
||||
About Service : Product with good quality is very important,but after sales sevice also very important:
1 . We have professional engineers who have more than 6years, is very patient to support you if you have any questions;
2
.
We can support you 24hous for online training and guide you step by step;
3
.
If you need to support you in your local shop,our engineers have passport,we can suppor you for overseas training.
4.
We have showroom in Guangzhou, welcome to learn more here,we can discuss and guide face by face.
Welecome to contact Mavis at anytime : 0086-13539980722 ( WhatsApp & WeChat )
