Quick Details
-
Customized support:
-
ODM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
K-Bus
-
Model Number:
-
Touch Switch
-
Mechanical Life:
-
10 Years
-
Product name:
-
push button switch, push button switches, dual push button switch
-
Color/Housing:
-
Plastic/Glass/Metal, white/sliver/gray/yellow/blue/pink/black Switch
-
Function:
-
Switch, Dimming, Shutter, Programmable RGB LED, Scene Control, etc.
-
Operation Temperature:
-
-5℃- +45℃
-
On/off Times:
-
> 20,000
-
Installation of Wall Switch:
-
In a conventional 86mm wiring box
-
Power consumption:
-
<360mW
-
Certificate:
-
EIB/KNX CE RoHs
-
Type:
-
Electronic Switch, Intelligent Push Button, Wall Switch
-
Guangzhou push button switch Warrenty:
-
24 Months
Quick Details
-
Max. Current:
-
12mA
-
Max. Voltage:
-
21~30V DC , via the EIB bus
-
Network:
-
KNX
-
Customized support:
-
ODM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
K-Bus
-
Model Number:
-
Touch Switch
-
Mechanical Life:
-
10 Years
-
Product name:
-
push button switch, push button switches, dual push button switch
-
Color/Housing:
-
Plastic/Glass/Metal, white/sliver/gray/yellow/blue/pink/black Switch
-
Function:
-
Switch, Dimming, Shutter, Programmable RGB LED, Scene Control, etc.
-
Operation Temperature:
-
-5℃- +45℃
-
On/off Times:
-
> 20,000
-
Installation of Wall Switch:
-
In a conventional 86mm wiring box
-
Power consumption:
-
<360mW
-
Certificate:
-
EIB/KNX CE RoHs
-
Type:
-
Electronic Switch, Intelligent Push Button, Wall Switch
-
Guangzhou push button switch Warrenty:
-
24 Months
Welcome to Our Factory GVS

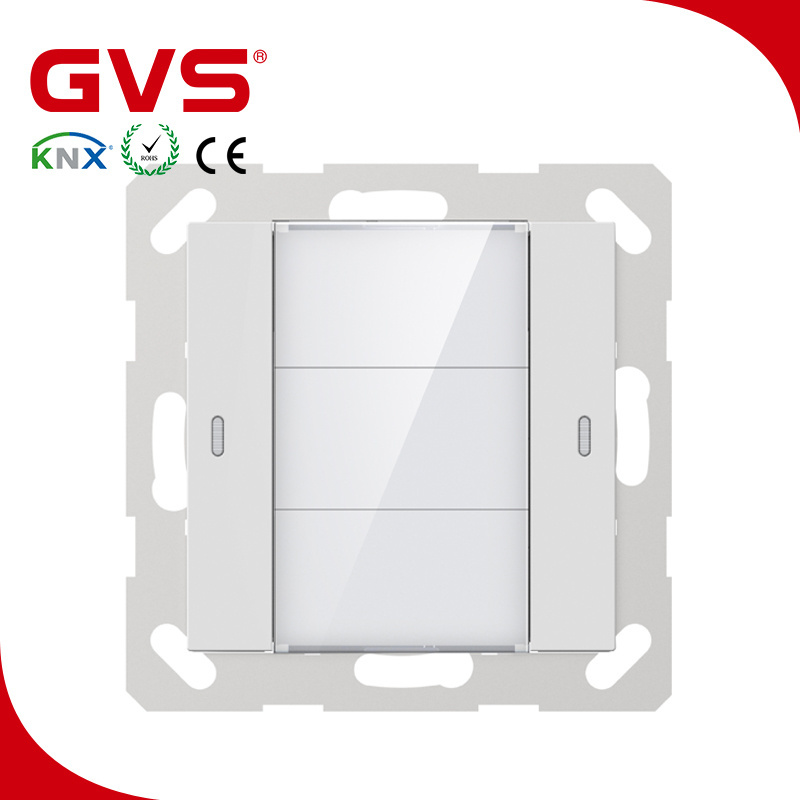

New K-Bus KNX EIB smart home automation Switching Dimming light shutter control Guangzhou push button switch-white/black/silver
| Product Name | push button switch, push button switches, dual push button switch | |
| Item Number |
CHKP-01/01.1.00 CHKP-02/01.1.00 CHKP-03/01.1.00 |
|
| Material | Plastic/Metal/Glass Housing Guangzhou push button switch | |
| Bus Voltage |
21-30V DC,via the EIB bus |
|
|
Current input |
<12mA |
|
|
Power consumption |
<360mW | |
|
Operating and display |
Corresponding 1 LED indication for each rocker switch, seven colors of displaying | |
|
Programming LED and button |
For assignment of the physical address |
|
|
Green LED flashing |
Display the device running normally |
|
|
On/off Times |
More than 20,000 |
|
|
Connection |
EIB/KNX | Bus connecting terminal (black/red) |
|
Installation |
According to the EMC and low voltage guideline | |
|
CE Norm |
According to the EMC and low voltage guideline |
|
|
Certification |
EIB/KNX certified |
|
Wall Switch Functions
- 1/2/3 Gang Guangzhou push button switch Models
- Programmable RGB LED
- Left/right buttons function can be used independently or in combination
- Scene control funtion KNX Guangzhou push button switch
- Temperature control function
- Over four object sequences switch function
- KNX Wall Switch Control support sending of customized value: 1 bit, 4 bits, 1 Byte, 2 Bytes and 4 Bytes
- Switching & Dimming Guangzhou push button switch
- Control of Blinds and Shutters
- Sending of Values, e.g. water line, brightness.
- Recall and storage scene
- step-type Switch
- Setting the RTC operation mode
- Multiple operation
- LED indication
- Wall Switch Materials Optional: Plastic, Metal, Glass
- KNX Push Button Colors: white/sliver/gray/yellow/blue/pink/black
New K-Bus KNX EIB smart home automation Switching Dimming light shutter control Guangzhou push button switch-white/black/silver
GVS , Professional manufacturer since 1999 , specilizing in KNX/EIB Smart Home/Office/Hotel/Building Solution and KNX Products.
Why choose us?
KNX
In order to transfer control data to all building management components, a system is required that does away with the problems of isolated devices by ensuring that all components communicate via one common language: in short, a system such as the manufacturer and application domains independent KNX Bus. This standard is based upon more than 20 years of experience in the market, amongst others with predecessor systems to KNX: EIB, EHS and BatiBUS . Via the KNX medium to which all bus devices are connected (twisted pair, radio frequency, power line or IP/Ethernet), they are able to exchange information.
Bus devices can either be sensors or actuators needed for the control of building management equipment such as: lighting, blinds / shutters, security systems, energy management, heating, ventilation and air-conditioning systems, signaling and monitoring systems, interfaces to service and building control systems, remote control, metering, audio / video control, white goods, etc.
All these functions can be controlled, monitored and signaled via a uniform system without the need for extra control centers.
GVS & KNX
- China's first company to introduce KNX standards
- KNX international manufacturers Member
- KNX Member
- The first training centres in China authorized by KNX Association
- Focus on R&D and manufacturing of KNX Products
- KNX manufacturing enterprises with strongest comprehensive strength in China
