Quick Details
-
Use:
-
Warehouse Rack
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
HGBA
-
Depth:
-
300-1000mm
-
Weight Capacity:
-
50-350kg
-
Width:
-
800-1800mm
-
Height:
-
1200-2500mm
-
Color:
-
Blue/Orange/Yellow/Grey
-
Hole Distance:
-
50mm
-
Application:
-
Industrial
Quick Details
-
Type:
-
Boltless / Rivet Shelving
-
Material:
-
Steel
-
Feature:
-
Corrosion Protection
-
Use:
-
Warehouse Rack
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
HGBA
-
Depth:
-
300-1000mm
-
Weight Capacity:
-
50-350kg
-
Width:
-
800-1800mm
-
Height:
-
1200-2500mm
-
Color:
-
Blue/Orange/Yellow/Grey
-
Hole Distance:
-
50mm
-
Application:
-
Industrial

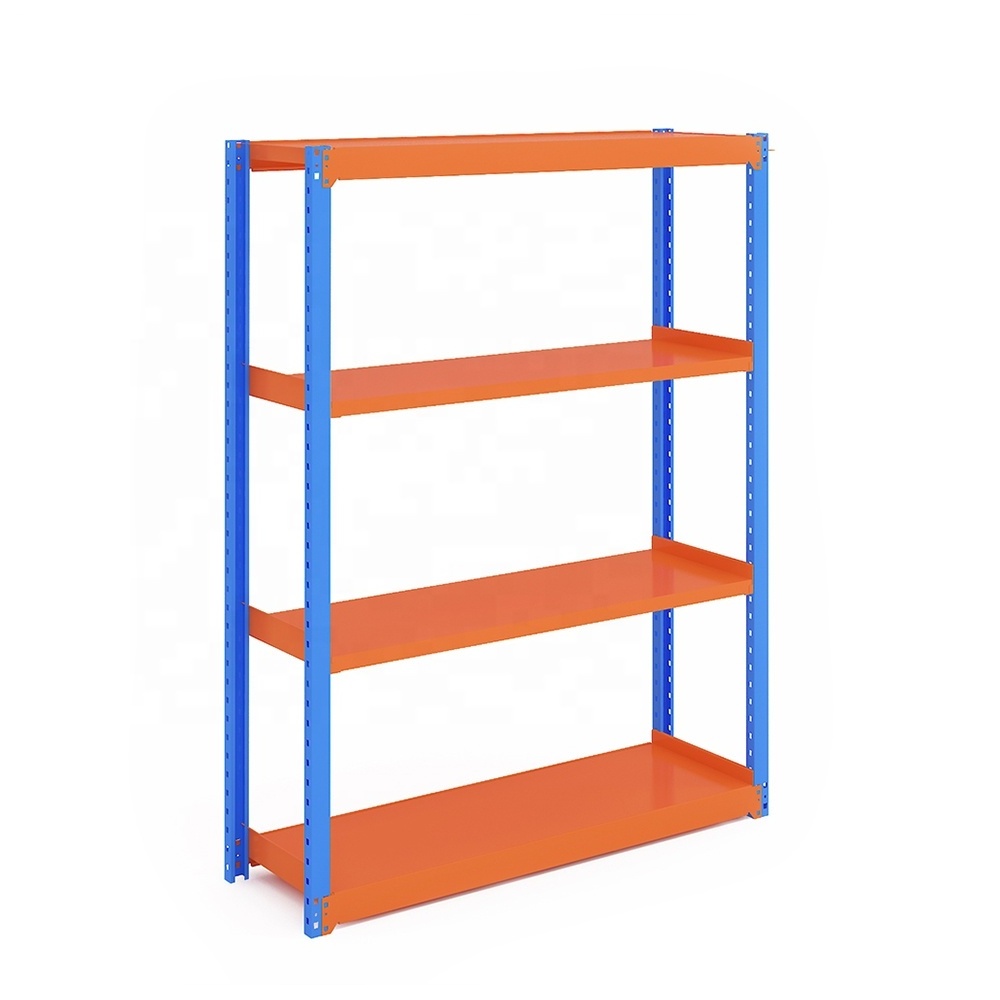

Long span shelving is widely used in factory and warehouse. It is for small items storage. Items are stored and pick-up manually. When the height is out of reach, it could be used with ladder .
Size and load are customized based on clients’ storage needs.
The main components are upright, beam, and shelf. Side/back board, side/back mesh and divider are optional. The rack can be tear down easily and reassemble to where you need it.
Product Information:
| Access Style | flexiable | ||
| Structure | boltless | ||
| Working Asile | around 1000mm,depends on customer's storage needs | ||
| Components | core components | upright,beam,shelf,shelf support | |
| optional components | back/side board,back/side mesh,tie, divider,etc | ||
| Core Components Specification | upright section | size | 55*55*1.5mm, 55*40*1.5mm |
| adjust step | 50mm | ||
| shelf thickness | 0.6mm,0.7mm | ||
| beam thickness | 1.5mm | ||
| Material | Q235(ss400),SPCC | ||
| Finish | Epoxy resin electrostatic spraying(powder coating) | ||
| Coating thickness | no less than 40um for average thickness | ||
Details
Projects Show
To suit different clients needs,HBrack use different storage method.Following are rules followed.
For container order : stretch film+carton board+packing belt+plywood stick+plywood pallet leg
For less than container order :plywood box or other that can keep the product safe during transportation
Other : based on clients' needs, such as vacum packing etc.
