Quick Details
-
Power:
-
74 kW
-
Place of Origin:
-
China
-
Brand Name:
-
LONKING
-
Maximum Digging Height:
-
3665 mm
-
Maximum Digging Depth:
-
2360 mm
-
Machine Weight:
-
13600 kg
-
Max Digging Radius:
-
2395 mm
-
Rated Speed:
-
11 km/h
-
Marketing Type:
-
New Product 2022
-
Product name:
-
Crawler Excavator
-
Model:
-
CDM6135
-
Operating weight:
-
13 Ton
-
Output power:
-
74/2200 KW/rpm
-
Work pressure:
-
31.4/34.3 Mpa
-
Max.digging force of bucket:
-
99 kN
-
Certification:
-
CE/ISO
Quick Details
-
Operating Weight:
-
13Ton
-
Bucket capacity:
-
0.36 m³, 0.36 m³
-
Engine Brand:
-
TOP Brand
-
Power:
-
74 kW
-
Place of Origin:
-
China
-
Brand Name:
-
LONKING
-
Maximum Digging Height:
-
3665 mm
-
Maximum Digging Depth:
-
2360 mm
-
Machine Weight:
-
13600 kg
-
Max Digging Radius:
-
2395 mm
-
Rated Speed:
-
11 km/h
-
Marketing Type:
-
New Product 2022
-
Product name:
-
Crawler Excavator
-
Model:
-
CDM6135
-
Operating weight:
-
13 Ton
-
Output power:
-
74/2200 KW/rpm
-
Work pressure:
-
31.4/34.3 Mpa
-
Max.digging force of bucket:
-
99 kN
-
Certification:
-
CE/ISO

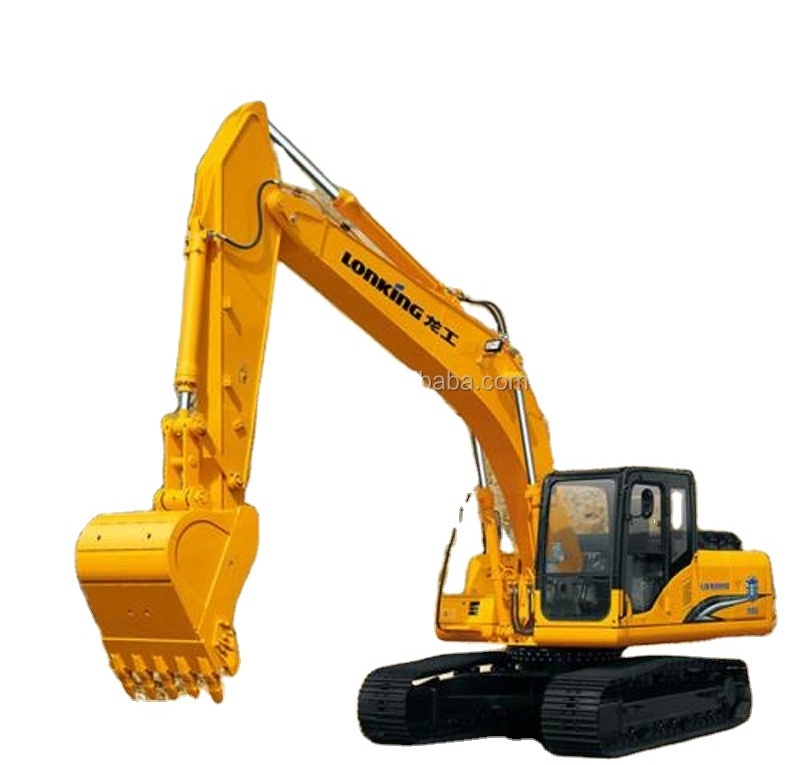

LONKING Crawler Excavator CDM6135 13Ton Mining Equipment Excellent Performance For Sale
Product Overview
13 ton Lonking Crawler Excavator CDM6135
2. The main hydraulic parts adopt imported configuration to ensure the reliability and stability of the vehicle performance
3. The heat dissipation system is fully upgraded, and the heat dissipation capacity is significantly improved to ensure the stable temperature of the engine and hydraulic system under various working conditions, and extend the service life of the engine and hydraulic components
4. The main valve spool is fully upgraded, the stability of the hydraulic system is greatly improved, and the control performance is more perfect
5. The use of a new type of cab, optimizes the strength and structure of the pilot control system through ergonomics, which greatly relieves the operator’s fatigue
6. Fully optimize the process of structural parts, use three-dimensional software and structural finite element analysis, and high-standard automatic welding technology to ensure the stability and durability of structural parts
7. The display and control system are upgraded, the response speed of the control system is faster, and the reliability is higher
8. The optimized arrangement of maintenance parts makes daily maintenance time-saving and labor-saving.
Product Paramenters
|
Model
|
LG6135/ CDM6135
|
|
|
||
|
Brand
|
Lonking
|
|
|
||
|
Original
|
Shanghai
|
|
|
||
|
Whole Machine
|
Self Weight
|
kg
|
13600kg
|
||
|
|
Bucket Capacity
|
m3
|
0.56
|
||
|
|
Capacity Range
|
m3
|
0.5-0.7
|
||
|
|
Ground Pressure
|
KN
|
45
|
||
|
|
Travel speed
|
KM/H
|
5.5/3.34
|
||
|
|
Rotating Speed
|
rmp
|
11.9
|
||
|
|
Gradeability
|
%
|
35
|
||
|
Engine
|
Model
|
|
Cumins QSB3.8
|
||
|
|
Power
|
KW
|
74KW/2200rpm
|
||
|
|
Fuel Capacity
|
L
|
270
|
||
|
|
Displacement
|
L
|
3.8
|
||
|
Hydraulic System
|
Working Pressure
|
Mpa
|
31.4/34.3
|
||
|
|
Flow capacity
|
L/min
|
120*2
|
||
|
|
Hydraulic Tank Capacity
|
L
|
159
|
||
|
Digging Force
|
The Max bucket Digging Force
|
KN
|
99
|
||
|
|
The max arm Digging Force
|
KN
|
72
|
||
|
Equipment
|
Boom length
|
mm
|
4600
|
||
|
|
Arm length
|
mm
|
2500
|
||
|
|
Bucket Radius
|
mm
|
1270
|
||
Product Configuration
