Quick Details
-
Brand Name:
-
Lermda
-
Power:
-
25-80hp
-
Dimension(L*W*H):
-
1240*1240*1140
-
Weight:
-
1000 KG
-
Used for:
-
Agricultural Farm
Quick Details
-
Marketing Type:
-
Hot Product 2021
-
Application:
-
fertilizer spreader
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Lermda
-
Power:
-
25-80hp
-
Dimension(L*W*H):
-
1240*1240*1140
-
Weight:
-
1000 KG
-
Used for:
-
Agricultural Farm

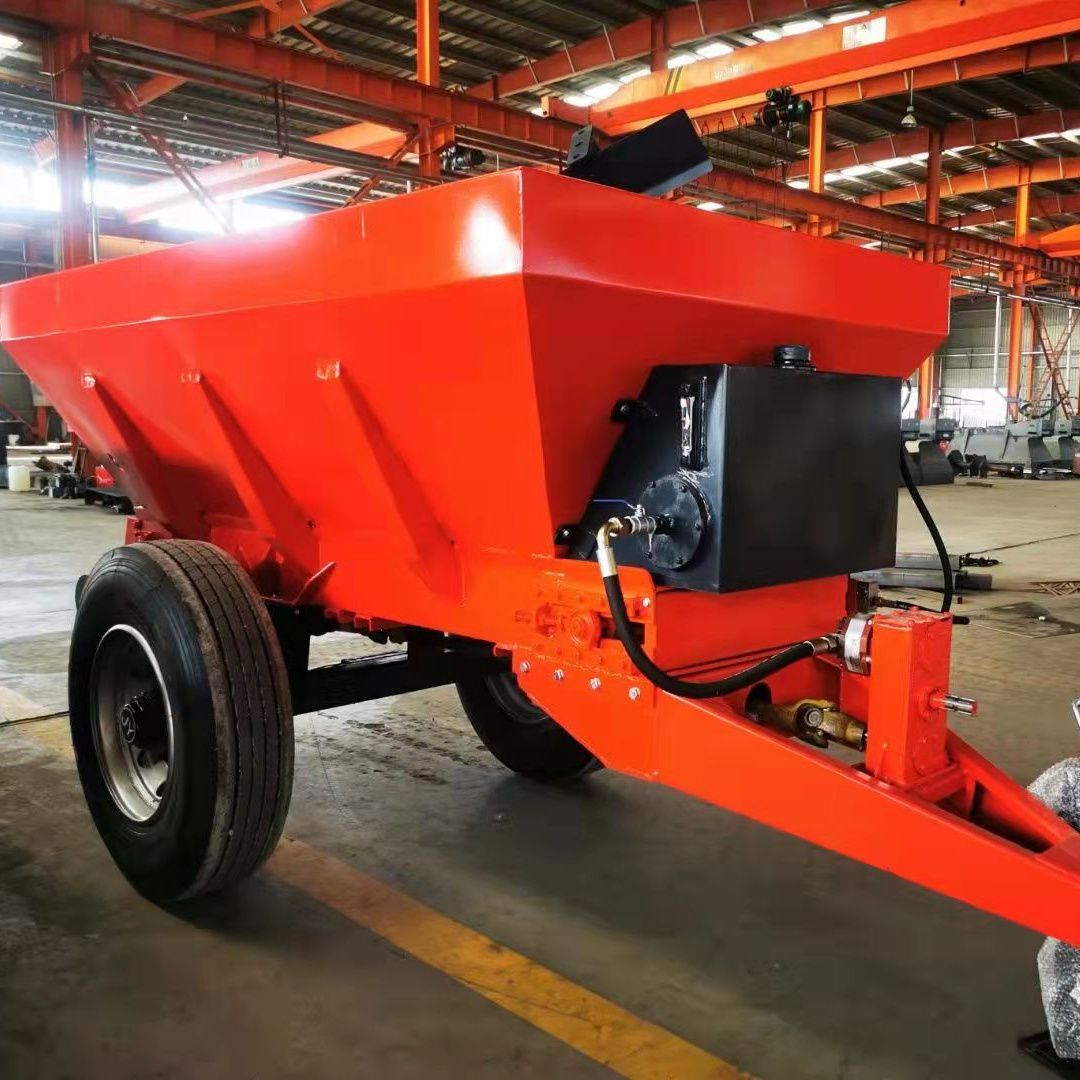

Fertilizer Spreader
Main Feature
1). The loading capacity is large, and the special heightening hole design provides convenience for users to increase the loading capacity.
2). The humanized design of the discharge port regulating valve can adjust the size of the fertilizer port according to the requirements of different fertilizer output of customers.
3). The design of the regulating valve controls the conveying speed of the chain. The larger the gear, the faster the chain
conveying speed and the larger the fertilizer flow rate.
2). The humanized design of the discharge port regulating valve can adjust the size of the fertilizer port according to the requirements of different fertilizer output of customers.
3). The design of the regulating valve controls the conveying speed of the chain. The larger the gear, the faster the chain
conveying speed and the larger the fertilizer flow rate.
----------
Product Introduction
---------
1.
Adjustable height of hole
The loading capacity is large, and the special heightening hole design provides convenience for users to increase the loading
capacity.
capacity.
2.
The hydraulic oil tank
The hydraulic tank provides power
3.
Speed regulation valve
Speed control valve 0-10, control the flow of hydraulic oil to control the size of the power.
4.Tire
Wear-resistant, load-bearing capacity, can be selected according to customer requirements of the double tire.
5.
Control valve
The humanized design of the discharge port regulating valve can adjust the size of the fertilizer port according to the requirements of different fertilizer output of customers.
|
Model
|
UNIT
|
2FGB-1.8Y
|
2FGB-2.5Y
|
2FGB-3.8Y
|
2FGB-7.6Y
|
|
Overall size（L*W*H）
|
mm
|
3800*1650*1750
|
4200*1800*1750
|
4800*2200*2050
|
5500*2200*2250
|
|
Loading capacity
|
m3
|
1.8
|
2.5
|
3.8
|
7.6
|
|
Total weight
|
Kg
|
960
|
1350
|
1610
|
1910
|
|
Spreading width
|
m
|
6-15
|
6-15
|
6-15
|
6-15
|
|
Standard tires
|
|
10-15
|
10-15
|
13.6-28
|
10.00-20
|
|
Tractor HP required
|
HP
|
25-50
|
30-60
|
50-80
|
80-120
|
---------Customized Color &ODM/OEM--------
We absolutely accept ODM/OEM order because we are factory you can require paint color for the machinery.
