Quick Details
Quick Details
-
Weight (KG):
-
1
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
REGIS

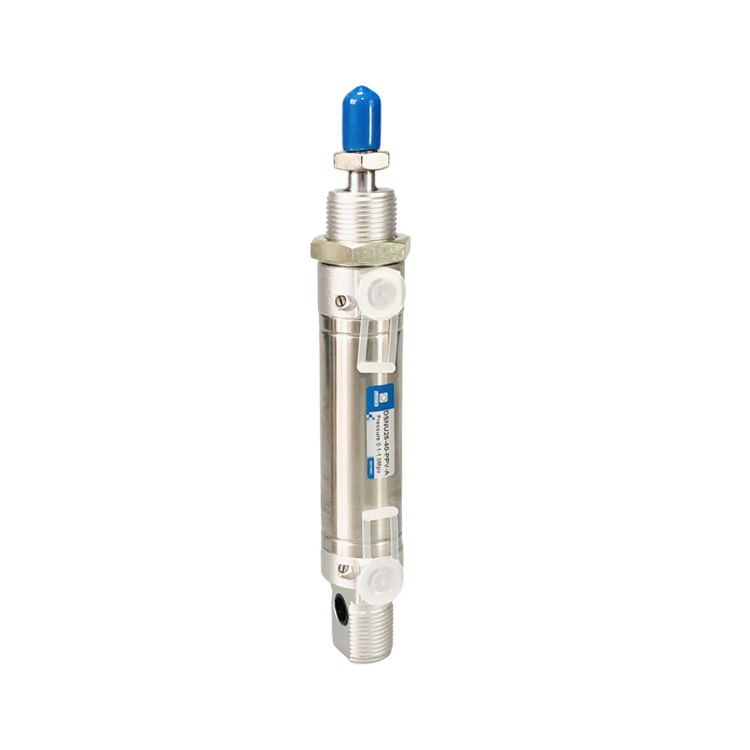

DSNU ISO 6432 Stainless Steel Double Acting Mini Pneumatic Cylinder
DSNU series mini-cylinder are designed and produced in accordance with ISO6432 international standards and CETOP RP52P standards. The cylinder bore is from 8mm to 40mm, hereinto the cylinder is with air cushion if the bore sizes below 25mm, which make the cylinder, have a smooth operation and extended product life. As to the bore size above 25mm in normal circumstances there is no buffer, if you need the buffer, please point it out.
1.Standard design, simple structure, low starting pressure, smooth motion.
2.Spray painted cylinder head and internal hard anodized cylinder body.
3.With slot on the cylinder barrel and end covers for magnet sensor mounting more conveniently.
4.Adjustable cushion on both cylinder end covers to make sure the cylinder works very smoothly, safely and with low noise.
5.Using self-lubricating bearing, the piston rod is lubrication free.
6.Precision grinding piston rod to guarantee longer working lifetime.
| Bore(mm) | 8 | 10 | 12 | 16 | 20 | |
| Acting type | Double acting, Single acting | |||||
| Working medium | Clean air(40um Filteration) | |||||
| Working pressure | 0.15 to 1.0Mpa | 0.1-1.0Mpa | ||||
| Working temperature | -20 to 80ºC | |||||
| Lubrication | No required | |||||
| Speed range | - | 10 to 100mm/s | ||||
| Cushion type | DSNU-P | Elastic cushion rings | ||||
| DSNU--PPV | - | Adjustable cushion | ||||
| DSNU-PPS | - | Self-adjustable cushion | ||||
| Cushion stroke | DSNU--PPV | - | 9mm | 12mm | 15mm | |
| DSNU--PPS | - | 12mm | 15mm | |||
| Port size | M5 | M5 | M5 | M5 | G1/8 | |
| Piston rod thread | M4 | M4 | M6 | M6 | M8 | |
| Mounting type | Direct mounting (variant MH only) | |||||
| With accessories | ||||||
| Bore(mm) | 25 | 32 | 40 | 50 | 63 | |
| Acting type | Double acting, Single acting | |||||
| Working medium | Clean air(40um Filteration) | |||||
| Working pressure | 0.1-1.0Mpa | |||||
| Working temperature | -20 to 80ºC | |||||
| Lubrication | No required | |||||
| Speed range | 10 to 100mm/s | 8 to 100mm/s | 5 to 100mm/s | |||
| Cushion type | DSNU--P | Elastic cushion rings | ||||
| DSNU-PPV | Adjustable cushion | |||||
| DSNU--PPS | Self-adjustable cushion | |||||
| Cushion stroke | DSNU-PPV | 17mm | 14mm | 18mm | 20mm | 21mm |
| DSNU-PPS | 17mm | 14mm | 18mm | 20mm | 21mm | |
| Port size | G1/8 | G1/8 | G1/4 | G1/4 | G3/8 | |
| Piston rod thread | M10×1.25 | M10×1.25 | M12×1.25 | M16×1.5 | M16×1.5 | |
| Mounting type | Direct mounting (variant MH only) | |||||
| With accessories | ||||||
