8KW Air Cooled Digital Display S9800DS Silent Diesel Generator ATS System 24v Dc Generator

8KW Air Cooled Digital Display S9800DS Silent Diesel Generator ATS System 24v Dc Generator

FOB Reference Price: Get Latest Price

≥100 Cartons

US $750

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: EXCALIBUR

Model Number:: S9800DS/DS3

Speed:: 3000 RPM

Engine Model:: SD650

Engine type:: Air-cooled 4-Stroke Diesel Engine

Generator Voltage:: Customized

Starting system:: Electricity Starting

Rated Output:: 8kva

Max Output:: 8.5kva

Fuel Tank Capacity:: 20L

Colour:: Customer`s Requirement

Certificate:: CE

Certification:: ce

Quick Details

Rated Voltage:: 220V/110V/230V/240V

Rated Current:: 8.3A

Frequency:: 50/60 HZ

Place of Origin:: Jiangsu, China

Brand Name:: EXCALIBUR

Model Number:: S9800DS/DS3

Speed:: 3000 RPM

Engine Model:: SD650

Engine type:: Air-cooled 4-Stroke Diesel Engine

Generator Voltage:: Customized

Starting system:: Electricity Starting

Rated Output:: 8kva

Max Output:: 8.5kva

Fuel Tank Capacity:: 20L

Colour:: Customer`s Requirement

Certificate:: CE

Certification:: ce

Product Overview

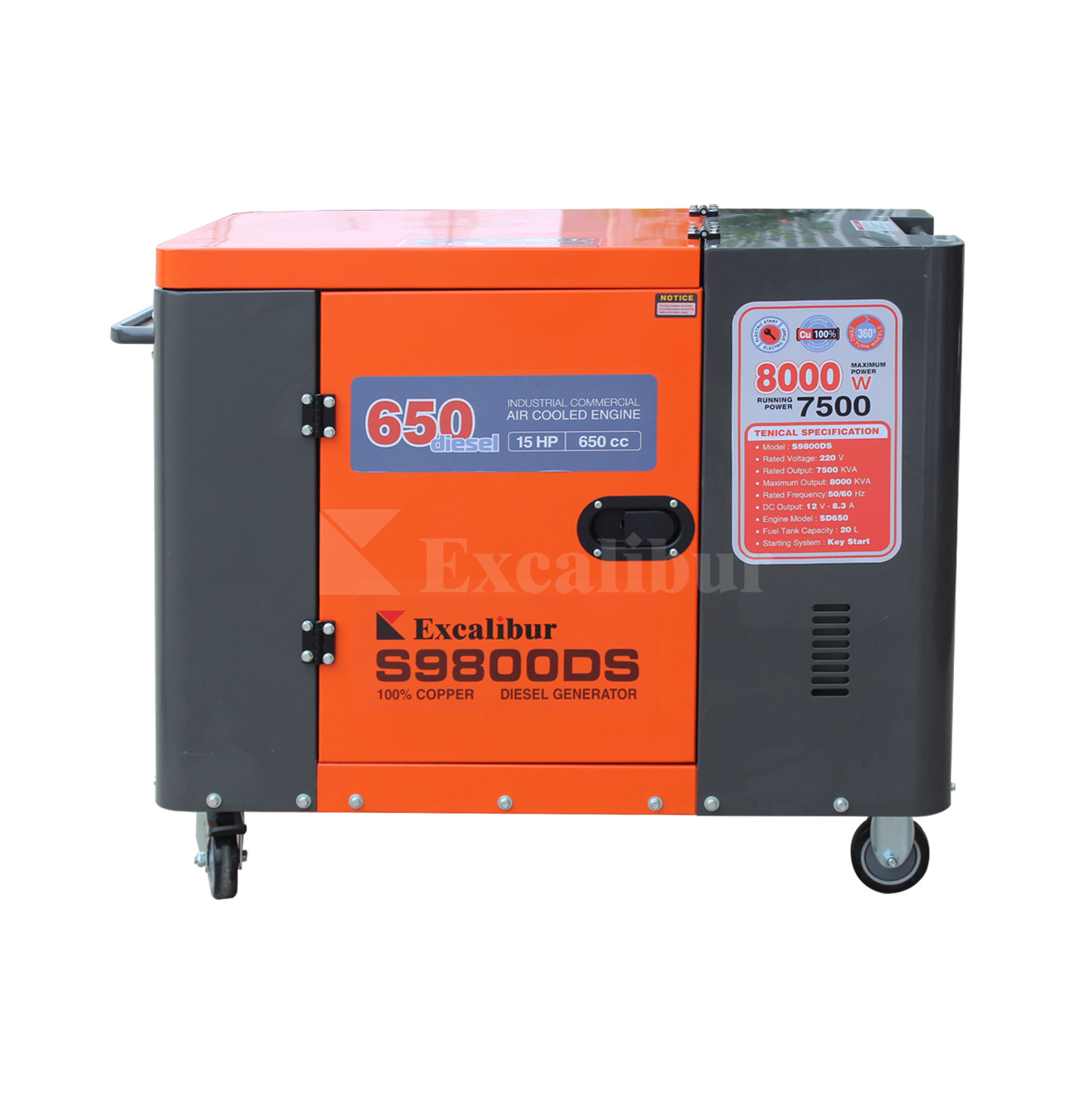

8KW Air Cooled Digital Display S9800DS Silent Diesel Generator ATS System

Product Features for Home use 2-10KVA air-cooled silent diesel generator

* 16HP diesel engine S198FE

* 100% copper wire alternator

* Silent canopy, portable model

* 7.5KVA output

* Four wheels ensure easy moving

* Electric start with 36AH battery

PRODUCT SPECIFICATIONS

Silent Diesel Generator Model

Item

S3500DS

S5000DS

S6500DS

S7500DS

S8500DS

S9800DS

S11000DS

Generator

Rated frequency(Hz)

50 / 60

Rated power(kW)

2.8 / 3.0

4.2 / 4.6

4.5 /5.0

5.0 / 5.5

6.0 / 6.5

7.5 / 8.0

8.0 / 8.5

Maximum power(kW)

3.0 / 3.3

4.6 / 5.0

5.0 / 5.5

5.5 / 6.0

6.5 / 7.0

7.5 / 8.0

8.0 / 8.5

Rated voltage(V)

120, 220, 230, 240, 220/380

Rated current(A)

12.73

19.09

20.45

22.73

27.27

34.09

36.36

Rated speed(r/min)

3000/3600

3000

Phase number

Single phase/ Three phase

Power factor

1 / 0.8

Ways of excitation

Self-excited constant voltage(AVR)

Manner of working

14.5 hours

9.7 hours

9.3

hours

8.5

hours

6.8 hours

6.1

hours

5.8

hours

Connection ways

Taper shaft rigid connection

Total mass(kg)

140

150

153

155

160

184

195

Overall dimension(mm)

950*540*710

1130*650*750

1070*715*770

Engine

Enbgine Model

S178FE

S186FE

S186FAE

S188FBE

S192FE

SD650

S1100FE

Types

Single cylinder, air cooled, 4-stroke, direct injection, Vertical

Displacement(ml)

296

406

418

456

498

633

668

Bore*stroke(mm)

78*62

86*70

86*72

88*75

92*75

98*84

100*85

Fuel type

Diesel fuel: 0#(summer); -10#(winter); -35#(cold)

Fuel consumption g/kw.h

≤275

Compression ratio

19:1

Lube

CD or SAE10W-30 or 15W-40

Start-up mode/Battery capacity

12V electric start/ 30Ah

12V electric start/ 36Ah

Fuel tank capacity(L)

Recommend Products

Our Advantages

Excalibur has the ability of daily output for 144pcs of silent diesel generators. We are looking for distributors for our silent diesel generators worldwide.

Packing & Shipping

All Excalibur Silent Diesel generator are packed in strong 7-layer cartons and with pallets.

Plywood packing is optional. Welcome to contact our sales person for more information.

Application

Company Introduction

Excalibur has been focused on manufacturing engine, open frame diesel generator, silent diesel generator, water pumps and construction machinery , such as plate compactors, floor saws, etc. for over 10 years. All staff from Excalibur are looking forward to cooperating with you.

FAQ

Q1:What is your MOQ of silent diesel generator? How long is your processing time for MOQ?

1 set. Within TWO working days or 48 hours...

Q2:Is the silent diesel generator customized?
Yes. Color, logo and packing can be customized according to customers design.... silent diesel generator

Q3:What is your company production capacity?
144 sets each day....

Q4:What is the delivery time for the silent diesel generator?
20 days after advance payment.If the items which you purchase is in stock we can send them out immediately....

Q5:How long is your warranty period for your silent diesel generator?
1 year or 1000 hours warranty whichever comes first except the wearing and tearing parts.We suggest customers buy some wearing and tearing parts in each order....

Q6:What are your payment terms?
T/T 30% deposit, 70% balance should be paid against the B/L copy.D/P for regular good reputation customers. Paypal is accepted for one set, but please discuss to our sales person first....

Q7:Is it alright to make customer's own brand name on the silent diesel generator ?
Sure, as long as you authorize us to use your brand on your behalf.We have over 10 years OEM/ODM experience....
