Quick Details
-
Brand Name:
-
DINGLI
-
Voltage:
-
220/380/415/420/440V
-
Power:
-
90KW
-
Dimension(L*W*H):
-
21.5*1.1M
-
Weight:
-
10 Tons
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
-
Name:
-
Reinforced culvert pipe making machine
-
Raw material:
-
Low-carbon Steel
-
Color:
-
Blue
-
Pipe shape:
-
Circle Pipe
-
Product name:
-
Advanced Technolgoy Concrete Cement Pipes Making Machine
-
Material:
-
345
-
Usage:
-
Road Pipe
-
Pipe diameter:
-
300mm~1200mm
-
Item:
-
Carbon Steel High Frequency Pipe Making Machine
-
Certification:
-
CE ISO9001
Quick Details
-
Pipe Material:
-
CONCRETE
-
Production Capacity:
-
6-10/hour
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DINGLI
-
Voltage:
-
220/380/415/420/440V
-
Power:
-
90KW
-
Dimension(L*W*H):
-
21.5*1.1M
-
Weight:
-
10 Tons
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
-
Name:
-
Reinforced culvert pipe making machine
-
Raw material:
-
Low-carbon Steel
-
Color:
-
Blue
-
Pipe shape:
-
Circle Pipe
-
Product name:
-
Advanced Technolgoy Concrete Cement Pipes Making Machine
-
Material:
-
345
-
Usage:
-
Road Pipe
-
Pipe diameter:
-
300mm~1200mm
-
Item:
-
Carbon Steel High Frequency Pipe Making Machine
-
Certification:
-
CE ISO9001

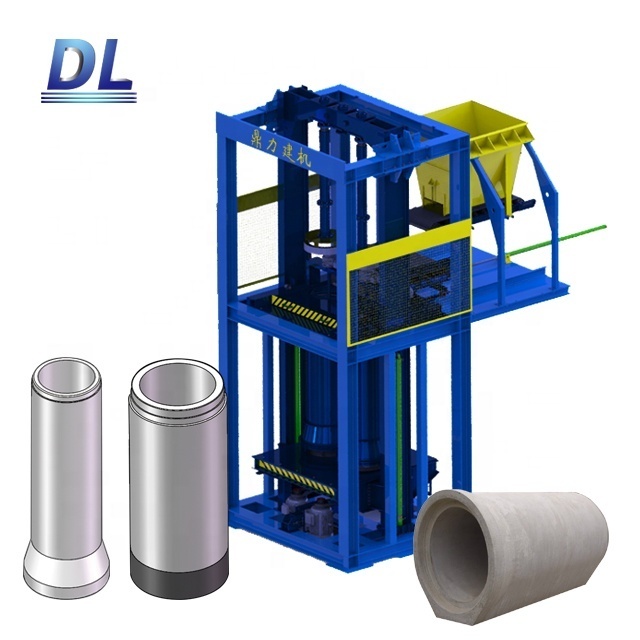

Vertical vibrating concrete pipe making machine is the most popular pipe machine present on the world.highest production efficiency and advanced technical design. manily include: main frame, pipe mould, core vibrator, chassis, automatic feeding system, hydralic rotary presser system, electric control system etc.
The whole pipe production line also need Concrete batching plant and elctric forklift truck .
Main feature:
1. Instantly demould: one specificatin pipe production only need one set pipe mold(inner mould and outer moul)
2. Max 6000RPM High frequency vibrating,no need second processing. other company only 4000RPM.
3. SKF original imported bearing, Schneider electric parts, Huade hydralic sytem. Q345 steel plate
4. 45# casting steel chassis.
5. The finishd concrete pipes there are higher strength and impactness.
6. Natural maintenance,save the boiler cost.
7. Could produce reinforced and non-reinforced concrete pipes with base and non-circular
8. Could produce anti-corrosion lining concrete pipes
|
Specification
|
Diameter
|
|
Length
|
|
Type
|
|
Mouth type
|
|
|
|||||||||
|
|
Min
|
Max
|
Min
|
Max
|
Single
|
Double
|
Socket
|
Rabbet
|
F type
|
|||||||||
|
XZ2400
|
300
|
1200
|
2000
|
2500
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||||||
|
Note: other specificatin could custome the machine according to customer's requirements.
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Detailed Specification
|
Production Capacity
|
Production cycle time
|
The Number of produced at the same time
|
|
Ø300mm*2000mm
|
200pcs
|
2min
|
2pcs
|
|
Ø400mm*2000mm
|
200pcs
|
2min
|
2pcs
|
|
Ø500mm*2000mm
|
200pcs
|
2min
|
2pcs
|
|
Ø600mm*2000mm
|
150pcs
|
3min
|
2pcs
|
|
Ø800mm*2000mm
|
50pcs
|
4min
|
1pcs
|
|
Ø900mm*2000mm
|
45pcs
|
4min
|
1pcs
|
|
Ø1000mm*2000mm
|
40pcs
|
4min
|
1pcs
|
|
Ø1200mm*2000mm
|
30pcs
|
5min
|
1pcs
|
Rotary pressure system
electric forklift truck.
45# casting steel Chassis
SKF bearings
Core vibrator
Schneider electric control system.
Huade hydralic system
Top Quality
China big steel plate material
World and China famous machine component
High precision machanical processing equipments
Many years experiences workshop workers
Perfect welding technology
Most Advanced Design
Reasonalbe Price
We don't sell highest price machine
We don't sell lowest price machine
We sell most reasonable price machine
