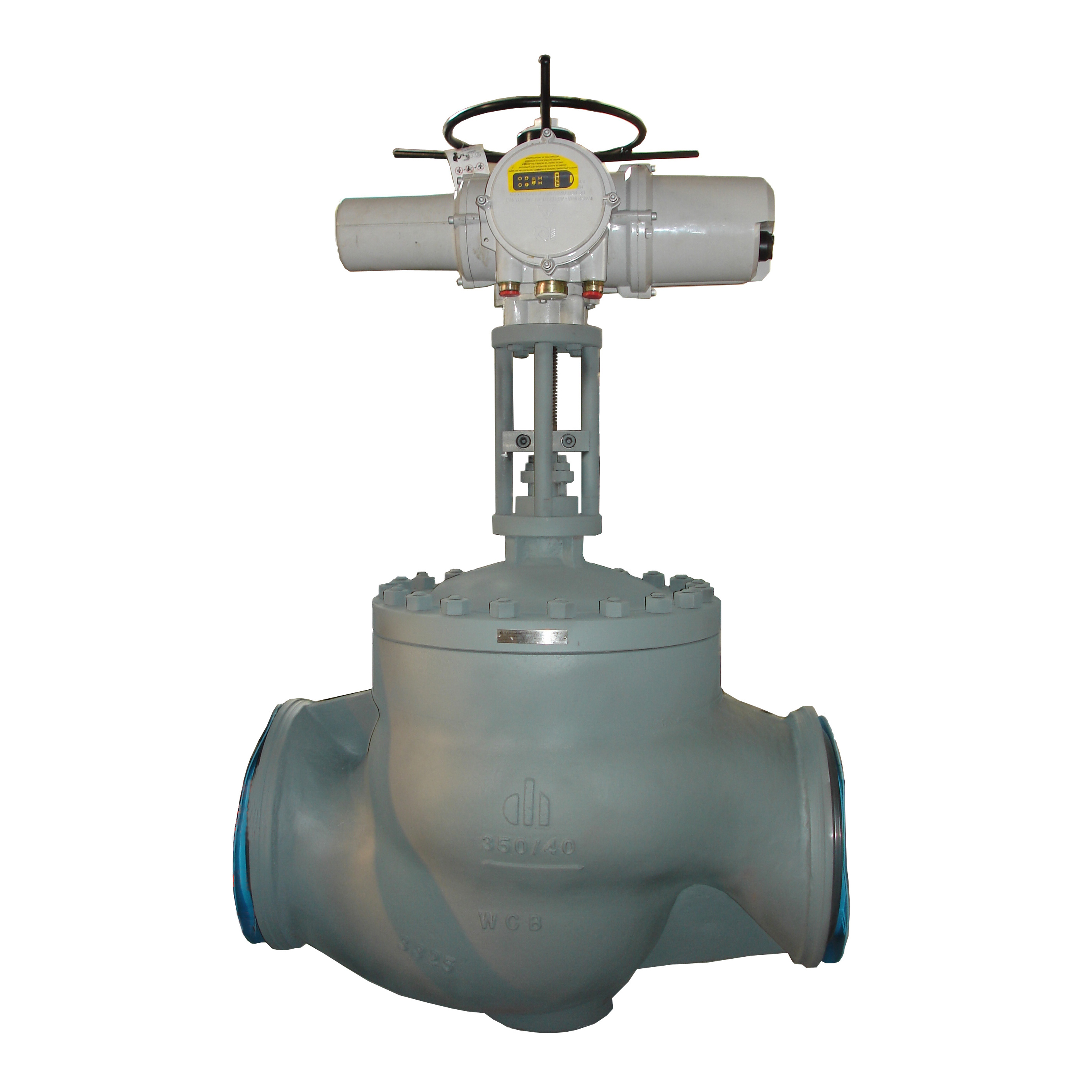

Control Valve Feed water Heater Level Control Valve

Control Valve Feed water Heater Level Control Valve

FOB Reference Price: Get Latest Price

≥2 Pieces

US $800

≥5 Pieces

US $700

≥10 Pieces

US $600

≥20 Pieces

US $399

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: MA600 Series

Brand Name:: DELAN

Standard or Nonstandard:: Nonstandard

Certificate:: ISO9001 CE

Body material:: Forged/Casting/A105/WB36/F22/F91/F92/F304/F316/718/625/WCB/WCC/WC9/WC6

Color:: Customer's Request

Connection:: Flange Ends and BW

Name:: low pressure Flow control valve

Standard:: ANSI B16.34 NB/T47044 ASME B16.104

Medium:: water,oil,gas,steam

Size:: 1''-20''

Quick Details

Port Size:: 1

Warranty:: 18 months

Place of Origin:: Jiangsu, China

Model Number:: MA600 Series

Brand Name:: DELAN

Standard or Nonstandard:: Nonstandard

Certificate:: ISO9001 CE

Body material:: Forged/Casting/A105/WB36/F22/F91/F92/F304/F316/718/625/WCB/WCC/WC9/WC6

Color:: Customer's Request

Connection:: Flange Ends and BW

Name:: low pressure Flow control valve

Standard:: ANSI B16.34 NB/T47044 ASME B16.104

Medium:: water,oil,gas,steam

Size:: 1''-20''

Products Description

MA Series Control Valve

Performance Parameters
◆Diameter：DN15~DN500
◆Pressure：PN16~PN100
◆Flow characteristics：
1、Quick opening

2、Linear

3、Equal percentage
◆Structure：
1、Single seat
2、Sleeve
◆Body Material：WCB、WC6、WC9、CF8,etc
◆Application：Electric power, petroleum , petrochemical, water & steam flow rate adjustment . extraction system ,HP&LP heater
deaerator, condenser , chemical water

Product Paramenters

Valve Size			A						B	G（MAX）
Valve Size				Flange				BW	B	G（MAX）
mm	inches	150lb、PN16	300lb、PN40	600lb、PN63、PN100	150lb、300lb、600lb	mm	Globe Type
25	1"	184	197	210	210	54	60
40	1-1/2"	222	235	251	251	54	71
50	2"	254	267	286	286	54	78
65	2-1/2"	276	292	311	311	54/71	90
80	3"	298	317	337	337	54/71	97
100	4"	352	368	394	394	71	129
150	6"	451	473	508	508	71/90	162
200	8"	543	568	610	610	90	191
250	10"	673	708	752	752	90	250
300	12"	737	775	819	819	90	292
350	14"	889	927	972	1029	90	327
400	16"	1016	1057	1108	1108	90	370

Item	Size	Operation Temperature	Type	Pressure Class	Body Material	Operation	Leakage Level
Control Valve	1/2" ~24"	-29℃ ~628℃	Globe Angle	150LB ~4500LB	WCB WC9 CF8 CF8M	Manual/ Pneumatic/ Electric/ Hydraulic	IV/V/VI
Attemperator Spray Control Valve	1/2" ~6"	-29℃ ~425℃	Globe Angle	150LB ~4500LB	WB36 A105 F22		Manual/ Pneumatic/ Electric/ Hydraulic	V
Feedpump Recirculation Valve	1" ~12"	-29℃ ~425℃	Globe Angle	150LB ~4500LB	WB36 A105 F22		Manual/ Pneumatic/ Electric/ Hydraulic	MSS-SP61
Globe Valve	3/8‘’ ~4''	-29℃ ~680℃	Globe Y-type	150LB ~4500LB	CF8C CF8M 316H 347H		Manual/ Pneumatic/ Electric/ Hydraulic
Check Valve	3/8‘’ ~4''	-29℃ ~680℃	Globe Y-type	150LB ~4500LB	CF8C CF8M 316H 347H		Manual/ Pneumatic/ Electric/ Hydraulic
Forged Steel Gate Valves	1/2" ~30"	-29℃ ~628℃	Parallel double gate	150LB ~4500LB	CF8C CF8M 316H 347H		WB36/A105/F22/F91/F92		Manual/ Pneumatic/ Electric/ Hydraulic
