Quick Details
-
Brand Name:
-
HENGTONG
-
Model Number:
-
HT-SSL-50
-
Beam Angle(°):
-
120
-
CRI (Ra>):
-
75
-
Input Voltage(V):
-
DC12V
-
Lamp Luminous Flux(lm):
-
5000
-
Working Temperature(℃):
-
-30 - 60
-
light pole height:
-
8m;Q235 steel, disposable bend
-
light pole treatment:
-
hot-dip galvanized and spray coated
-
solar panel conversion rate:
-
Poly-crystalline silicon 17.5%; Mono-crystalline silicon18.5%
-
solar panel front Glass:
-
Low Iron, High Transmission, 3.2mm Tempered glass
-
Lampshade:
-
Toughened glass
-
Wind bearing:
-
60m/s(200kg/sq.m)
-
light pole thickness:
-
4mm
-
Solar panel junction Box:
-
IP65 rated, with MC4 connector
-
Battery:
-
gel battery; 3-5 years maintenance-free;
Quick Details
-
Warranty(Year):
-
3
-
Lighting solutions service:
-
Lighting and circuitry design, Onsite metering, LitePro DLX layout, Agi32 layout, Project Installation
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HENGTONG
-
Model Number:
-
HT-SSL-50
-
Beam Angle(°):
-
120
-
CRI (Ra>):
-
75
-
Input Voltage(V):
-
DC12V
-
Lamp Luminous Flux(lm):
-
5000
-
Working Temperature(℃):
-
-30 - 60
-
light pole height:
-
8m;Q235 steel, disposable bend
-
light pole treatment:
-
hot-dip galvanized and spray coated
-
solar panel conversion rate:
-
Poly-crystalline silicon 17.5%; Mono-crystalline silicon18.5%
-
solar panel front Glass:
-
Low Iron, High Transmission, 3.2mm Tempered glass
-
Lampshade:
-
Toughened glass
-
Wind bearing:
-
60m/s(200kg/sq.m)
-
light pole thickness:
-
4mm
-
Solar panel junction Box:
-
IP65 rated, with MC4 connector
-
Battery:
-
gel battery; 3-5 years maintenance-free;
Product Description

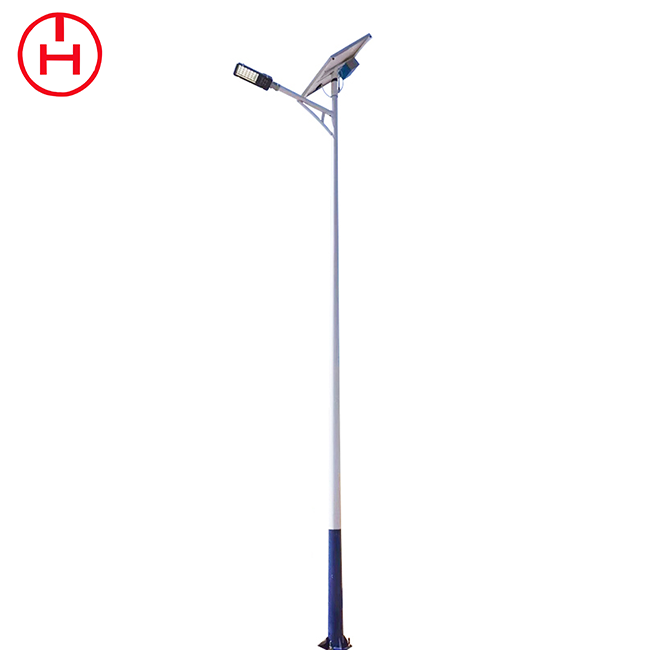

IP65 IP Rating and Street Lights Item Type solar garden lighting high mast components pole light
|
Light source height from the ground
|
8m
|
|
|
||
|
The range of the light source
|
high power leds
|
|
|
||
|
Solar cells
|
high conversion rate monocrystalline silicon or polycrystalline silicon solar cell components
|
|
|
||
|
Battery
|
fully sealed maintenance-free lead-acid batteries
|
|
|
||
|
Control system
|
microcomputer intelligent control
|
|
|
||
|
Lighting time
|
10 to 12 hours
|
|
|
||
|
Applicability
|
sunshine time is more than 2200 hours of region
|
|
|
||
|
Ambient temperature
|
- 30 degrees to 60 degrees
|
|
|
||
|
Light pole material
|
for the high quality steel, hot dip galvanized coating after surface treatment
|
|
|
||
*The light energy into electrical energy efficiency Solar panels constituted by a number of composite units, each unit produced of semiconductor optical polar PN, convert light energy into electrical energy.
*Adopt high performance, free maintenance battery, can be worked in 5 continuous days without sun and wind.
