Electric reeling machine/cylindrical beading machine/small round tube flanging machine

Electric reeling machine/cylindrical beading machine/small round tube flanging machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

After-sales Service Provided:: Engineers available to service machinery overseas

Name:: round duct grooving machine

Model:: LH-15

Power:: 0.75kw

Weight:: 90kg

Thickness:: 1.2mm

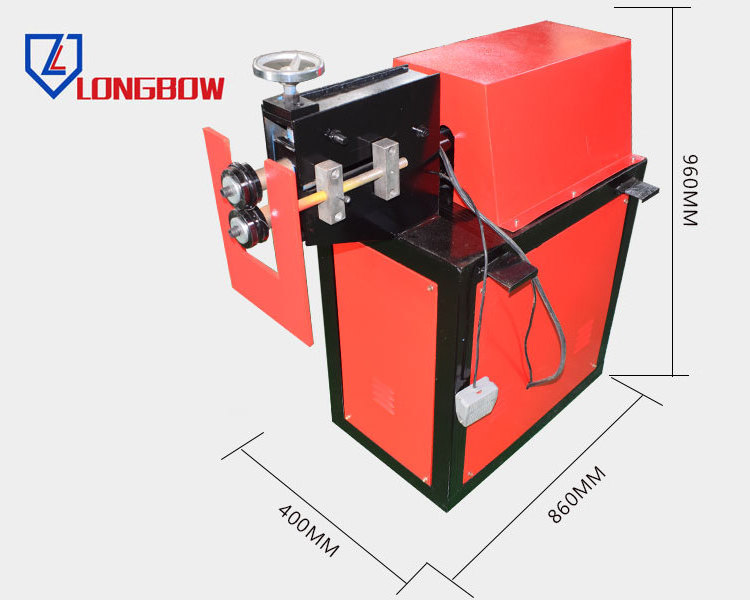

Dimension:: 400*860*960mm

function-01:: round beading and flange

function-02:: roll cutting and beading

Raw Materia:: Galvanized steel sheet

Quick Details

Place of Origin:: China

Brand Name:: LONGBOW

Weight (KG):: 120

After-sales Service Provided:: Engineers available to service machinery overseas

Name:: round duct grooving machine

Model:: LH-15

Power:: 0.75kw

Weight:: 90kg

Thickness:: 1.2mm

Dimension:: 400*860*960mm

function-01:: round beading and flange

function-02:: roll cutting and beading

Raw Materia:: Galvanized steel sheet

Products Description

Performance Features

This rotary machine is widely used in HVAC duct fabrication system industry, mainly for flanging and beading with special rollers. Also it can make the different work pieces with special rolling wheels, such as for leveling metal sheets, shearing sheets, corrugating plates, etc. Power Swaging machine and Universal Hand beading machine can be selected. There have three sets moulds for flanging including the Swaging machine, if client want any other related moulds, the payment for moulds are additional. Grooving machine, Swaging machine, Beading Machine, Rotary machine

Main Features

1. uses high-quality steel to produce the body of the machine, which makes it have good stability. 2.The part of the beading forming mold are made of low carbon steel, which has a certain thickness, is not easy to blunt, and the effect of the grooving is very good.

Details Images

machine parts

Name: beading forming mold

Material: High alloy tool steel

Original:china

The part of the beading forming mold are made of low carbon steel, which has a certain thickness, is not easy to blunt, and the effect of the grooving is very good.

machine parts

Name: Adjust lever

Operation:Manual rotation
Original:china
By adjusting the movement of the rod position, the stiffener can be pressed at different positions of the round pipe.

machine parts

Name: Adjust screw
Operation:Manual rotation
Original:china

round duct grooving machine with an independent adjustment screw, can be adjusted through the screw to control the depth of compression, simple operation, high efficiency.

machine parts

Name: motor
Power:0.75kw
Original:china
Adopt pure copper wire motor, the failure rate point, the energy consumption is small, the motor side is equipped with forward and reverse adjustment switch, which can control the roll to rotate clockwise and anticlockwise.

Our Campany

Certifications

Packing & Delivery

Related Products

FAQ

1. Are you manufacturer or trading company?

We are manufacturer.

2. What shall we do if don't know how to operate your machine?

We can dispatch our engineers to your country and you can also send your engineers to our factory for learning operation. Besides, there are detailed installation and operating instructions attached, it is very simple. We have telephone and email support at 24 hours per day.
3.How about your machine quality?
LONGBOW company is a mature brand in CHINA,through our 12 years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry And where there are our machines,there are good reputation and terminal user satisfaction.
4. What are your payment terms?

We support T/T, L/C, D/P, D/A, Western Union and so on. TT, 30% in advance, 70% balance before the shipment.
