Quick Details
-
Warranty:
-
1 year, 1 Year
-
Brand Name:
-
"REEJA"
-
Model Number:
-
CWP
-
Place of Origin:
-
Tamil Nadu, India
-
Horsepower:
-
5 HP
-
Cable Length:
-
STANDARD
-
Outlet Size:
-
2 TO 6 INCHES
-
Power:
-
NA
-
motor:
-
NA
-
Product name:
-
CENTRIFUGAL WATER PUMP
-
Certification:
-
ISO9001:2015
-
Pump Type:
-
CENTRIFUGAL TYPE
-
MOQ:
-
1
-
Pump body:
-
Cast Iron Pump
-
Flow rate:
-
16-10 LTR PER SECOND
Quick Details
-
Application:
-
Commercial Buildings, Developing World Water Solutions, Drinking water treatment, Family Homes, Industrial Boilers, Irrigation and Agriculture, Raw Water Intake, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions
-
Pressure:
-
High Pressure
-
Voltage:
-
NA
-
Warranty:
-
1 year, 1 Year
-
Brand Name:
-
"REEJA"
-
Model Number:
-
CWP
-
Place of Origin:
-
Tamil Nadu, India
-
Horsepower:
-
5 HP
-
Cable Length:
-
STANDARD
-
Outlet Size:
-
2 TO 6 INCHES
-
Power:
-
NA
-
motor:
-
NA
-
Product name:
-
CENTRIFUGAL WATER PUMP
-
Certification:
-
ISO9001:2015
-
Pump Type:
-
CENTRIFUGAL TYPE
-
MOQ:
-
1
-
Pump body:
-
Cast Iron Pump
-
Flow rate:
-
16-10 LTR PER SECOND

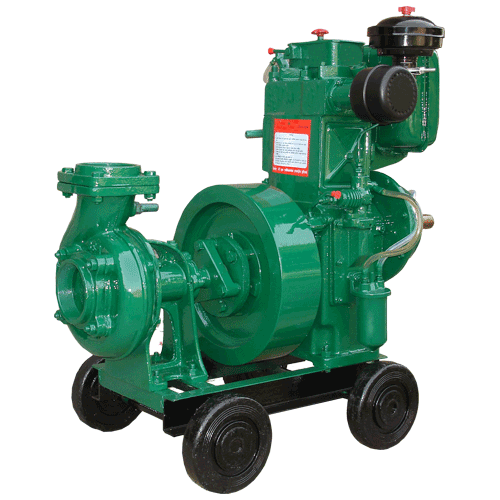

CENTRIFUGAL DIRECT COUPLED / SELF- PRIMING DIESEL WATER PUMP SET:
These water pump set are used to lift water from deep well, lake, ponds, river etc for irrigation these type of pump set are used widely by thousands of Asian & African farmers as the pump and engine design are simple so they are long life and easy reparable and long lasting performance. Main feature is low RPM 1500 so that minimum wear & tear of spares. Engines (Hand Start or electric start optional) between 4 and 28 H.P Direct Coupled to Water Pumps, either Centrifugal or Self Priming Sets should be built on steel base. Stationery on the steel base, and Portable using Rubber Wheels (Coasters), and handle in order to move the set from one place to another. The Engines of those sets are cooled automatically from the pumps, as the pumps sends the cold water through a hose to the Cylinder head as an intake. The outlet side for warm water is the hopper cover. This way the engine is kept cool during the operation. The outlet water is not wasted, because it is used for irrigation also.
STANDARD
PARTS
:
Air Cleaner, Silencer, Wrench Set, Screw Driver, Starting Handle, One Bag, Oil Can , Instruction Manual.
APPLICATIO
N
:
These Pump Sets can be used in Agriculture ,Irrigation, Mining, Forestry Culture, Fishing and other purposes.
SIZE:
Also it is available in various sizes from 1.5”x2.00” to 6”x6” pump .
'REEJA" BRAND WATER PUMPSET WITH PETTER/LISTER TYPE DIESEL ENGINE)
|
PRIVATE ENGINE H.P. |
Engine Rpm |
NO OF CYL. |
PUMP SIZE MM |
HEAD RANGE IN METER |
DISCHARGE LIT./SEC. |
|
|
|
|
4.5 |
1500 |
1 |
65x50 |
10 to 13 |
16 to 10 |
|
|
|
|
5.0 |
1500 |
1 |
80x65 |
11 to 16 |
22 to 14 |
|
|
|
|
6.5 |
1500 |
1 |
80x65 |
9 to 20 |
26 to 15 |
|
|
|
|
7.5 |
1500 |
1 |
100x80 |
9 to 15 |
31 to 14 |
|
|
|
|
8.0 |
1500 |
1 |
100x100 |
9 to 16 |
32 to 14 |
|
|
|
|
10.0 |
1500 |
1 |
125x125 |
7 to 17 |
52 to 29 |
|
|
|
|
6.5 |
1500 |
1 |
125x125 |
9 to 9 |
36 to 20 |
|
|
|
|
8.0 |
1500 |
1 |
150x150 |
6 to 19 |
37 to 22 |
|
|
|
|
20.0 |
1500 |
2 |
100x125 |
14 to 20 |
100 to 180m3/hr |
|
|
|
|
28 |
1500 |
2 |
150x150 |
6-10 |
100L/S |
|
|
|
|
30 |
1500 |
2 |
200x200 |
5-6 |
150L/S |
|
|
|
|
28.0 |
1500 |
2 |
100x125 |
22 t0 20 |
140 to 210m3/hr |
|
|
|
|
28 |
1500 |
2 |
80x80 |
40 |
50m3/h |
|
|
|
|
10 |
1500 |
1 |
80x80 |
26 to 35 |
23 to 6 L/S |
|
|
