Quick Details
-
Engine:
-
GY6
-
Drive Mode:
-
Chain
-
Wheel Size:
-
22*7-10 /22*10-10
-
Oil Tank Capacity:
-
10L
-
Maximum Speed:
-
65km/h
-
Displacement:
-
175cc
-
Brake Type:
-
disk brake
-
Product name:
-

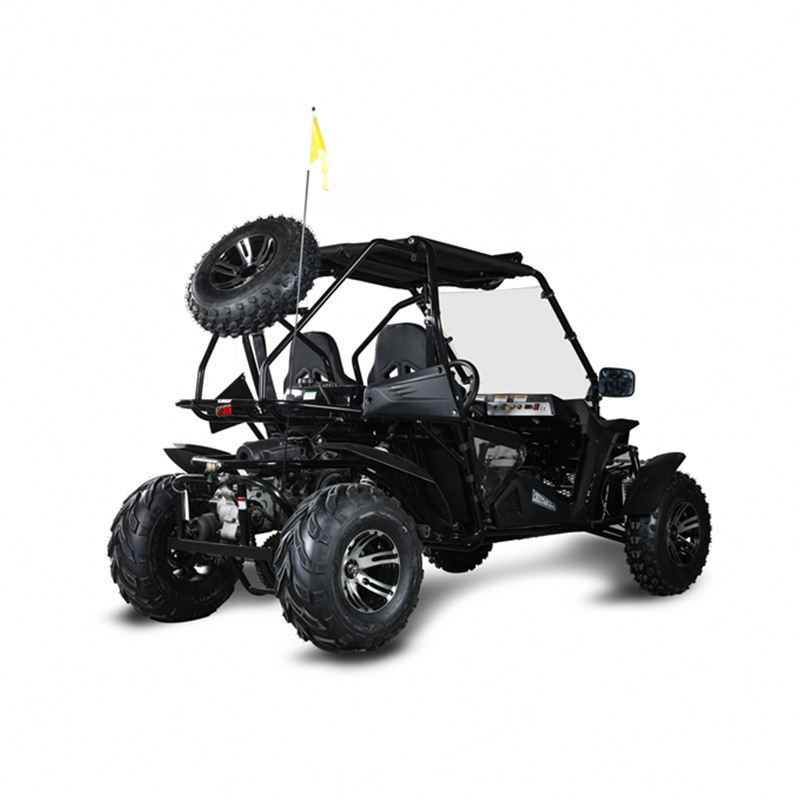

k5 plus go kart
-
Brake:
-
Hydraulic Disc Brake
-
Starting system:
-
Electric Start System
-
Engine type:
-
4 Stoke
-
keywords:
-
TBM GO KART K24 PLUS
-
Cluch:
-
Automatic Cluthc
-
Material:
-
Cold Steel
-
Seat:
-
2 seats
-
Net weight:
-
240 KGS
-
Weelbase:
-
1800mm
Quick Details
-
Engine Capacity:
-
50-200CC
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
TBM GO KART K24 PLUS
-
Engine:
-
GY6
-
Drive Mode:
-
Chain
-
Wheel Size:
-
22*7-10 /22*10-10
-
Oil Tank Capacity:
-
10L
-
Maximum Speed:
-
65km/h
-
Displacement:
-
175cc
-
Brake Type:
-
disk brake
-
Product name:
-
k5 plus go kart
-
Brake:
-
Hydraulic Disc Brake
-
Starting system:
-
Electric Start System
-
Engine type:
-
4 Stoke
-
keywords:
-
TBM GO KART K24 PLUS
-
Cluch:
-
Automatic Cluthc
-
Material:
-
Cold Steel
-
Seat:
-
2 seats
-
Net weight:
-
240 KGS
-
Weelbase:
-
1800mm
| ENGINE INFORMATION: | |
| EPA certificated EPA USA / CANADA MARKET CE certificate for European market | |
| Engine type | GY6 TYPE JL1P57F, 4-STROKE,SINGLE CYLINDER,AIR COOLED JL1P57F |
| Displacement | 149.6 CC |
| Output Max. | 10HP/7500RPM |
| Max torque | 13NM/5000RPM |
| Bore x stroke | 2.26 x 2.28 INCHES (57.4x57.8MM) |
| Max speed | 60KM/H |
| Climbing ability | 12° |
| Ignition | C.D.I. |
| Starting system | ELECTRIC START |
| Battery | YTX12-BS 12V10AH |
| Carburetor Item | PD24J |
| Engine oil | SAE 10W/40 |
| General Information | |
| Clutch | AUTOMATIC CVT |
| Gears | D-N-R,WITH REVERSE |
|
Driveline / Driving wheel
|
CHAIN / DUAL WHEEL DRIVE |
|
Suspension, F / R
|
DUAL A-ARM / THRU-SHAFT WITH DUAL SHOCKS AND DUAL A-ARM |
| Brakes, F / R | DISC |
| Tires, F / R | 22*7-10 /22*10-10 |
| Fuel capacity | 2.6 GAS (10L) |
|
Weight, G.W. / N.W.
|
295 KGS/240 KGS |
| Max load | 500 LBS (227KGS) |
| Dimension Information | |
| Wheelbase | 1800 MM |
| OA L x W x H | 2340*1400*1480 MM |
| Height to seat | 470 MM |
|
Min. ground clearance
|
150 MM |
|
Pedal to seat back
|
920-1060 MM |
|
Shipping information
|
40UNITS / 40HQ |
| package size | 2300*1200*660mm |
1. Q May I get some samples?
A: We are honored to offer you samples for quality and performance confirming.
2. Q: Do you have the products ready for shipment ?
A: No. All vehicles are to be produced according to your order..
3. Q: how long is the delivery time?
A:normally 25 working days to produce an order from MOQ to 40HQ container..
4. Q: is it possible to mix different models in one container?
A: Yes, different models can be mixed in one container.
5. Q: How does your factory do regarding quality control?
A: we start quality control from beginning to end of production .first parts inspection ,then assemble checking , and final adjusting and testing., each products will be carefully checked . we are manufacture and we have final responsible for our products quality .
