Quick Details
-
Brand Name:
-
JIAKE
-
Model Number:
-
CS-A, CS-B, CS-C
-
Weight (KG):
-
1000
-
Power (kW):
-
2.2
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
green
-
Power:
-
380V 50Hz
-
Application:
-
protection fence or isolation fence
-
Material:
-
galvanized wire/steel wire/pvc wire
-
Voltage:
-
Three-phrase 380V/220V
-
Function:
-
make barbed wire
-
Motor Power:
-
2.2kw
Quick Details
-
Wire Diameter (mm):
-
1.6 - 3 mm
-
Production Capacity:
-
20 meters/minute
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
JIAKE
-
Model Number:
-
CS-A, CS-B, CS-C
-
Weight (KG):
-
1000
-
Power (kW):
-
2.2
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
green
-
Power:
-
380V 50Hz
-
Application:
-
protection fence or isolation fence
-
Material:
-
galvanized wire/steel wire/pvc wire
-
Voltage:
-
Three-phrase 380V/220V
-
Function:
-
make barbed wire
-
Motor Power:
-
2.2kw
Barbed wire machine is used to produce barbed wire, which is widely used for safety protection function, national defense, animal husbandry, playground fence, agriculture, expressway, etc.
We always keep the best professional design and manufacturing technology in this barbed wire machine with over 25 years of experience.

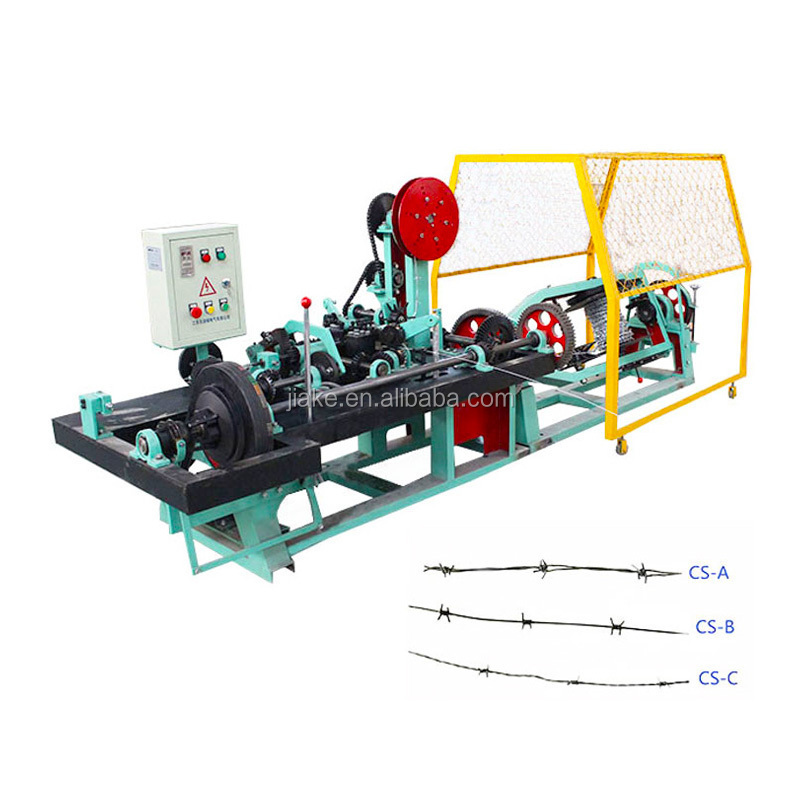

We mainly produce three types of the machine of barbed wire:
|
1. CS-A type: Normal twisted barbed wire machine |
|
| 2. CS-B type: Single strand barbed wire machine | |
| 3. CS-C type: Double strand barbed wire machine |
| Model | CS-A | CS-B | CS-C |
| Strand wire diameter | 1.6-3.0mm | 2.0-3.0mm | 1.6-2.8mm |
| Barb diameter | 1.6-2.8mm | 1.6-2.8mm | 1.6-2.8mm |
| Barb pitch | 3/4/5/6 Inch | 3/4/5/6 Inch | 3/4/5/6 Inch |
| Twisted number | 3-5 | 3 | 7 |
| Raw material | Galvanized steel wire/PVC coated wire/black wire etc. | ||
| Productivity |
70kg/h 20meters/minute |
40kg/h 17meters/minute |
40kg/h 17meters/minute |
| Motor power | 2.2/3kw | 2.2/3kw | 2.2/3kw |
| Voltage | 380V 50Hz or 220V 60hZ or 415V 60Hz or customized | ||
| Total weight | 1200kg | 1000kg | 1000kg |
Attention: we can design the machine according to your wire diameter, wire raw materials, and barb wire.
1. CS-A Type: Normal twisted barbed wire machine
Hot-dipped galvanized low carbon steel wire and low-strength steel wire as material wire.
The machine has consisted of wire wrapped and wire collected device and equipped with a three-wire pay-off.
2. CS-B type: Single strand barbed wire machine
Hot-dipped galvanized low carbon steel wire and low-strength steel wire as material wire.
The machine has consisted of wire wrapped and wire collected device and equipped with a three-wire pay-off.
It adopts advanced electronic counting control. It works smooth, low noise, high safety, save energy consumption, and high efficiency.
2. CS-C type: Double strand barbed wire machine
hot-dipped galvanized low carbon steel wire and low-strength steel wire as material wire.
It has consisted of straight and reverse twisted, thorn formed, and the friction wire collected device, with four wire pay-off.
It uses a straight and reverses twist way for winded the twist. The barbed wire products have no rebound and winding phenomenon, so it is more beautiful compared with ordinary barbed wire.
Hebei Jiake Welding Equipment Co., Ltd. It’s the leading manufacturer of wire mesh machines in China and we always offer ADVANCED WIRE MESH TECHNOLOGY.
Q: Where is your factory located?
A:
Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q: How many years are your company engaged in the wire mesh machines?
A:
More than 25 years. We have our own technology to develop the department and testing department.
Q: Can your company send your engineers to my country for machine installation, worker training?
A:
Yes, our engineers went to more than 100 countries before. They are very experienced.
Q: What's the guaranteed time for your machines?
A:
Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A:
We have much experience with exporting. And we can supply the CE certificate, Form E, passport, SGS report, etc, your customs clearance will be no problem.
