Quick Details
-
Surface Roughness(μm):
-
0.02 μm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MRCM
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
45*34*38cm
-
Weight (KG):
-
47
-
Power (kW):
-
0.25
-
Drill bit grinding range:
-
13- 30mm
-
End mill grinding range:
-
12- 30mm
-
Speed:
-
4400rmp
-
Standard wheel:
-
SDC for carbidematerial
-
Option wheel:
-
CBN wheel for HSS material
-
Usage:
-
can grind 2-flute,3-flute,4-flute
-
Max. Grinding Length:
-
1500mm
-
Power(W):
-
250W
-
Max. Grinding Diameter:
-
30mm
-
Certification:
-
CE ISO
Quick Details
-
Grinding Length(mm):
-
2
-
Table Travel (X) (mm):
-
0
-
Table Travel (Y) (mm):
-
0
-
Surface Roughness(μm):
-
0.02 μm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MRCM
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
45*34*38cm
-
Weight (KG):
-
47
-
Power (kW):
-
0.25
-
Drill bit grinding range:
-
13- 30mm
-
End mill grinding range:
-
12- 30mm
-
Speed:
-
4400rmp
-
Standard wheel:
-
SDC for carbidematerial
-
Option wheel:
-
CBN wheel for HSS material
-
Usage:
-
can grind 2-flute,3-flute,4-flute
-
Max. Grinding Length:
-
1500mm
-
Power(W):
-
250W
-
Max. Grinding Diameter:
-
30mm
-
Certification:
-
CE ISO

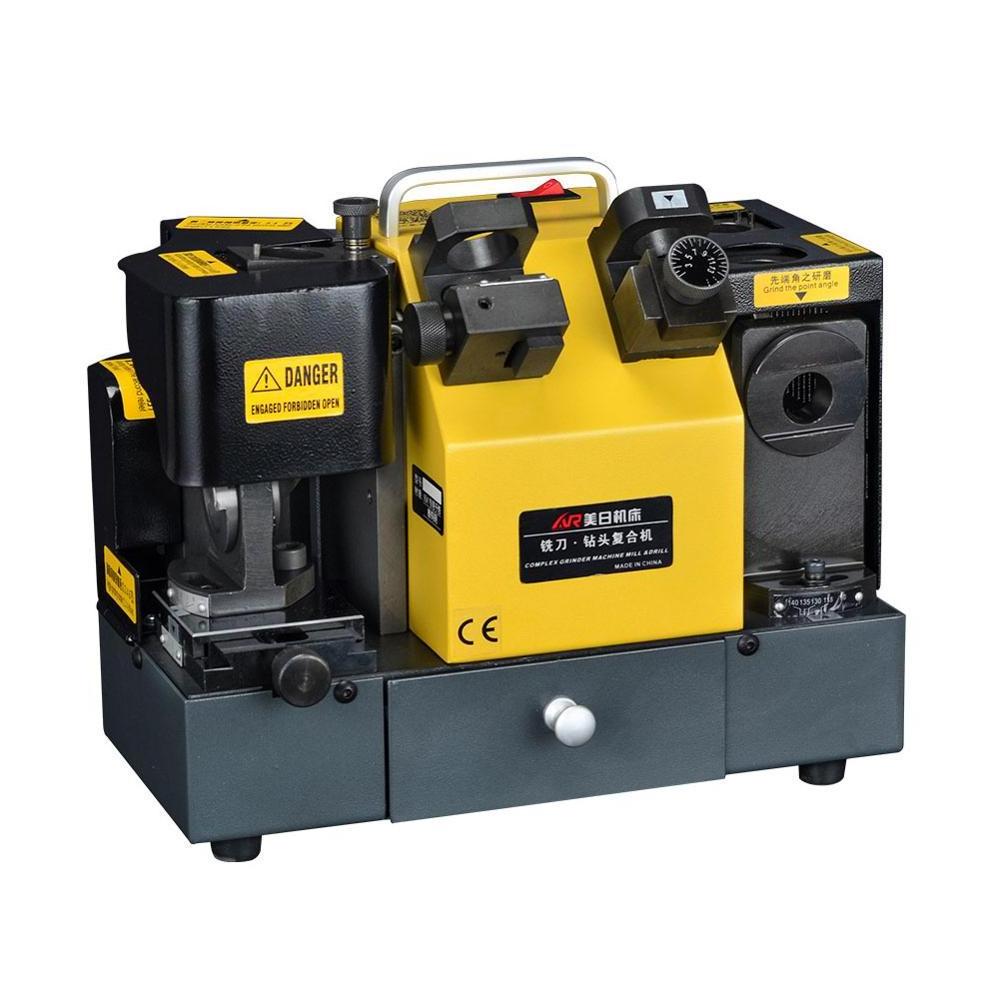

MR- F6 electric button high efficiency bit sharpener
1. One machine has double function, with easy operation and saving cost.
2. With CBN or SDC(optional), long service life.
3. The milling cutter can grind 2-flute, 3-flute, 4-flute, 6-flute and so on.
4. This product has China national patent.
5. Drill bit can sharpen the drill bit front angle, back angle and front angle, you also can control the centre spot at random instend of centre drill, easy vent scraps, relax drill.
6. Complex MR-26D and MR-X5.
| Model: | MR-F6 | |
| End mill | Drill bit | |
| Diameter: | Φ12-Φ30mm | Φ13-Φ30(32)mm |
| Power: | 220V/250W | |
| Speed: | 4400rpm | |
| Point angle: | 0°-5° | 95°(90°)~135° |
| Dimension: | 35*25*30cm | |
| Weight: | 48KG | |
| Standard Equipment: | Grinding wheel :SDC (for carbide)×1 | Grinding wheel :CBN (for HSS)×1 |
|
Nineteen collets: Φ12, Φ13,Φ14,Φ15,Φ16,Φ17,Φ18,Φ19, Φ20,Φ21,Φ22,Φ23,Φ24 ,Φ 25 ,Φ 26 ,Φ 27 ,Φ 28 ,Φ 2 9 ,Φ30 |
||
|
Two collet chucks:
2,4 flutes ×1 piece; 3,6 flutes×1 piece |
Collet chuck:(Φ12-Φ30)×1 | |
| Optional Equipment: | Grinding wheel :CBN (for HSS) | |
| Drill collect chuck:32 | ||
Details:
MR-F6
COMPLEX RE-SHARPENER OF MILL & DRILL
Still use a simple type of operation design, without any grinding experience can also quickly work, whether you are small and medium enterprises, family workshops, personal repair, all can achieve satisfy grinding results!
INSISTING ON ORIGINAL DESIGN FROM CHINA
Two -flute, three-flute,four-flute grinding sample
SMALL SIZE, SUITABLE FOR ANY PLACE TO DO END MILL GRINDING.
EASY TO DO THE MILL SETTING
According the diameter of the mill to adjust the scale, the operation steps are clear.
High precision and high efficiency.
EASY FOR END MILL GRINDING
According the the grinding hole, insert the chuck.
It is very clear to see the grinding position when open the cover of grinding wheel.
|
Grinding wheel ×2 piece |
Collets ×12 pcs (Φ3-Φ14mm) | Collet chuck ×3 piece |
EXPORTING PACKAGE, SAFE AND STABLE
