Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
GW
-
Model Number:
-
Roofing Screws with EPDM washer
-
Screw type:
-
Class 4 Galvanized Self drilling screw roofing screw
-
Head Type:
-
Hex Washer Head
-
Screw Point:
-
Type17
-
Dia:
-
#10, #12, #14
-
Length:
-
16-150mm
-
Sample:
-
Free of charge and will be dispatched in 2-3 days
-
OEM:
-
Available
Quick Details
-
Finish:
-
ZINC, ZINC PLATED, Class 4 galvanised
-
Material:
-
Steel
-
Measurement system:
-
INCH, Metric
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
GW
-
Model Number:
-
Roofing Screws with EPDM washer
-
Screw type:
-
Class 4 Galvanized Self drilling screw roofing screw
-
Head Type:
-
Hex Washer Head
-
Screw Point:
-
Type17
-
Dia:
-
#10, #12, #14
-
Length:
-
16-150mm
-
Sample:
-
Free of charge and will be dispatched in 2-3 days
-
OEM:
-
Available

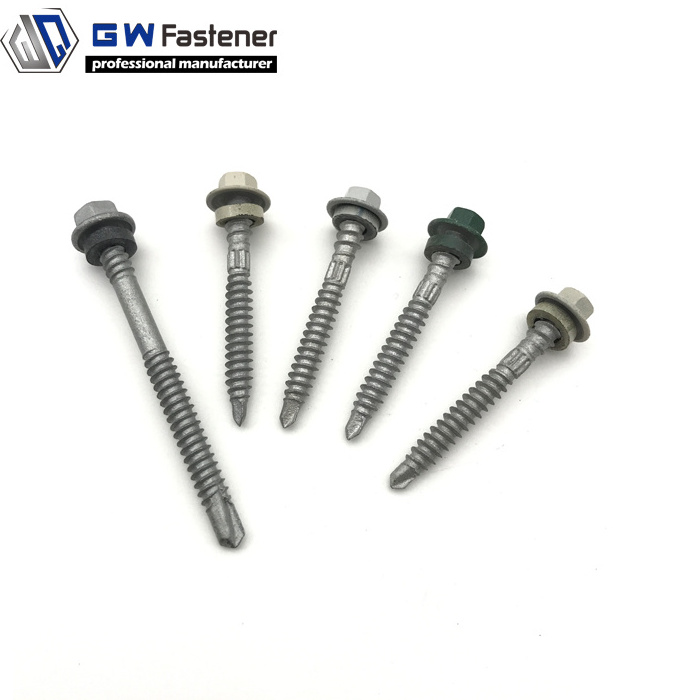

Class 4 Galvanized Hex Head Self drilling screw Roofing Screws with optional Neo washer
SELF DRILLING SCREW POINTS Metal self drillers Sometimes referred to as Teks, SDS or SDM. Used for drilling into thin steel usually from 1.5mm to 6.4mm thick.
Type 17 Sharp point with a cut in the tip flutes specifically for drilling into timber or through thin steel up to 0.75mm. Ideal for screwing roofing to timber frames, purlins or battens
GW FASTENER Roofing Fasteners are coated with Class 4 Mechanical plated zinc/tin composition, produced in Australia to meet AS3566 Part 2-2002.
GW Roofing Fasteners are available in the different colours such as Thunder Grey, Smokey, Maple, Titania, Ironsand, Karaka, Lignite, Grey Friars, Permanent Green, Desert Sand, Bone White, Gull Grey .
Specification:
| Size | Hex Drive Size | Thread Point | Thread | Qty/Box |
| 10-12x25 | HEX 5/16 | T17,Drilling point | Full | 1000 |
| 10-12x30 | HEX 5/16 | Type 17,Drilling Point | Full | 1000 |
| 12-11x25 | HEX 5/16 | T17,Drilling point | Full | 1000 |
| 12-11x40 | HEX 5/16 | Type 17,Drilling Point | Full | 500 |
| 12-11x45 | HEX 5/16 | T17,Drilling point | 30 | 500 |
| 12-11x50 | HEX 5/16 | Type 17,Drilling Point | 33 | 500 |
| 14-10x25 | HEX 3/8 | T17,Drilling point | Full | 500 |
| 14-10x40 | HEX 3/8 | Type 17,Drilling Point | Full | 500 |
| 14-10x50 | HEX 3/8 | T17,Drilling point | 36 | 500 |
| 14-10x65 | HEX 3/8 | Type 17,Drilling Point | 43 | 500 |
| 14-10x75 | HEX 3/8 | T17,Drilling point | 50 | 500 |
| 14-10x90 | HEX 3/8 | Type 17,Drilling Point | 60 | 500 |
| 14-10x100 | HEX 3/8 | T17,Drilling point | 60 | 500 |
| 14-10x115 | HEX 3/8 | Type 17,Drilling Point | 60 | 250 |
| 14-10x125 | HEX 3/8 | T17,Drilling point | 60 | 250 |
| 14-10x150 | HEX 3/8 | Type 17,Drilling Point | 100 | 250 |
| 14-10x175 | HEX 3/8 | T17,Drilling point | 100 | 200 |
| 14-10X200 | HEX 3/8 | Type 17,Drilling Point | 100 | 150 |
| 14-10x240 | HEX 3/8 | T17,Drilling point | 70 | 120 |
| 14-10x300 | HEX 3/8 | Type 17,Drilling Point | 70 | 100 |
