Quick Details
-
Application:
-
Outdoor
-
Design Style:
-
Asian
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Jinruixiang
-
Model Number:
-
TGSG / TGDG
-
Product name:
-
Plastic PP geogrid 35kn unidirectional geogrid roll gravel
-
Length:
-
50m-100m
-
Width:
-
1m-6m
-
Certificate:
-
CE/ISO9001/ISO14001
-
Tensile strength:
-
15Kn/m--50Kn/m
-
Color:
-
Black
-
Keywords:
-
Uniaxial Biaxial geogrid for Road Construction Composite geogrids
-
Function:
-
road construction
-
Elongation at break:
-
13% Max
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Outdoor
-
Design Style:
-
Asian
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Jinruixiang
-
Model Number:
-
TGSG / TGDG
-
Product name:
-
Plastic PP geogrid 35kn unidirectional geogrid roll gravel
-
Length:
-
50m-100m
-
Width:
-
1m-6m
-
Certificate:
-
CE/ISO9001/ISO14001
-
Tensile strength:
-
15Kn/m--50Kn/m
-
Color:
-
Black
-
Keywords:
-
Uniaxial Biaxial geogrid for Road Construction Composite geogrids
-
Function:
-
road construction
-
Elongation at break:
-
13% Max
Plastic PP geogrid 35kn unidirectional geogrid roll gravel
Click "Chat now" / "Send inquiry" to contact supplier
The properties of Biaxial Geogrids, made of Polypropylene (PP) with their square apertures, high tensile strength and optimised geometry of nodes and ribs make them equal to any other similar material. The reinforcing action of PP Biaxial Geogrids lies mainly in confining soil and increasing its shearing resistance by a process of interlocking between the square ribs and the soil. The load dispersal effect from the interlocking mechanism is highly effective and can reduce sub-base thickness and construction cost. PP Biaxial Geogrids can be used with any kind of mechanical fill material. Two aperture size ranges are available for optimum matching with project fill.
| Item | TGSG15-15 | TGSG20-20 | TGSG25-25 | TGSG30-30 | TGSG35-35 | TGSG40-40 | TGSG45-45 |
| Longgitudinal Tensile strength ≥ (KN/m) | 15 | 20 | 25 | 30 | 35 | 40 | 45 |
| Transverse Tensile strength ≥ (KN/m) | 15 | 20 | 25 | 30 | 35 | 40 | 45 |
| Longitudunal Elongation ≤ (%) | 15 | ||||||
| Transverse Elongation ≤ (%) | 13 | ||||||
|
Longitudinal Tensile strength at 2% strain ≥ (KN/m) |
5 | 7 | 9 | 10.5 | 30 | 30 | 30 |
|
Transverse Tensile strength at 2% strain ≥ (KN/m) |
5 | 7 | 9 | 10.5 | 30 | 30 | 30 |
|
Longitudinal Tensile strength at 5% strain ≥ (KN/m) |
7 | 14 | 17 | 21 | 24 | 28 | 32 |
|
Transverse Tensile strength at 5% strain ≥ (KN/m) |
7 | 14 | 17 | 21 | 24 | 28 | 32 |
| Width ≤ (m) | 6 | ||||||

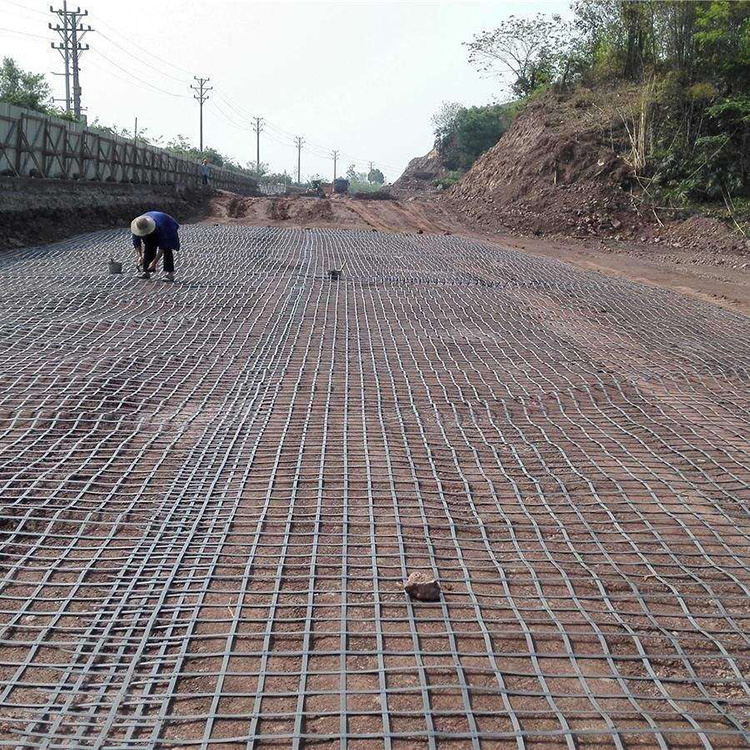

1. Reinforcement and Stabilisation of earth fencing walls, railways, highways and water conservation projects;
2. Reinforcement of road foundations;
3. Retaining walls;
4. Road slope repair and reinforcement;
5. Be used in noise barriers construction.
