1 Axis Single Stage Traverse Robot Arm Robot On Injection Molding Machine

1 Axis Single Stage Traverse Robot Arm Robot On Injection Molding Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $4500

≥3 Sets

US $4350

≥10 Sets

US $4150

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: China

Brand Name:: Runma

Weight:: 190 kg

Dimension(L*W*H):: 2000*1300*1420

Maximum payload:: 3kg

Applied to IMM:: 80~150T

Weight (KG):: 190

Quick Details

Warranty:: 1 Year

Marketing Type:: Hot Product 2022

Vertical Travel(mm):: 700mm

Place of Origin:: China

Brand Name:: Runma

Weight:: 190 kg

Dimension(L*W*H):: 2000*1300*1420

Maximum payload:: 3kg

Applied to IMM:: 80~150T

Weight (KG):: 190

Product Overview

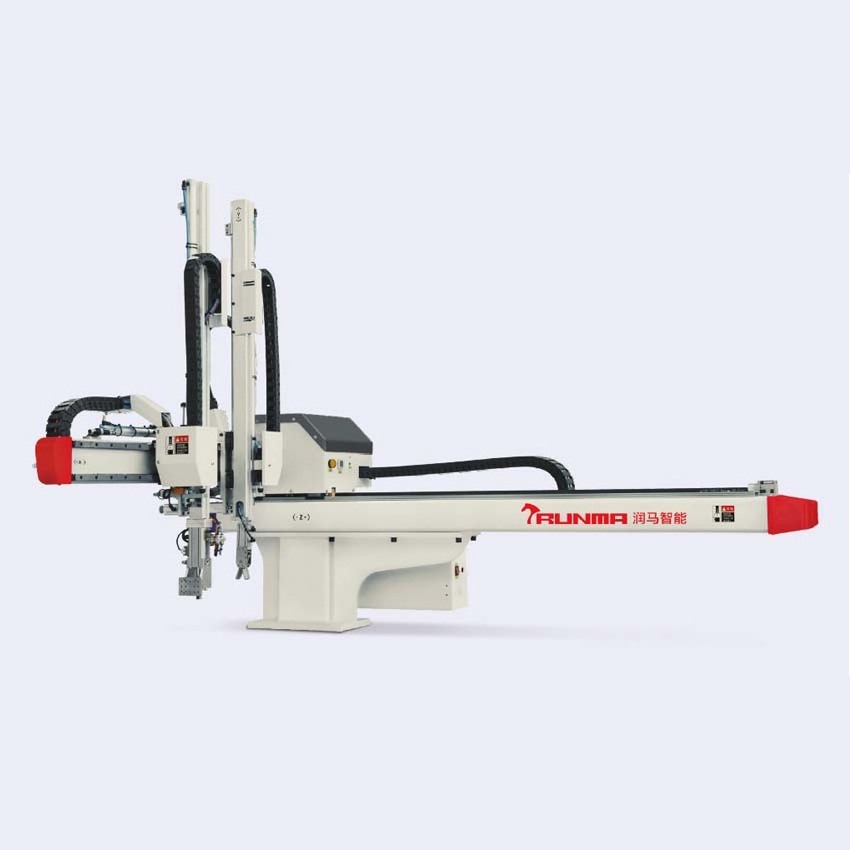

RHD700ID-One axis single stage traverse robot

This series are mainly applied to 80~200 T horizontal injection molding machine to take out the finished product.Single stage arms are adopted,auxiliary arm is added to take out the sprue from 3-plate molds.Traverse stroke is driven by AC servo motor,crosswise and vertical stroke driven by pneumatic pressure.Its stroke and position adjustment can be effected manually.Also the complete set includes standard vacuum and gripper EoAT.

FEATURES AT A GLANCE

Arm type:

Single stage double arms

Color:

Red and creamy white

AC servo:

One axis

Right elevation

Left elevation

Front elevation

PRODUCT SPECIFICATIONS

No	Item	Data
1	Model	RHD700ID
2	Applied to IMM	80~150T
3	Vertical stroke	700mm
4	Crosswise stroke	700mm(main arm) ；120mm(Auxiliary arm)
5	Traverse stroke	1300mm
6	Side-pose rotation angle	90°
7	Max payload(including EoAT)	3kg
8	Take-out time	1.7s
9	Dry cycle time	8.0s
10	Drive mode	Z-AC servo motor X、Y+pneumatic pressure
11	Working pressure(kgf/m2)	5~7
12	Air consumption(nl/cycle)	20
13	Power consumption(kva)	0.6
14	NW(KG)	190
