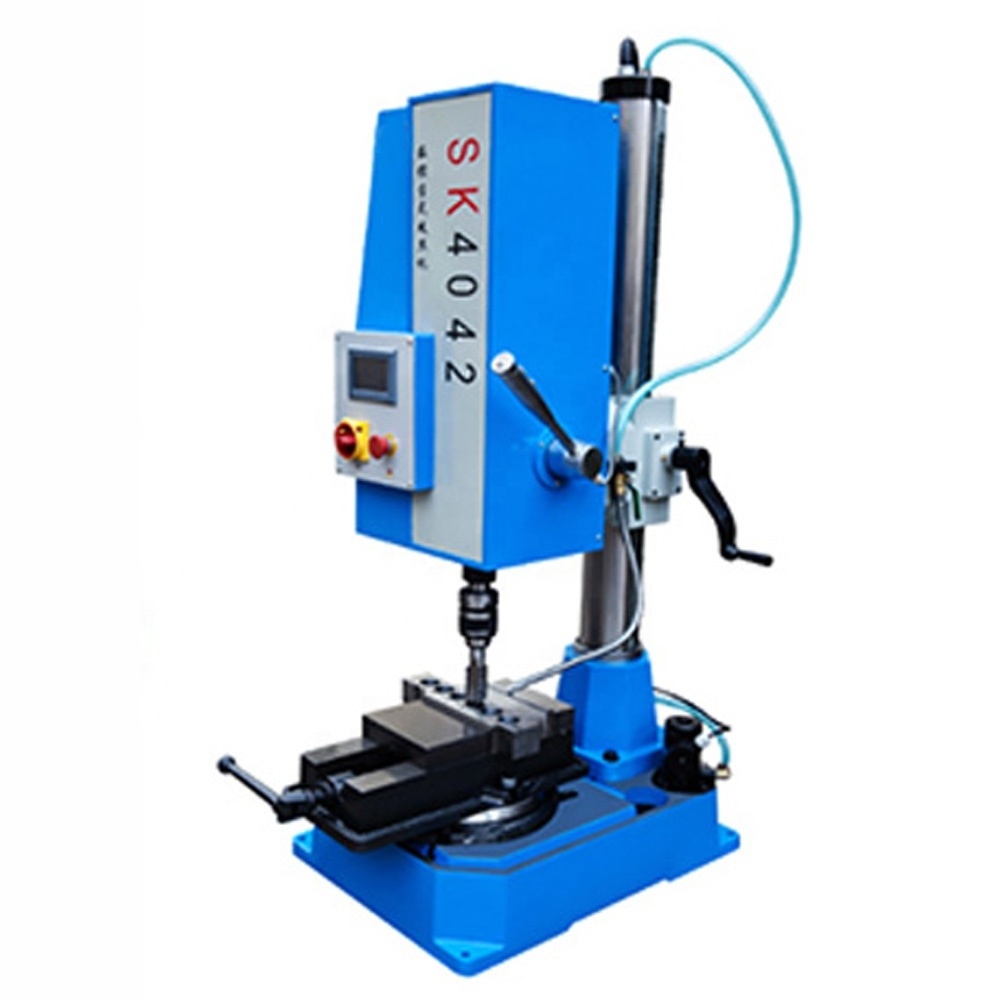

SK4042 CNC automatic drilling tapping machine
SK4042 CNC automatic drilling tapping machine
SK4042 CNC automatic drilling tapping machine
SK4042 CNC automatic drilling tapping machine
SK4042 CNC automatic drilling tapping machine
SK4042 CNC automatic drilling tapping machine

SK4042 CNC automatic drilling tapping machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $3000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Shandong, China
Machine Type:
SK4042 CNC automatic drilling tapping machine
Color:
Blue
Max.tapping capacity:
M42
Diameter of column:
100mm
Spindle travel:
120mm
Distance spindle end to table:
880mm
Distance spindle axis to column:
287.5mm
Spindle taper:
MT4
Spindle speed:
0-95rpm
Dimension of base surface:
470*540mm

Quick Details

type:
CNC tapping machine
Max. Drilling Dia. (mm):
42
Range of Spindle Speed(r.p.m):
0 - 95 rpm
Place of Origin:
Shandong, China
Machine Type:
SK4042 CNC automatic drilling tapping machine
Color:
Blue
Max.tapping capacity:
M42
Diameter of column:
100mm
Spindle travel:
120mm
Distance spindle end to table:
880mm
Distance spindle axis to column:
287.5mm
Spindle taper:
MT4
Spindle speed:
0-95rpm
Dimension of base surface:
470*540mm

SK4042 CNC automatic drilling tapping machine

Product Description

Features:

SK4042 CNC automatic drilling tapping machine design development with market demand, suitable for spare parts of motor, pump, value, made mould, gaspipe, cooking utensils, relay element.

1.Screw tap drive by servo motor, without special system inside machine, high precision thread, avoid bad thread.

2.System can setting tapping torque, with overload protection function, avoid screw tap break.

3.Spindle with decelerate safety device, structure compactly, drive stabilize, deliver big torque.

4.Windon type parametric CNC system, only need to fill out relevant parameters to comlete different pitch thread processing, which is simple to operate.

5.Be visible, displaying the actual work to set torque, the actual thread depth seeting thread depth, the machine speed, the number of qualified tapped screw threads.

6.Can control: can change speed and torsion, can set depth of the process, choose process model, can choose backward chip removal, choose lubrication method.

Specifications:

Model Unit SK4012 SK4016 SK4024 SK4042
Max.tapping capacity mm M10 steel M16 steel M24 M24
Diameter of column mm 70 70 80 100
Spindle travel mm 80 80 100 120
Distance between spindle end to table mm 350 350 580 880
Distance between spindle axis to column generating line mm 218 218 240 287.5
Spindle taper B18 B18 B22 MT4
Spindle speed r/min 0-600 0-370 0-187 0-95
Dimension of base surface mm 274*274 274*274 315*370 470*540
Overall size kg 90 90 120 280
N.W. mm 370*490*810 370*490*810 540*650*1150 590*690*1850
