- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KTN
-
Model Number:
-
QX-B19E150S
-
use for:
-
air conditioner
-
Product Name:
-
air conditioner compressor QX-B19E150S air conditioner wholesale
-
Material:
-
Stainless Steel
-
Color:
-
Black
-
Use for:
-
Air Conditoner
-
Refrigerant:
-
R410
-
Working mode:
-
Cool
-
Function:
-
Cold
-
Usage:
-
Household Appliance
-
Keyword:
-
air conditioner wholesale
Quick Details
-
After-sales Service Provided:
-
Free spare parts
-
Warranty:
-
None
-
Power Source:
-
Electric
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KTN
-
Model Number:
-
QX-B19E150S
-
use for:
-
air conditioner
-
Product Name:
-
air conditioner compressor QX-B19E150S air conditioner wholesale
-
Material:
-
Stainless Steel
-
Color:
-
Black
-
Use for:
-
Air Conditoner
-
Refrigerant:
-
R410
-
Working mode:
-
Cool
-
Function:
-
Cold
-
Usage:
-
Household Appliance
-
Keyword:
-
air conditioner wholesale

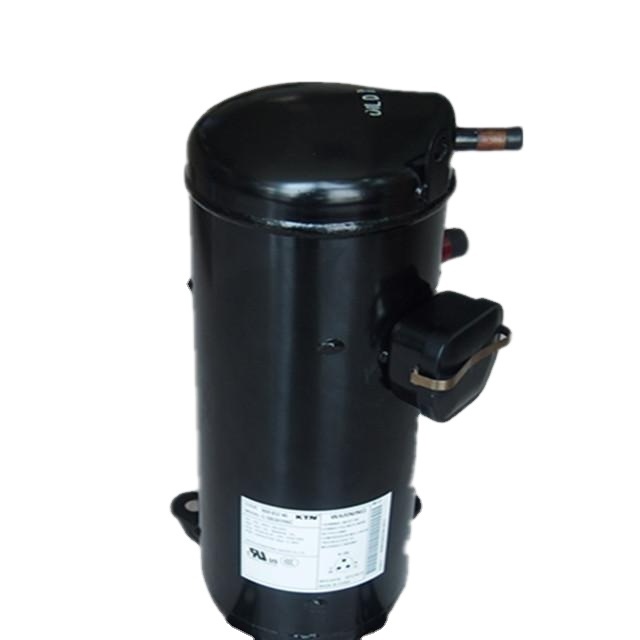

air conditioner compressor QX-B19E150S air conditioner wholesale
Feature:
Broad application range.
Efficiency comparable with semi-hermetic products and far superior than hermetic low temperature compressors.
Smooth operation made possible by the continuous comopression process and reduction of moving parts with scroll compressors.
High reliability resulting from the exclusive scroll desigh.
Space and weight savings:
Characteristics:
High-efficiency
Low-noise Energy-saving
High-quality
Specifications:
| Series | Model | Voltage | Refrigerant | No of cylinders | Displ. | Capacity | Power | COP | Capacitor | Outside Dimensjons(mm) | ||||||
| ml | Btu/h | W | W | W/W | uf/V | A | B | C | D | E | F | |||||
| C44 | QX-B14A130 | 220-240V/50Hz/1PH | R22 | Single | 13.30 | 7502 | 2200 | 721 | 3.05 | 30uF/450V | 250.0 | 251.5 | 94.0 | 48.0 | 12.2 | 9.7 |
| QX-B141C030S | 220-240V/50Hz/1PH | R22 | Single | 14.10 | 8092 | 2373 | 778 | 3.05 | 30uF/450V | 239.0 | 259.5 | 98.0 | 64.0 | 12.2 | 9.7 | |
| QX-B146C030A | 220-240V/50Hz/1PH | R22 | Single | 14.60 | 8355 | 2450 | 803 | 3.05 | 25uF/450V | 239.0 | 259.5 | 98.0 | 64.0 | 12.2 | 9.7 | |
| QX-B16A030 | 220-240V/50Hz/1PH | R22 | Single | 15.71 | 8866 | 2600 | 852 | 3.05 | 35uF/450V | 239.0 | 240.5 | 94.0 | 48.0 | 12.2 | 9.7 | |
| QX-B161C030S | 220-240V/50Hz/1PH | R22 | Single | 16.10 | 9037 | 2650 | 868 | 3.05 | 30uF/450V | 239.0 | 259.5 | 98.0 | 64.0 | 12.2 | 9.7 | |
| -BQX172C030g | 220-240V/50Hz/1PH | R22 | Single | 17.20 | 9719 | 2850 | 934 | 3.05 | 35uF/450V | 243.0 | 261.5 | 98.0 | 64.0 | 12.2 | 9.7 | |
| QX-B19E150S | 220-240V/50Hz/1PH | R22 | Single | 18.30 | 10411 | 3053 | 1000 | 3.05 | 35uF/450V | 254.0 | 277.5 | 106.0 | 75.0 | 12.2 | 9.7 | |
| C48 | QX-C214B030 | 220-240V/50Hz/1PH | R22 | Single | 21.10 | 11867 | 3480 | 1122 | 3.10 | 35uF/450V | 243.0 | 246.0 | 111.0 | 75.0 | 12.2 | 9.7 |
| QX-C217E030g | 220-240V/50Hz/1PH | R22 | Single | 21.70 | 12447 | 3650 | 1177 | 3.10 | 35uF/450V | 267.0 | 265.0 | 111.0 | 75.0 | 12.2 | 9.7 | |
| QX-C222B030g | 220-240V/50Hz/1PH | R22 | Single | 22.20 | 12685 | 3720 | 1200 | 3.10 | 35uF/45DV | 243.0 | 246.0 | 111.0 | 75.0 | 12.2 | 9.7 | |
| QX-C222E030gA | 220-240V/50Hz/1PH | R22 | Single | 22.20 | 12685 | 3720 | 1200 | 3.10 | 35uF/450V | 267.0 | 265.0 | 111.0 | 75.0 | 12.2 | 9.7 | |
| QX-C238E030 | 220-240V/50Hz/1PH | R22 | Single | 23.80 | 13401 | 3930 | 1267 | 3.10 | 35uF/45DV | 267.0 | 265.0 | 111.0 | 75.0 | 12.2 | 9.7 | |
VESTAR INTERNATIONAL INDUSTRY CO.,LTD
Porfile:
Engaging in A/C & Refrigeration market for more than 15years, we would offer you the best product with most professional service.
For the compressor, we have strategic cooperation with SIAM,HIGHLY,DAIKIN,SANYO, HITACHI,COPELAND,DANFOSS. At the same time, we are offering OEM service for LG, GE, Haier & Daikin.
We are the largest compressor agency in the north of China, we sell our products to many regions in the world, such as Europe, America, Middle East and Sandi Arabia etc.
Rotary / Scroll / refrigerant/Screw Compressor/Horizontal compressor
PCB/Inverter Controller Board
Copper Pipe / Connecting Pipe / Fitting Pipe
Heater/Convection Heater/Open Oil Heater/ Duct Heater/Cloth Dryer Heater(TUTCO Brand)
Invensys timer for washing machine & dish-washing machine
