Quick Details
-
Model Number:
-
GQ-ZH-55H
-
Weight:
-
100kg
-
Panel Type:
-
LCD
-
Packing Dimension:
-
190x120x25cm
-
Product Dimension:
-
170x100x10cm
-
Product name:
-
Smart interactive whiteboard
-
Certificates:
-
ISO9001 CE FCC ROHS
-
Surface:
-
Wiredrawing Aluminum+Tempered glass
-
Touch screen:
-
20 Point IR Touch panel
-
Installation Way:
-
Wall mounted (Floor stand Optional)
-
Panel type:
-
LCD
-
Life span:
-
50000hours
-
Application:
-
School Teaching
-
Operating system:
-
Android+win7/10 Optional
-
Type:
-
Whiteboard
Quick Details
-
Panel Size:
-
55 inch
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Kingone
-
Model Number:
-
GQ-ZH-55H
-
Weight:
-
100kg
-
Panel Type:
-
LCD
-
Packing Dimension:
-
190x120x25cm
-
Product Dimension:
-
170x100x10cm
-
Product name:
-
Smart interactive whiteboard
-
Certificates:
-
ISO9001 CE FCC ROHS
-
Surface:
-
Wiredrawing Aluminum+Tempered glass
-
Touch screen:
-
20 Point IR Touch panel
-
Installation Way:
-
Wall mounted (Floor stand Optional)
-
Panel type:
-
LCD
-
Life span:
-
50000hours
-
Application:
-
School Teaching
-
Operating system:
-
Android+win7/10 Optional
-
Type:
-
Whiteboard
Cheap Price Classroom Portable Finger Touch Screen Smart Board Digital LCD Interactive Whiteboard
|
Dual System
|
|
|
Windows 10 OS
|
Intel core i3/i5/i7 option,
Memory 4G/8G/16G option
Hard Disk: 128G/256G/512G/1T option
|
|
Android OS
|
Quad core, 3G RAM, 32G ROM, Android 8.0/9.0 version
|
|
LCD Panel
|
|
|
Size
|
55 inch/ 65 inch / 75 inch / 85 inch / 98 inch Available
|
|
Panel Brand
|
LG、BOE、AU (gauge A screen)
|
|
type
|
TFT-LCD S-PVA
|
|
Resolution
|
3840 × 2160 (UHD) @60hz, 4K UHD screen
|
|
Brightness
|
450cd/m²
|
|
Ratio contrast
|
2000:1
|
|
Visual Angle (horizontal/vertical)
|
178°/178°
|
|
Response time
|
8ms
|
|
Visual area(mm)
|
1649.7(W)×928(H) mm
|
|
Color gamut (NTSC)
|
72%
|
|
Backlight
|
WLED
|
|
display scale
|
16:9
|
|
Response time
|
＜8ms
|
|
Life
|
>60000H
|
|
Infrared touch characteristic
|
|
|
Touch the specifications
|
Infrared touch frame
|
|
glass
|
4mm tempered glass
|
|
Glass transmittance
|
> 88% (higher transmittance depends on glass surface treatment technology such as AR/AG)
|
|
Object induction number (IR)
|
Touch at 20
|
|
Number of infrared induction lines (W D)
|
32767 × 32767
|
|
Positional accuracy
|
More than 90% of the touch area is 2mm
|
|
The interface definition
|
USB 2.0(Full speed)
|
|
Touch the strength
|
Zero pressure touch
|
|
The light resistance
|
It has light resistance
|
|
Induction life
|
6 million times
|
|
The response time
|
＜8ms
|
|
The power supply mode
|
Full duplex usb-powered DC +5V up to 500mA
|
|
Switching power supply
|
|
|
Power consumption (typical value)
|
AC100-240V~(+/-10%),50/60Hz
|
|
Standby power consumption
|
270W
|
|
The power interface
|
1W
|
|
Switching power supply
|
European standard 220V two - phase three - wire system
|
|
Mechanical specification parameters
|
|
|
The net weight
|
52kg
|
|
Gross weight
|
63kg
|
|
Bare machine outline size (W x D x H)
|
1715.8×1024.1×96.8mm
|
|
Package size (W x D x H)
|
1813×1126×190mm
|
|
Shell material (face frame/back shell)
|
Plastic/Sheet metal
|
|
Shell color (face frame/back shell)
|
black
|
|
To protect the glass
|
4mm toughened glass/level 7 earthquake resistant
|
|
Type of installation
|
Supports/wall hangers
|
|
The cooling way
|
Temperature-controlled fan dissipates heat
|
|
The environment
|
|
|
Working temperature
|
0℃~50℃
|
|
Working humidity
|
20%~80%(No condensation)
|
|
Storage temperature
|
-20℃~60℃
|
|
Store humidity
|
10%~90%(No condensation)
|
|
Display mode
|
S-ips, often black display, transmission
|
|
Maximum service time (hours/day)
|
24 hours
|
|
Features
|
|
|
The speaker
|
2×8Ω/5W(built in)
|
|
Support for input mode
|
Stylus writes keyboard
|
|
The attachment
|
|
|
The user manual
|
Manual, warranty card, certificate of conformity
|
|
cable
|
The power cord
|
|
Others (optional accessories)
|
Remote control, base/bracket, WiFi
|

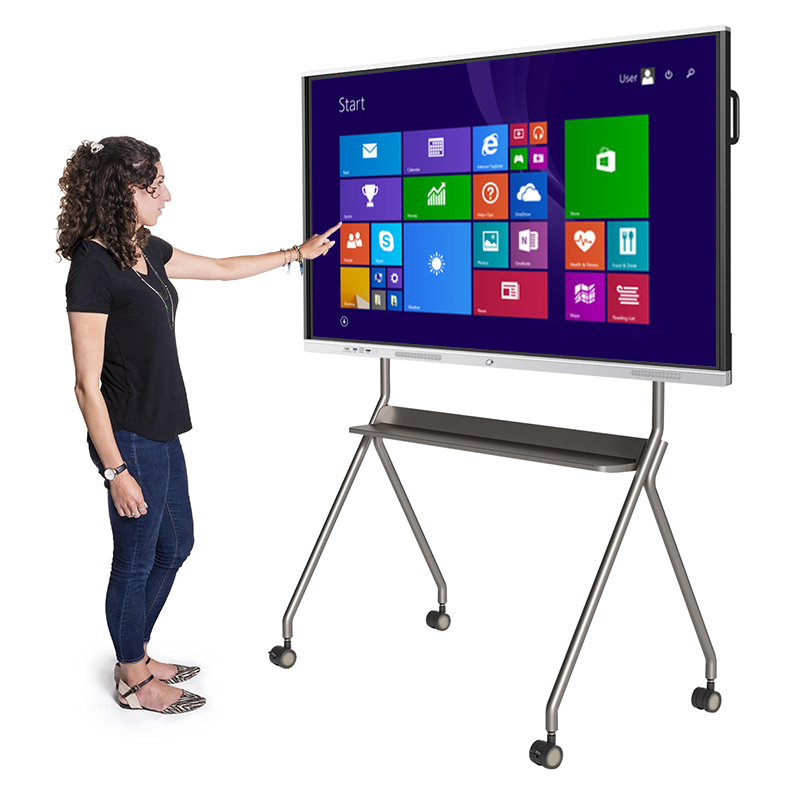

Touch Screen Smart Board
is an interactive TV, it built-in with LCD/LED and touch screen (and PC for optional).
We use the most popular technology infrared touch to achieve interaction between users and the monitor.
All in one touch monitor is also a LCD whiteboard, use the LCD to instead of the projector for image presentation.
Connect with built-in or outer PC, it is a large touch PC, fingers to control and operate the PC to present advertisement,
conference PPT, classroom courses, play movies and etc…
All in one touch monitor is also a LCD whiteboard, use the LCD to instead of the projector for image presentation.
Connect with built-in or outer PC, it is a large touch PC, fingers to control and operate the PC to present advertisement,
conference PPT, classroom courses, play movies and etc…
KINGONE
were founded in 2010 as a R&D and sales company ,is well established and well known for our high quality standards and reliable services .Smart Board passed ISO9001 /CCC/CE?ROHS/FCC?CNAS so on test .Don't worry about the quality, especially we have a special after sales service department to answer your questions
1)Are you a factory or trading company ? What is the MOQ of
touch screen
?
A:Yes, we are factory direct sales and have some items in stock , you can order 1pcs for test.
2) What is the delivery time? Where do you ship of
touch screen
?
A:Generally speaking , the goods can be delivered within 5-7 days for small orders, and the production time about 15 days for more than 10pcs. In addition, our factory is located in Wangniudun, Dongguan. If you have forwarder in Shenzhen or Guangzhou, we can help shipment to your fowarder .
3) Could you provide OEM&ODM service of
touch screen
?
A:of course , including software, packaging, product logo, etc.,consult customer service for more details.
4) What is the warranty period of
touch screen
?
A:Normally it is 1 year, we have aprofessional after-sales service team, specific details can consult customer service.
5)How do you guarantee the quality of your
touch screen
?
A:Our products comply with ISO9001 quality system and CE/FCC/ROHS standards. All our products pass strict QC
inspection in the production process. In particular, export products need to complete 72-hour aging test to ensure no problems before shipment.
inspection in the production process. In particular, export products need to complete 72-hour aging test to ensure no problems before shipment.
6)How do you arrange transportation for
touch screen
?
A:If small sample orders suggest express delivery (7-10days) or air freight (10-15 days), if bulk production advise by sea more favorable , please consult customer service for more details !
