Name: Diesel engine
Brand: deutz
Original: China
Inline, 3 cylinder, four stroke, self suction, direct injection fuel system
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
1year
-
Brand Name:
-
OCEANPUMP
-
Model Number:
-
T-6 T8 T10 T12
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
40hp~200hp
-
Structure:
-
Self-priming centrifugal pump
-
Outlet Size:
-
6~12inch
-
Max Flow:
-
325~1200m3/h
-
Max Head:
-
32m
-
Max.Solids:
-
76.2mm(3"')
-
Inlet flange/Outlet flange:
-
6~12inch
-
Self-priming height:
-
7.6m
-
Power:
-
Diesel engine
-
material:
-
cast iron
-
diesel engine brand:
-
weichai
-
After-sales service:
-
worldwide
Quick Details
-
Application:
-
Irrigation and Agriculture, Mining industry, Wastewater Transport and Flood Control, wastewater treatment
-
Pressure:
-
High Pressure
-
Voltage:
-
12V
-
Warranty:
-
1year
-
Brand Name:
-
OCEANPUMP
-
Model Number:
-
T-6 T8 T10 T12
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
40hp~200hp
-
Structure:
-
Self-priming centrifugal pump
-
Outlet Size:
-
6~12inch
-
Max Flow:
-
325~1200m3/h
-
Max Head:
-
32m
-
Max.Solids:
-
76.2mm(3"')
-
Inlet flange/Outlet flange:
-
6~12inch
-
Self-priming height:
-
7.6m
-
Power:
-
Diesel engine
-
material:
-
cast iron
-
diesel engine brand:
-
weichai
-
After-sales service:
-
worldwide
Products Description
Product Application

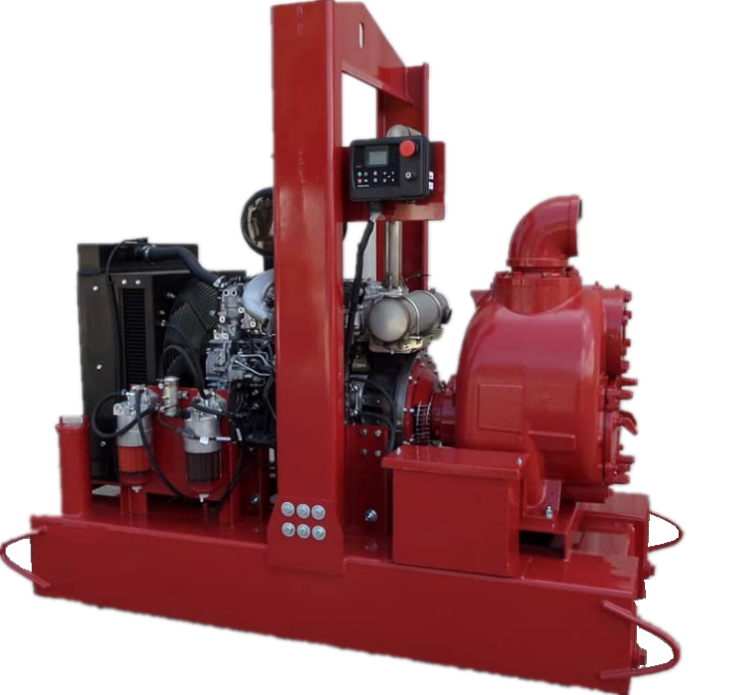

T series self suction sewage pump, self suction drainage pump unit and diesel engine mobile trailer are new international self suction sewage units. The utility model is suitable for outdoor use. The utility model has the advantages of high self suction, no blockage, convenient movement and simple operation without the power supply of the city power supply and the sewage impurities.
|
T-6 PUMP
|
Max Flow
|
325m3/h
|
|
|
|
|
Max Head
|
32m
|
|
|
|
|
Max Solide
|
76.2mm (3'')
|
|
|
|
|
Self-priming
|
7.6m
|
|
|
|
|
Impeller dia
|
314.32mm
|
|
|
|
|
R.P.M
|
1500rpm
|
|
|
|
Material
|
Pump casing
|
Cast iron HT250
|
|
|
|
|
Impeller
|
Nodular cast iron
|
|
|
|
|
Shaft
|
40CR
|
|
|
|
Engine
|
Model
|
D226B-3D
|
|
|
|
|
No. of cylinders
|
3
|
|
|
|
|
Cooling method
|
water-cooling
|
|
|
|
|
Speed control type
|
Mechanical speed regulation
|
|
|
|
|
Start-up mode
|
DC start, and equipped with silicon rectifier charging generator
|
|
|
|
|
Total engine displacement
|
3.12L
|
|
|
|
Trailer
|
Tyre
|
2pcs
|
|
|
|
|
Support foot
|
4pcs
|
|
|
|
|
Tank capacity
|
80L
|
|
|
|
|
load
|
2000KG
|
|
|
Main Features
1. Easy to install and easy to operate, in the control cabinet display period, you can directly view the pump and diesel engine operating parameters
2. Sewage capacity is large, the maximum amount of impurities through 76.2mm
3. Strong self-priming capacity, up to 7.6 meters
4. Design user-friendly, quick to the debris port, the fastest speed can troubleshoot.
5. When the equipment is out of order, the control cabinet will alarm automatically and show the cause of the trouble. Ensure safe operation of equipment.
Detailed Images
Machine Parts
Main Features
Name:
Control cabinet
Brand:
OCEAN
Original:
China
Control the starting and stopping of diesel engine, check the water temperature, oil temperature, oil pressure, speed of diesel engine, etc.. Multi language: English, Spanish, Chinese, Russian, Arabic, polish, etc.
Machine Parts
Name:
Exclude sundries
Brand:
OCEAN PUMP
Original:
CHINA
Loosen the wrench on both sides to remove the blockage in the pump.
Main Features
Name:
Mechanical seal
Brand:
Burgmann
Original:
Germany
The container type mechanical seal adopts wear-resistant alloy and fluorine rubber. The service life is long, and the replacement is convenient.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
