Quick Details
-
Warranty:
-
1 year or 1200 working hours
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
AGESTAR
-
Model Number:
-
GC-625
-
Speed:
-
1500RPM
-
Application Area:
-
School, Hospital, Office building, Hotel, Mine, etc
-
Optional:
-
ATS, Preheater, Remote control, etc
-
Engine:
-
KT38-G
-
Controller:
-
Deep Sea/smartgen
-
Advantage:
-
Fuel saving, Lower noise level, Waterproof
-
Color:
-
Cumins Green
-
SKU number:
-
X0265
-
Alternator:
-
HCI544FS
-
Certification:
-
CE, ISO9001,SONCAP
Quick Details
-
Rated Voltage:
-
400 / 230V
-
Rated Current:
-
902A
-
Frequency:
-
50HZ
-
Warranty:
-
1 year or 1200 working hours
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
AGESTAR
-
Model Number:
-
GC-625
-
Speed:
-
1500RPM
-
Application Area:
-
School, Hospital, Office building, Hotel, Mine, etc
-
Optional:
-
ATS, Preheater, Remote control, etc
-
Engine:
-
KT38-G
-
Controller:
-
Deep Sea/smartgen
-
Advantage:
-
Fuel saving, Lower noise level, Waterproof
-
Color:
-
Cumins Green
-
SKU number:
-
X0265
-
Alternator:
-
HCI544FS
-
Certification:
-
CE, ISO9001,SONCAP
Banner
Products Description

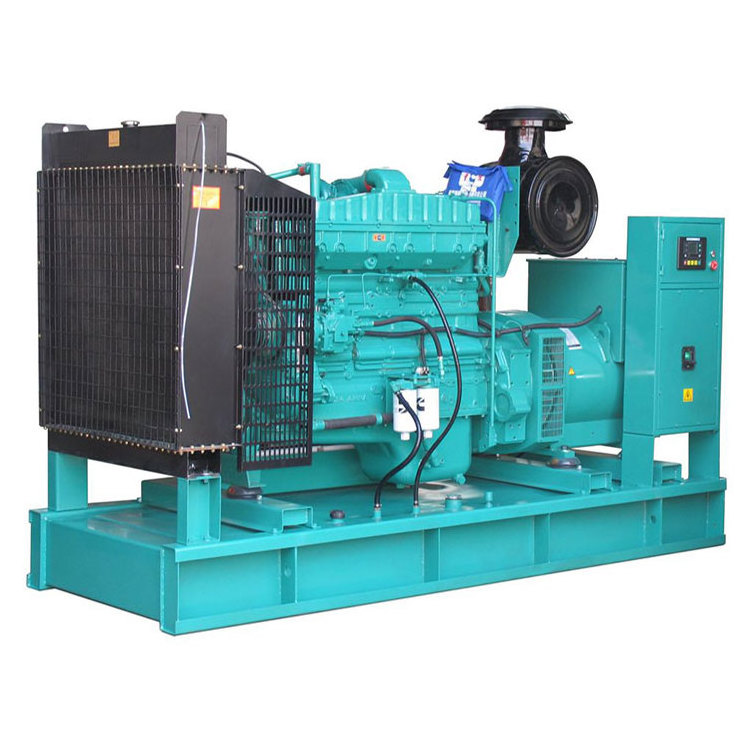

60hz 220v 500kw diesel power generator 625kva power plant with CCEC Cumins engine KT38-G
Cumins engines are reliable & durable, and are provided for Generator OEMs worldwide with a cost-effective and fully integrated G-Drive product. Whether you need standby/emergency, continuous or prime power, with cumins engines, you can rest assured there's a engine manufactured in Cumins engine company to fit your application.
Cumins is a worldwide provider of electrical generators engines and services. Cumins Power Generator products include diesel and alternative-fueled electrical generator sets from 2. 5 to 2,700kW， alternators from 0.6KVA to 30,000KVA， transfer switches from 40amps to 3,000 amps， paralleling switch gear and generator set controls. Cumins Chinese products include B series, C series, L series, M series, NTA855 series and K series.
|
Engine details
|
|
|
|
Engine Model
|
KT38-G
|
|
|
Engine manufacturer
|
CCEC Cumins
|
|
|
Prime Power
|
560KW/700KVA
|
|
|
Type
|
four strokes, waste gas turbine boost,direct spurting type
|
|
|
Cooling way
|
water cooling
|
|
|
Number of Cylinders
|
12 cylinders in line
|
|
|
Cycle
|
4 stroke
|
|
|
Bore×Stroke
|
159mm x 159mm
|
|
|
Displacement
|
38L
|
|
|
Lubricating Capacity
|
135L
|
|
|
Steady speed droop
|
≤1%
|
|
|
Governor
|
Electrical
|
|
|
Fuel Consumption
|
206g/kw.h
|
|
|
Alternator details
|
|
|
|
Alternator Model
|
HCI544FS
|
|
|
Prime Power
|
620KVA/500KW
|
|
|
Standby Power
|
687.5KVA/550KW
|
|
|
Frequency/speed
|
50HZ/1500rpm
|
|
|
Exciter type
|
Single bearing, Brushless, Self-excited
|
|
|
Power factor
|
0.8
|
|
|
Voltage adjust range
|
≥5%
|
|
|
Voltage regulation NL-FL
|
≤±1%
|
|
|
Insulation Grade
|
H
|
|
|
Protection Grade
|
IP23
|
|
|
Phase
|
Three phases
|
|
