- Product Details
- {{item.text}}
Quick Details
-
Power:
-
14kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
COUGARS
-
Maximum Digging Height:
-
4800mm
-
Maximum Digging Depth:
-
3208mm
-
Machine Weight:
-
3810 kg
-
Max Digging Radius:
-
4370mm
-
Rated Speed:
-
3.5km/h
-
Product name:
-
Mini Crawler Excavator
-
Bucket Capacity:
-
0.12m³
-
Keywords:
-
China Small Crawler Excavator
-
Name:
-
3.5 Ton Mini Excavator Digger
-
Feature:
-
Ruber Tracks Hydraulic Digger Excavator
-
Brand:
-
COUGARS
-
Product:
-
3t Crawler Excavator
-
MOQ:
-
1 unit
-
Application:
-
12rpm
Quick Details
-
Operating Weight:
-
3.5T
-
Bucket capacity:
-
0.12m³
-
Engine Brand:
-
Kubota
-
Power:
-
14kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
COUGARS
-
Maximum Digging Height:
-
4800mm
-
Maximum Digging Depth:
-
3208mm
-
Machine Weight:
-
3810 kg
-
Max Digging Radius:
-
4370mm
-
Rated Speed:
-
3.5km/h
-
Product name:
-
Mini Crawler Excavator
-
Bucket Capacity:
-
0.12m³
-
Keywords:
-
China Small Crawler Excavator
-
Name:
-
3.5 Ton Mini Excavator Digger
-
Feature:
-
Ruber Tracks Hydraulic Digger Excavator
-
Brand:
-
COUGARS
-
Product:
-
3t Crawler Excavator
-
MOQ:
-
1 unit
-
Application:
-
12rpm
Welcome to Linyi Monashi Machinery Equipment Co., Ltd.

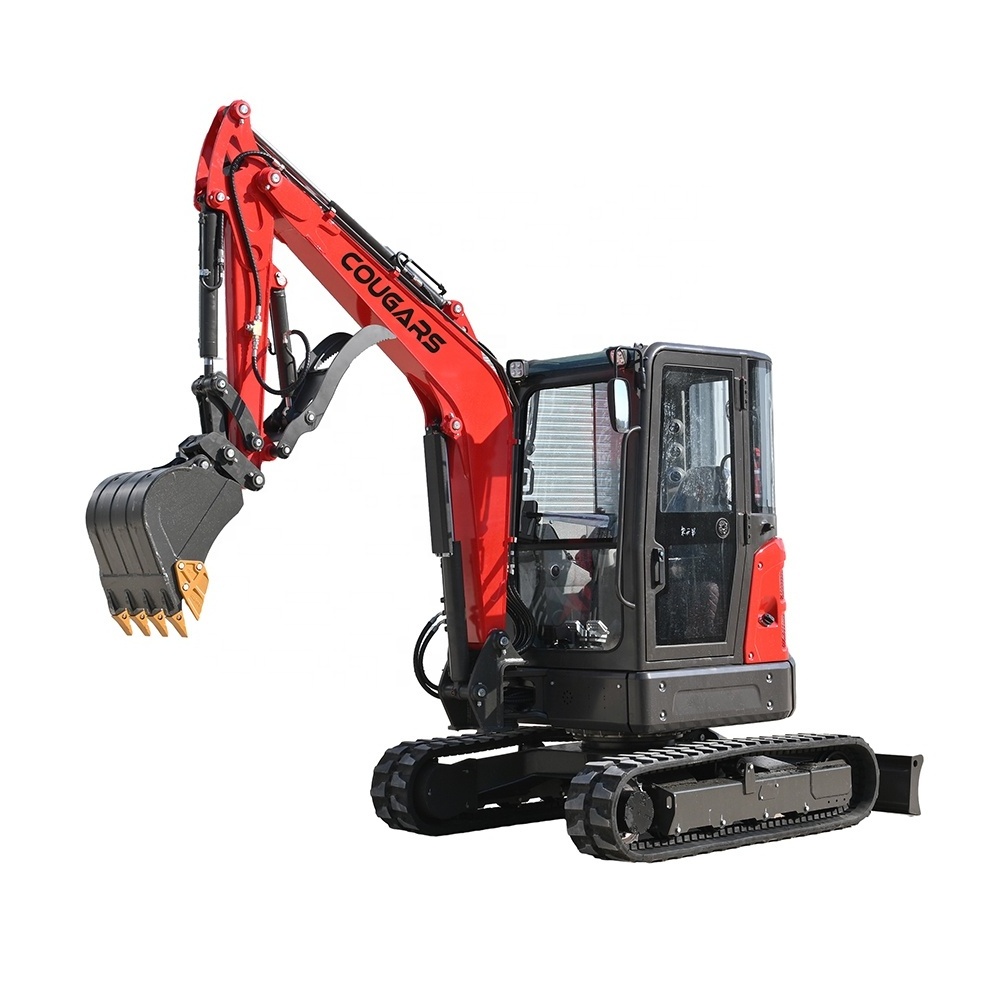

COUGARS excavators are built to make light work of the toughest jobs. Quality components and smart engineering design delivers a high performance excavator package. The excavator can be used with a full range of attachments for applications such as trenching, auguring, rock breaking and bulk materials transfer. This is the ideal machine for small business operators and acreage owners through to large construction companies needing a high quality and capable machine.
Main Parameters
|
Model Number
|
CG35UF
|
|
|
ENGINE
|
|
|
|
Emission Standard
|
Euro 5,EPA4
|
|
|
Make /Model
|
Engine for KUBOTA (D1703)
|
|
|
Power /Rotation speed
|
18.5kw(25HP)@2200rpm
|
|
|
Number of cylinder
|
3
|
|
|
Type
|
In-line,water cooled, 4-stroke ,mechanical pump, normally aspirated
|
|
|
Max.torque
|
97.4N.m/1500rpm
|
|
|
Displacement
|
1.642L
|
|
|
TRACK DRIVING SYSTEM
|
|
|
|
Maximum Travel speed(High/low)
|
4.4/2.4km/h
|
|
|
Width of steel track shoe
|
300mm
|
|
|
Carrier roller(Each side)
|
1
|
|
|
Supporting roller(Each side)
|
4
|
|
|
PERFORMANCE PARAMETER
|
|
|
|
Standard Bucket capacity
|
0.12m³
|
|
|
Swing speed
|
12rpm
|
|
|
Maximum Grade ability
|
58%(30°)
|
|
|
Ground pressure
|
32Kpa
|
|
|
Maximum Bucket digging force
|
30.4KN
|
|
|
Maximum Arm digging force
|
18.2KN
|
|
|
Hydraulic system pressure
|
22.5Mpa
|
|
|
Machine weight
|
3810kg
|
|
|
Boom length
|
2535mm
|
|
|
Arm length
|
1400mm
|
|
|
Fuel tank capacity
|
40L
|
|
|
Hydraulic oil tank capacity
|
44L
|
|
|
Engine oil capacity
|
7L
|
|
|
Radiator capacity
|
3.8L
|
|
|
Final drive
|
2*0.7L
|
|
|
MACHINE SIZE
|
|
|
|
Overall dimension (L*W*H)
|
4915mm*1720mm*2525mm
|
|
|
Axle base(Track length on ground)
|
1670mm
|
|
|
Length of rubber track
|
2154mm
|
|
|
Track gauge
|
1420mm
|
|
|
Minimum Ground clearance
|
295mm
|
|
|
Swing radius at tail
|
860mm
|
|
|
Swing radius at front
|
2538mm
|
|
|
Height of blade
|
350mm
|
|
|
WORKING RANGE
|
|
|
|
Maximum Digging height
|
4800mm
|
|
|
Maximum Dumping height
|
3406mm
|
|
|
Maximum Digging depth
|
3208mm
|
|
|
Maximum Vertical digging depth
|
2957mm
|
|
|
Maximum Digging distance
|
5480mm
|
|
|
Maximum digging distance (on ground)
|
5359mm
|
|
|
Minimum swing radius
|
2530mm
|
|
|
Max.height when min.swing radius
|
3655mm
|
|
|
Maximum Lifting height of blade
|
365mm
|
|
|
Maximum Cutting depth of blade
|
385mm
|
|
|
Boom swing angle(Left/Right)
|
55°/65°
|
|
Products Description
The series 35 COUGARS® Excavator is smooth to operate and delivers exceptional performance combining the efficient diesel engine with powerful hydraulics.
A 2.5T excavator is often said to be the ideal allrounder size as it offers a combination of high break out force and in-turn digging power, yet is still small enough to be portable and easily relocated to job sites. The COUGARS range of excavators deliver performance and value for money.
The COUGARS® brand prides itself on offering exceptional value for money without sacrificing quality and this is achieved by upgrading key components to make the products offered 'better' than the competition. The Series 35 excavator is no exception and comes with an upgraded heavy duty hydraulic oil pump to ensure the longest operating life. The hydraulic pump is the heart of the excavator as it generates the oil pressure to operate the downstream rams and motors. Running a high performance hydraulic pump helps achieve the high performance this machine delivers.
The drive motors and swing motors on the COUGARS® Series 35 excavators are also upgraded to genuine USA Eaton brand which are known across the world for their exceptional performance in demanding services. Having smooth, controllable, drive and swing motors makes this excavator one of the best in its class.
The hydraulic control valves in the COUGARS® excavators have been selected to offer smooth performance for the operator. The joystick controls will be familiar to experienced operators and operation from the comfort of a full weather cabin makes this unit a pleasure to own.
The Series 35 excavators by COUGARS® include as standard a simple and reliable quick hitch design. This design makes it fast for the operator to switch between attachments without having to hammer out pins.
1.Genuine diesel engine for KUBOTA
2.Swing for Eaton and travelling motors
3.Massive 10kN excavating force
4.Includes 400mm Bucket standard
5.Simple Joystick and lever controls
6.Heavy duty steel construction with CNC laser cut build accuracy
7.Full function with traverse, swing, boom swing and dig capabilities
8.Auxiliary hydraulic connections making it compatible with a range of attachments including augers, rock breakers and grapples etc.
9.Simple key start ignition
10.1yr warranty
COUGARS MACHINERY
Exceptional quality at a realistic price, COUGARS® excavators are ideal for the commercial trade user through to the small property owner. The COUGARS® difference is that quality components, sourced from all over the world, are used to deliver the perfect package. Bulk buying power savings are passed onto the consumer, to offer turn key units that compete with the bigger name players, at a realistic price.
Exceptional quality at a realistic price, COUGARS® excavators are ideal for the commercial trade user through to the small property owner. The COUGARS® difference is that quality components, sourced from all over the world, are used to deliver the perfect package. Bulk buying power savings are passed onto the consumer, to offer turn key units that compete with the bigger name players, at a realistic price.
DIESEL ENGINE EXCAVATOR
The 35 series uses a water-cooled diesel engine for Kubota and is very smooth.These engines are nothing but exceptional and are extremely well proven throughout the world. Operating this excavator is very fuel efficient thanks to the high efficiency of the diesel engine. This excavator is ideal for small to medium business looking to make a financial return from owning the machine.
The 35 series uses a water-cooled diesel engine for Kubota and is very smooth.These engines are nothing but exceptional and are extremely well proven throughout the world. Operating this excavator is very fuel efficient thanks to the high efficiency of the diesel engine. This excavator is ideal for small to medium business looking to make a financial return from owning the machine.
HIGH SPECS FROM QUALITY COMPONENTS
HEAVY DUTY EXCAVATOR CONSTRUCTION
COUGARS® excavators are built to the highest specifications with CNC laser cut steel sections making their build and assembly very accurate and ultimately extremely strong. The excavator is built from a proven design that delivers performance and reliability to its owner.
Service and maintenance is simplified with the incorporation of grease injection nipples at pivot points. Access covers to the diesel engine simplifies routine maintenance meaning the excavator is not only simple to operate but also easy to maintain.
Use the power of hydraulics and the heavy duty build quality to achieve the most from the Series 35 excavator.
INSIDE THE CABIN
The cab offers comfort and practicality for the operator. Visibility is great thanks to a open cab. Controls are in a good ergonomic positions to allow comfortable use. Inclusions such as external spotlights allow for operation in a range of conditions.
The cab offers comfort and practicality for the operator. Visibility is great thanks to a open cab. Controls are in a good ergonomic positions to allow comfortable use. Inclusions such as external spotlights allow for operation in a range of conditions.
QUICK COUPLING AND AUXILIARY HYDRAULICS STANDARD
COUGARS® EXCAVATOR USES
COUGARS® excavators have a multitude of uses and experienced operators can achieve more from these machines than the average person would ever believe possible. New operators will quickly become comfortable with the straightforward controls.
For contractors having to dig large holes and trenches, the extra power from the 2.5T machine increases efficiency. Landscaping contractors can rip stumps, lift pipes and excavate bulk soil quickly.
Fencing contractors can power auger quickly into hard ground.
Construction contractors will find endless tasks for a machine of this size.
EXCAVATOR ATTACHMENTS AND ACCESSORIES
The full functionality of these machines is in range of available attachments. COUGARS® excavators feature an quick coupling design meaning you can buy or rent attachments and interchange depending on the job. Additional attachments can always be purchased later to increase the functionality of the machine. Each machines comes fitted with a 400mm bucket. Users can then select any additional attachments as optional extras for their particular application.
The full functionality of these machines is in range of available attachments. COUGARS® excavators feature an quick coupling design meaning you can buy or rent attachments and interchange depending on the job. Additional attachments can always be purchased later to increase the functionality of the machine. Each machines comes fitted with a 400mm bucket. Users can then select any additional attachments as optional extras for their particular application.
BUCKETS FOR TRENCHING AND BULK MATERIALS MOVEMENT
The Series 35 machines can run a range of buckets in varying sizes.
The Series 35 machines can run a range of buckets in varying sizes.
RIPPER ATTACHMENT
The ripper attachment is ideal for loosening hard ground and busting through tough tree roots. The hardened steel ripper tip is reinforced with heavy steel plates to ensure it can handle the tough work.
The ripper attachment is ideal for loosening hard ground and busting through tough tree roots. The hardened steel ripper tip is reinforced with heavy steel plates to ensure it can handle the tough work.
AUGERS FOR DIGGING HOLES
Fit an auger drive and the excavator can quickly dig holes for planting trees, digging foundations and post installation.
Fit an auger drive and the excavator can quickly dig holes for planting trees, digging foundations and post installation.
ROCK BREAKER
Adding a rock breaker attachment allows for large rocks, otherwise too large to be moved, to be broken into manageable pieces. The breaker can be used for busting up old concrete driveways and footpaths so they can be lifted, pushed and maneuvered with ease. The rock breaker utilises the auxiliary hydraulic connections and attaches via the quick coupling at the hitch.
Adding a rock breaker attachment allows for large rocks, otherwise too large to be moved, to be broken into manageable pieces. The breaker can be used for busting up old concrete driveways and footpaths so they can be lifted, pushed and maneuvered with ease. The rock breaker utilises the auxiliary hydraulic connections and attaches via the quick coupling at the hitch.
ACTUATING GRAPPLE
The grapple is like a 4 in 1 bucket for your excavator and allows objects to be gripped, lifted, rolled and maneuvered into position. The Grapple attachment is ideal for forestry type work clearing brush, lifting logs and branches. Attaching the grapple takes a little more time as it utilises the excavator's ram to function and therefore needs pins knocked in and out rather then utilising the quick hitch connection like other attachments.
The grapple is like a 4 in 1 bucket for your excavator and allows objects to be gripped, lifted, rolled and maneuvered into position. The Grapple attachment is ideal for forestry type work clearing brush, lifting logs and branches. Attaching the grapple takes a little more time as it utilises the excavator's ram to function and therefore needs pins knocked in and out rather then utilising the quick hitch connection like other attachments.
EXCAVATOR RAKE
The rake attachment is handy for moving green waste is to be piled for decomposition or burning. The rake can be used for clearing problem vegetation such as lantana.
The rake attachment is handy for moving green waste is to be piled for decomposition or burning. The rake can be used for clearing problem vegetation such as lantana.
DON'T COMPROMISE QUALITY
When working with machinery, equipment quality should not be compromised, cheap copy machines breakdown costing you money. COUGARS only use the highest quality materials making them a machine for life.
When working with machinery, equipment quality should not be compromised, cheap copy machines breakdown costing you money. COUGARS only use the highest quality materials making them a machine for life.
Our Company
We are a comprehensive construction machinery production, sales enterprises, coversan area of 3,000 square meters, the company's products include excavators, loaders,graders and other types of construction machinery. Our products are widely recognizedby customers at home and abroad, and exported to Europe, America, Australia andRussia.
Since the establishment of the company, we have been adhering to the "quality first, customer first, reputation oriented" management principle, and always do our best to meet the potential needs of customers. All steel parts are manufactured in-house. There is complete supervision and control from raw material entry to production contention until final product exit testing. At the same time, by producing the entire machine in one place, we can save a lot of money, enabling us to manufacture high quality wheel loaders and construction machinery for our customers at the lowest price. The perfect production capacity and technology make us fully qualified for the special customized needs of customers in various regions, with the most competitive price to provide customers with the best quality products.
FAQ
1.Are you the manu-facturer or thetrading company?
We are the professiona manufacturer.Our company has passed iSO and CE certification.products are exported to more than 20 countries and regions . We are a comprehensive constructionmachinery production and sales enterprise
2.What is your lead time?
For standard machine, the lead time is within 25-35 days after receiving the down payment
3.What payment terms would you accept?
Both Wire transfer and Credit card payment are available 30% down payment is required inadvance,and the balance shall besettled before shipment.
4.What services would you offer if I buy from you?
Our service agents have been trained in service and repair of machines and know our machines inside and out.
For a good customer experience, the content of pre-sales includes the recommendation on the right products basis on applications, all you have to dois to inform us your needs.
For After-sales, Cougars is also pleased to guarantee next day delivery of any spareparts that may be required. Need new spare parts? No worries, we offer airdelivery for the spare parts which are within guarantee within 5 working days!
5.What components you used?
A machine can only be as good as the components, it is why we send ourtechnicians around the world to find the best for our Cougars equipment. Webelieve there is no substitute for quality and therefore use the finest parts. Usingonly the best not only ensures ultimate reliability and durability, but in turn keepscost of ownership down by increasing service intervals.
6.Do you test all your machines before delivery?
Yes, we have 100% test beforedelivery. All machines come with Product Registration Card andInspection Certificate.
7.What warranty does the new machinery have?
We provide a genuine global wide 1year warranty on machine, as well as a 3 year global wide engine warranty on anyof our Cougars® equipment
8.Why choose you over another supplier?
Unlike many other companies selling several different products, here at Cougars, we specialize in the manufacture of mini loaders and mini excavators.What does this mean for you? lt means that our team of R&D experts.technicians and fabricators can focus solely on mini loaders and mini excavators. Meaning we know the machines inside out. We are constantly improving, testing and consulting our clients already in the field with our mini equipment, to make sure we build the worlds toughest mini equipment.
Notice:
Products depicted in this literature are for demonstration purposes only.Actual products offered for sale may vary in use, design,required attachments and safety features.We reserve the right to improve our products and make changes in specifcations, designs and standard equipment without notice and without incuring obligation.
