1.The innermost layer is EPE pearl cotton film package.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.
5.If you need a wooden box, we will make a wooden box.
- Product Details
- {{item.text}}
Quick Details
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
3kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Blue elephant
-
Voltage:
-
220V/380V (option)
-
Dimension(L*W*H):
-
3800*2300*1900mm
-
Weight (KG):
-
1500
-
Spindle:
-
3kw water cooling spindle of chang sheng
-
Features:
-
CCD camera with Ruida control system
-
Drive and Motor:
-
stepper 450B motor and leadshine 860h driver
-
Control system:
-
Mach 3 control system with wireless handle
-
Working area:
-
1300*2500*200mm
-
Cooling sprayer:
-
Water mist cooling sprayer for Aluminum engraving
-
Vacuum pump:
-
2sets vortex JQT 2.2KW vacuum pump for option
-
Application:
-
pu print board or pvc sheet edge cutting
-
Transmission:
-
helical rack, HIWIN linear guide rail, TBI ball screw
-
Tool sensor calibration:
-
Manual Tool sensor calibration
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
3kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Blue elephant
-
Voltage:
-
220V/380V (option)
-
Dimension(L*W*H):
-
3800*2300*1900mm
-
Weight (KG):
-
1500
-
Spindle:
-
3kw water cooling spindle of chang sheng
-
Features:
-
CCD camera with Ruida control system
-
Drive and Motor:
-
stepper 450B motor and leadshine 860h driver
-
Control system:
-
Mach 3 control system with wireless handle
-
Working area:
-
1300*2500*200mm
-
Cooling sprayer:
-
Water mist cooling sprayer for Aluminum engraving
-
Vacuum pump:
-
2sets vortex JQT 2.2KW vacuum pump for option
-
Application:
-
pu print board or pvc sheet edge cutting
-
Transmission:
-
helical rack, HIWIN linear guide rail, TBI ball screw
-
Tool sensor calibration:
-
Manual Tool sensor calibration

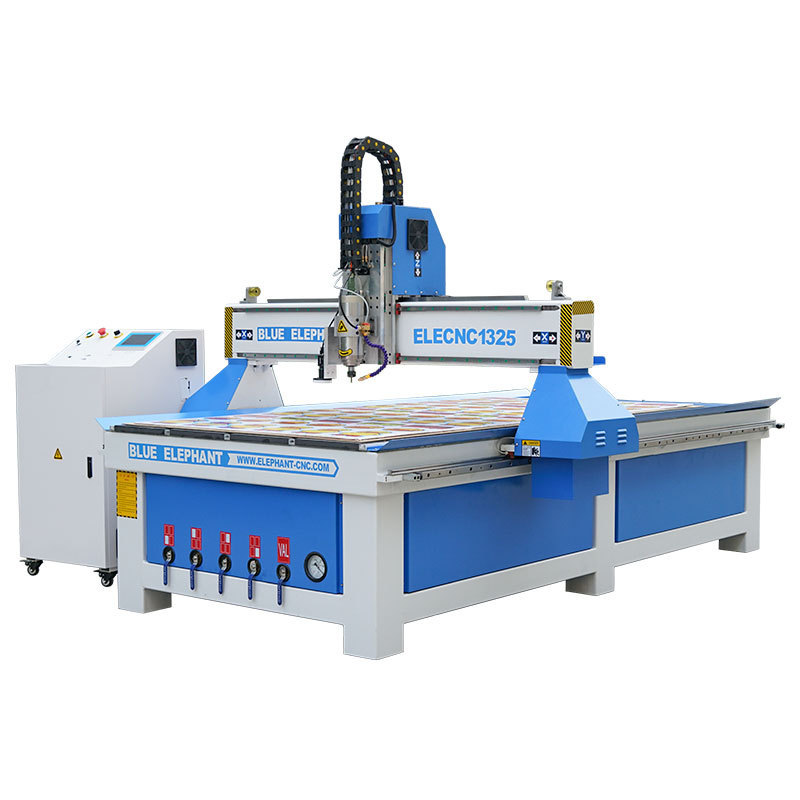

Products Description
Feature
this machine has dual function, it can not only finish carving or cutting of wood acrylic pvc aluminum, but also automatic inspect edge of pu board and automatic cut with CCD camera. it is controlled by mach3 with handle, users can also connect computer to operate machine. so it is special economic cost 3 axis cnc wood router with camera for pu board edge inspection and cutting
this machine has dual function, it can not only finish carving or cutting of wood acrylic pvc aluminum, but also automatic inspect edge of pu board and automatic cut with CCD camera. it is controlled by mach3 with handle, users can also connect computer to operate machine. so it is special economic cost 3 axis cnc wood router with camera for pu board edge inspection and cutting
Parameters
|
X,Y,Z Working Area
|
1300*2500*200mm
|
|
Table Surface
|
T-slot with vacuum working table
|
|
Structure
|
Thicker and bigger welded steel tube frame,gantry moving type
|
|
X, Y Structure
|
X,Y axis with high accuracy helical rack and HIWIN linear guide rail
|
|
Z Structure
|
Taiwan TBI ball screw 2510# for Z axis and HIWIN linear guide rail
|
|
Spindle Power
|
Changsheng 3kw water cooling spindle,24000rpm
|
|
Drive Motors
|
Chines stepper 450B motor and leadshine 860h driver
|
|
Inverter
|
3.7 kw Fuling inverter
|
|
Control System
|
Mach 3 control system with wireless handle
CCD camera with RD control system
|
|
Control box
|
Independent control box
|
|
Vacuum pump
|
With 2sets vortex JQT 2.2KW vacuum pump with Muffler for option
|
|
Cooling sprayer
|
Water mist cooling sprayer for Aluminum cutting or carving
|
|
Tool sensor calibration
|
Manual Tool sensor calibration
|
Sample & Application
WoodFurniture Industry:
Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates,cupboarddoors, interior doors, sofa legs, headboards and so on.
Advertising Industry:
advertising identification, sigh making, Acrylic engraving and cutting, crystal word making,blaster molding,and other advertising materials derivatives making.
Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand,plastic sheeting,PVCpipe, wooden planks and other non-metallic mold.
Relief Sculpture and 3D Engraving & Cylindrical object.
Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand,plastic sheeting,PVCpipe, wooden planks and other non-metallic mold.
Relief Sculpture and 3D Engraving & Cylindrical object.
Packing&Shipping
Packaging Details
Customer feedback
Guarantee and After-sale service:
1. 12 months warranty for the whole machine.
2. Technical support by phone, email or WhatsApp/Skype around the clock.
3. Friendly English version manual and operation video CD disk.
4. Engineer available to service machinery overseas.
1. 12 months warranty for the whole machine.
2. Technical support by phone, email or WhatsApp/Skype around the clock.
3. Friendly English version manual and operation video CD disk.
4. Engineer available to service machinery overseas.
Company Introduction
Jinan Blue Elephant CNC Machinery, the professional cnc router and laser cutting machine manufacturer in China, include ATC CNC router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Laser Cutting and Engraving Machine and so on, which have passed the
CE, SGS, ISO9001 etc
. Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.
